Most lighting money is wasted before anything is ordered, in the layout. These are the services that get the specification right first, and the photometric layout is free on request. Browse below, or send us your dimensions.

Browse All Photometric Design and Consulting

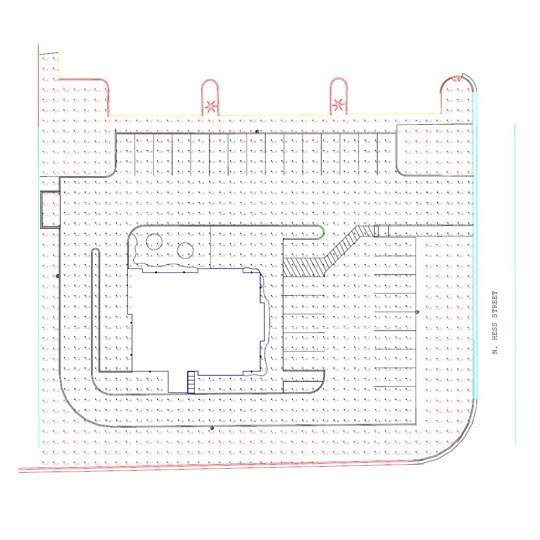

Photometric Analysis

Photometric Analysis from LED Spot.

What Is a Photometric Design and Why Does It Matter?

A photometric layout is a model of your space with the fixtures placed on it, calculating the light level at every point on the surface. It shows the average level, the uniformity between the brightest and darkest points, and where light spills past the property line.
Without one you are guessing at fixture count, pole height and spacing. With one you know the foot-candle reading at any point before a single fixture is ordered, which is the difference between lighting a lot once and lighting it twice. Free photometric design is available on request.

How Does the Low Voltage Wire Calculator Work?

Voltage drop is the most common fault in landscape lighting. The further current travels and the thinner the cable, the more voltage is lost, and the fixtures at the end of a run go dim and shift warmer in color.
The free calculator takes the run length and the connected load and tells you the cable gauge needed to keep the drop inside tolerance, so you size the run before you buy the cable rather than after you have dug the trench.

What Does a Commercial Energy Audit Cover?

An energy audit looks at what your existing lighting draws, how long it runs, and what a modern equivalent would draw doing the same job. That comparison is what turns a retrofit from an expense into a payback calculation.
It also surfaces the fixtures that are failing, badly placed or lighting nothing useful, which are often the quickest wins on a site.

Can You Just Answer a Question?

Yes. Ask a Lighting Expert puts your question in front of someone who specifies these every day, rather than a search box.
Lead with the application, the dimensions and any constraints such as mounting height, existing poles or a local ordinance. That gets a far more useful answer than a catalog number would.

Frequently Asked Questions

Yes. Free photometric design is available on request. Send the dimensions of the space and we will model fixture placement and show the light levels across the surface.

The dimensions of the area, what it is used for, any existing pole or mounting positions you need to keep, and any local ordinance that applies. Photos or a site plan help considerably.

It depends on the size and complexity of the site and on how complete the information is when it arrives. Sending the dimensions and constraints up front is the biggest factor in turnaround.

It sizes the cable for a low voltage run. Enter the run length and the connected load and it tells you the gauge needed to keep voltage drop inside tolerance so the fixtures at the far end are not dim.

A look at what the existing lighting draws, how long it operates, and what a modern equivalent would use doing the same job, which gives you a payback comparison rather than just a quote.

Yes. Send it over with the space dimensions and we can review the fixture selection and the resulting light levels.

Free Photometric Design

Send us your dimensions and we will model fixture placement and light levels at no charge, before you commit.
