Tennis Court Lighting

Complete LED lighting packages for residential and commercial tennis courts, with free photometric design on request.

Home › Lighting Products › Athletic & Sports Field Lighting › Tennis Court Lighting

A tennis court is lit for one thing: keeping a fast yellow ball visible against the sky and the surface at the same time. That takes even light across the full court, poles placed outside the play area, and optics that keep glare out of a player’s sightline on serves and overheads. LED Spot’s tennis court lighting packages put all of that in one order.

Shop Tennis Court Lighting

Showing all 5 results

About Our Tennis Court Lighting

LED Spot’s all-inclusive tennis court lighting packages make simple lighting solutions for residential and commercial courts. Whether it’s single or double courts, our tennis lighting kits are designed to illuminate playing areas with smooth, clear lighting while reducing off court glare.

How Many Poles Does a Tennis Court Need?

Most single courts are lit from the sides, with poles set back from the sidelines so nobody plays into a pole shadow. The count depends on the level of play and the mounting height available. Taller poles cover more surface per fixture and cut glare because the source sits further above the sightline, so a taller layout often uses fewer poles than a shorter one.
Court orientation matters too. Side lighting keeps the brightest part of every beam out of the service sightline at both ends. We model your exact pad dimensions in a free photometric layout so pole count, height and aiming are settled on paper before any concrete is poured.

What Makes Tennis Lighting Different From Area Lighting?

An area light only has to put light on the ground. A tennis fixture has to light the air the ball travels through, which is why uniformity and vertical illuminance matter more than raw output. A court that is bright at the net and dim at the baselines plays badly no matter what the average reads.
Our packages pair sports optics with crossarms and poles matched to the fixture weight and wind load, so the system arrives as one coordinated kit rather than parts you have to reconcile.

Can You Relight an Existing Court?

Often, yes. If the original poles are sound and positioned correctly, swapping older HID fixtures for LED keeps the infrastructure and transforms the light. The pole has to carry the new fixture’s effective projected area under local wind loading, so pole condition and rating get checked first.
If the old layout was wrong, new fixtures on bad positions will not fix it. Send us photos and dimensions and we will tell you honestly whether a retrofit or a new layout serves the court better.

Frequently Asked Questions

Pole height is set by the court size and level of play, not preference. Taller poles reduce glare and can lower the pole count. A free photometric layout shows the right height for your pad before you order.

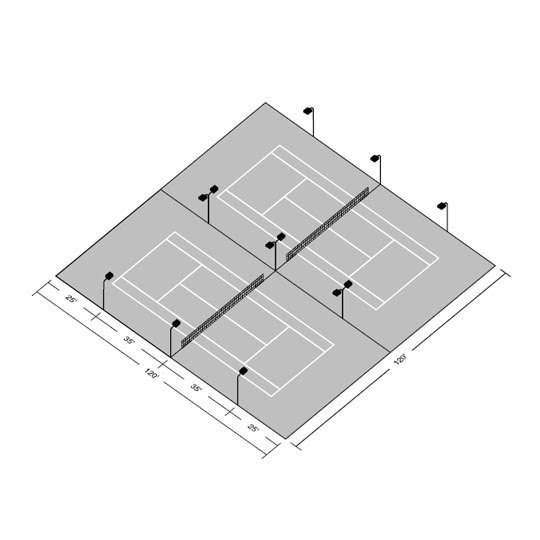

Shared poles between courts are common in multi-court layouts and can lower the total pole count. Send both pad dimensions and we will model the shared layout.

Full cutoff sports optics and correct aiming keep light on the court instead of spilling into adjacent property, which matters for residential courts and for facilities under a local lighting ordinance.

Kits are built as matched packages: fixtures, poles, crossarms and mounting hardware sized together. Individual fixtures are available when poles already exist.

Cooler white in the neutral to cool range reads crisp against the ball and surface. We will recommend a specific fixture based on your court and level of play.

Free Photometric Design

Send us your dimensions and we will model fixture placement and light levels at no charge, before you commit.

Ready to Get Started?

Request a quote on any item, or call and talk it through with someone who specs these every day at (281) 972-5006.
