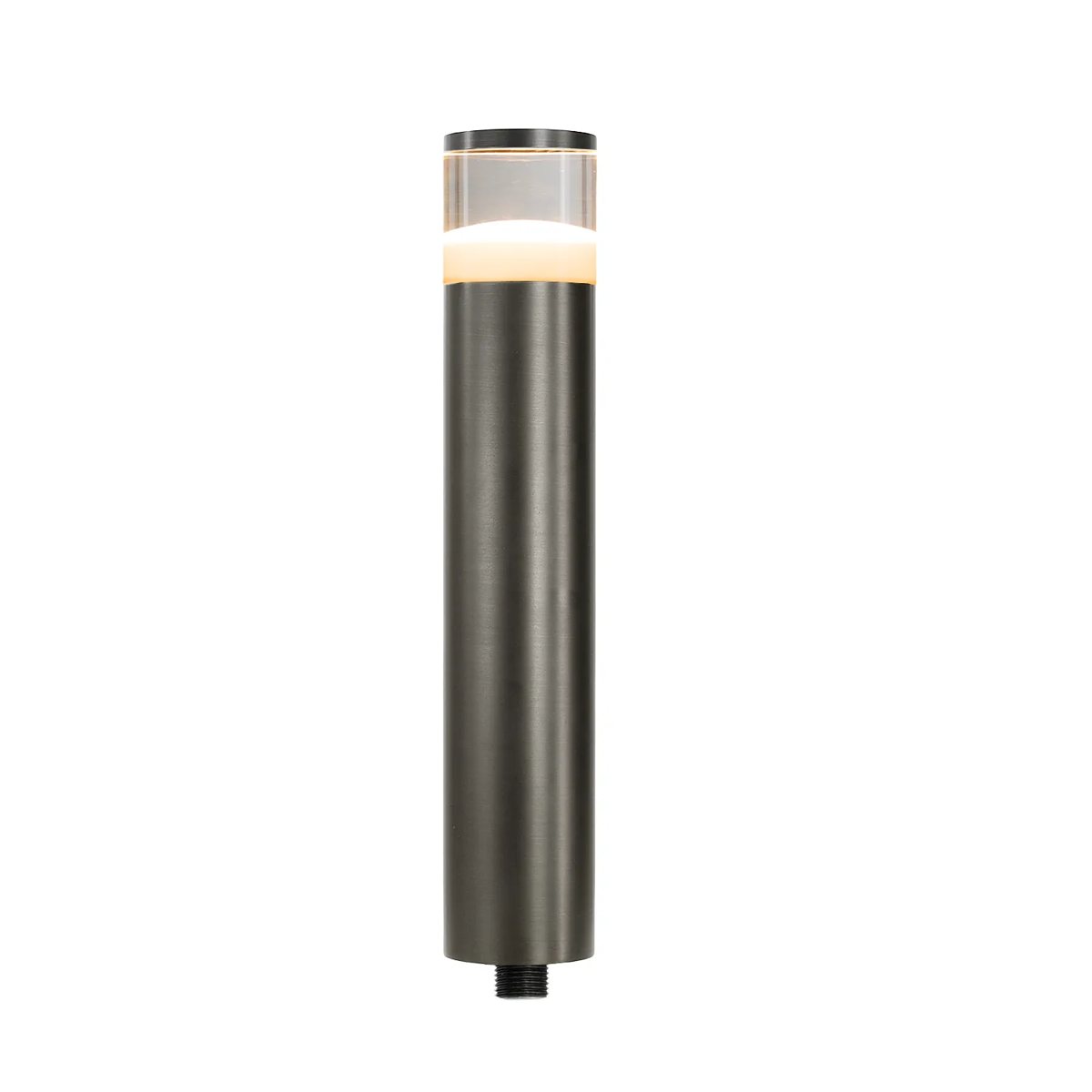

Pathways, building entries and property perimeters that need a taller marker than a path light are where bollards earn their place. The CLS ZHD01 is a cylindrical die-cast brass bollard 13.78 inches tall, with a 2.91 inch solid acrylic top that spreads light all the way around the post.
Where does a 360 degree bollard fit better than a path light?
Choose it for open areas where light should spread evenly in every direction, such as a walk intersection, a courtyard edge or a perimeter line seen from several sides. The acrylic diffuser gives a soft wash rather than a hard pool.
What lamp drives it?
The ZHD01 houses an MR16 GU5.3 socket with retaining clips that accepts an MR16 LED up to 8 watts or a halogen up to 50 watts. The lamp sets the color temperature and output, and the fixture runs on 9 to 17 volts AC or DC depending on the lamp.
How is pricing handled?
Pricing for this bollard is by quote. Send your quantities and site details and LED Spot will respond with a quote.
Specifications
| CLS part number | ZHD01 |
|---|---|

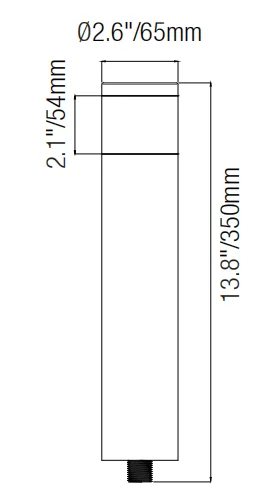

| Overall height | 13.78″ (350 mm) |

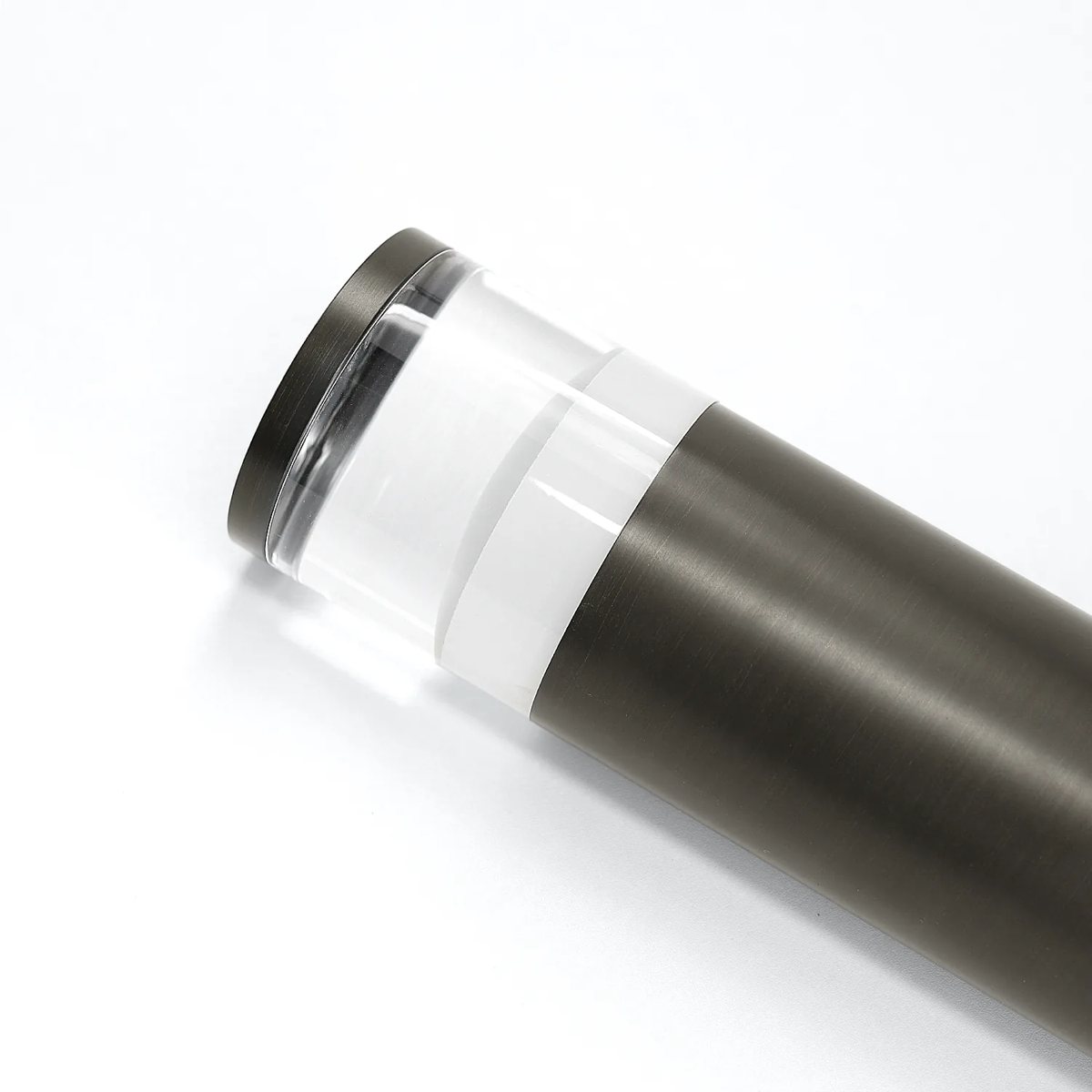

| Top | Solid acrylic, 2.91″ (74 mm) |
| Construction | Die-cast brass |
| Finish | Antique Bronze |
| Socket | MR16 GU5.3 ceramic socket with retaining clips |
| Lamp | MR16 LED up to 8W or halogen up to 50W |

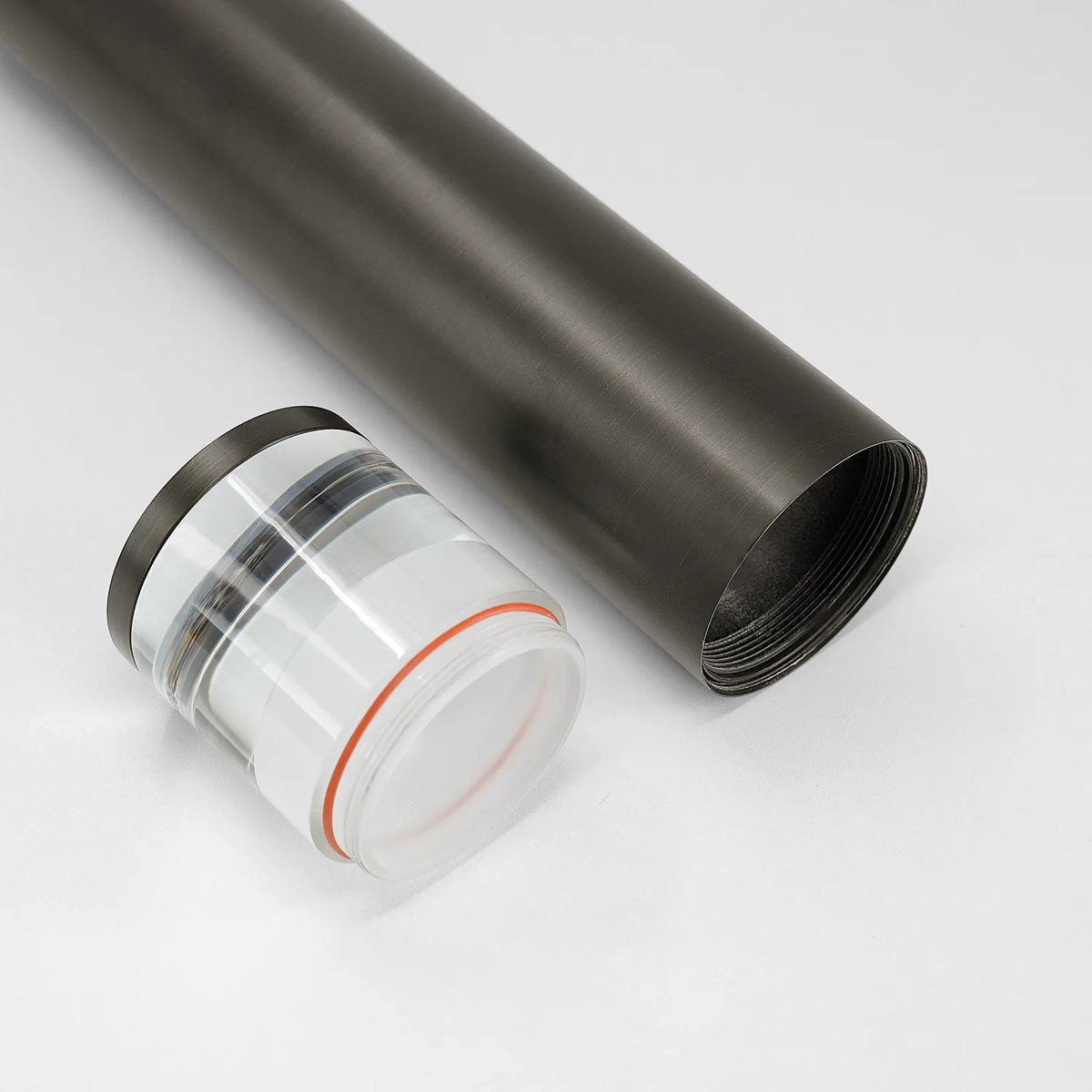

| Lens | High impact UV stable acrylic diffuser |
| Input voltage | 9 to 17V AC/DC (per MR16 lamp) |
| IP rating | IP65 |

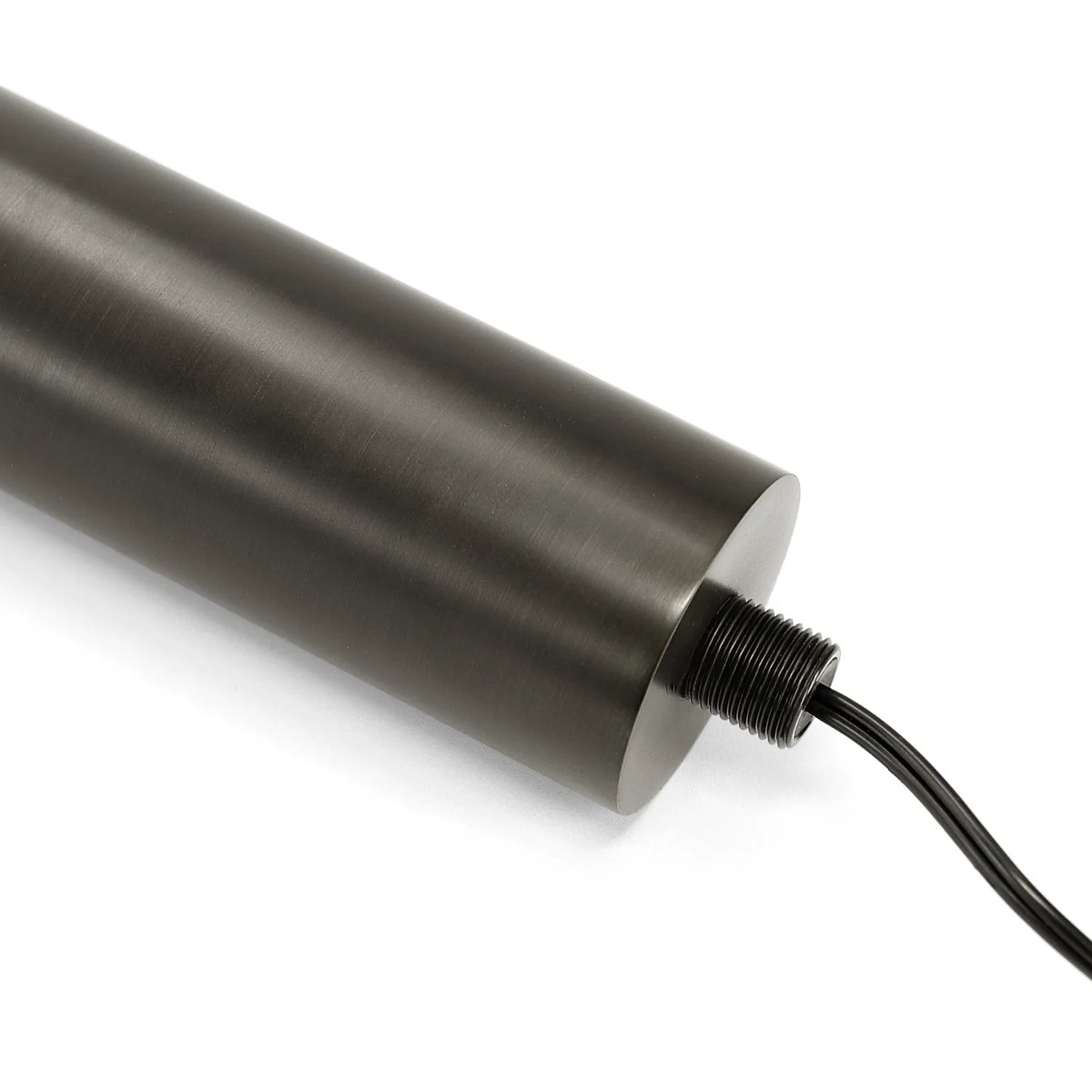

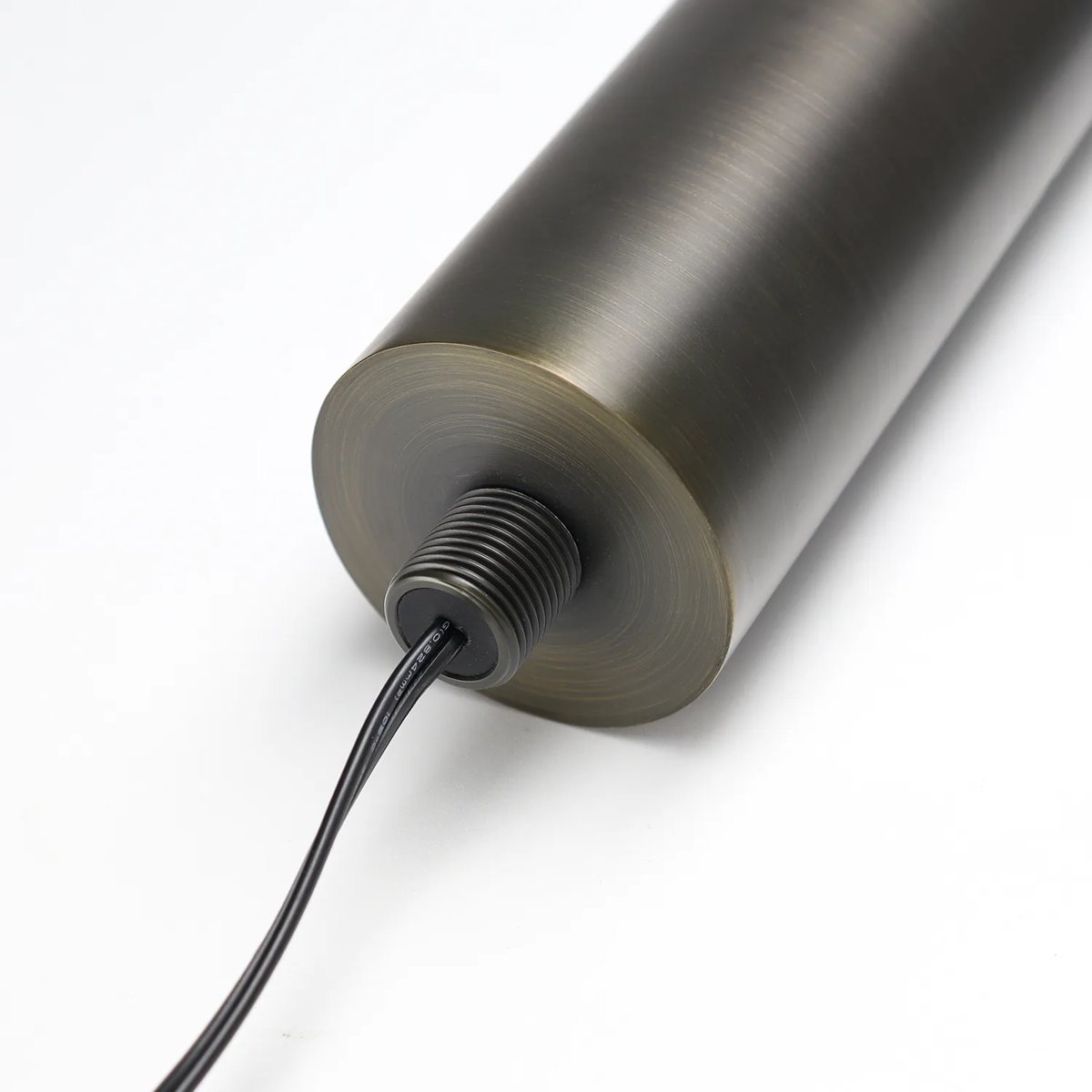

| Lead wire | 72″ pre-stripped 18 AWG direct burial |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare our bollard lighting styles, then request a quote for your project. Our photometric design service can help set bollard spacing.
