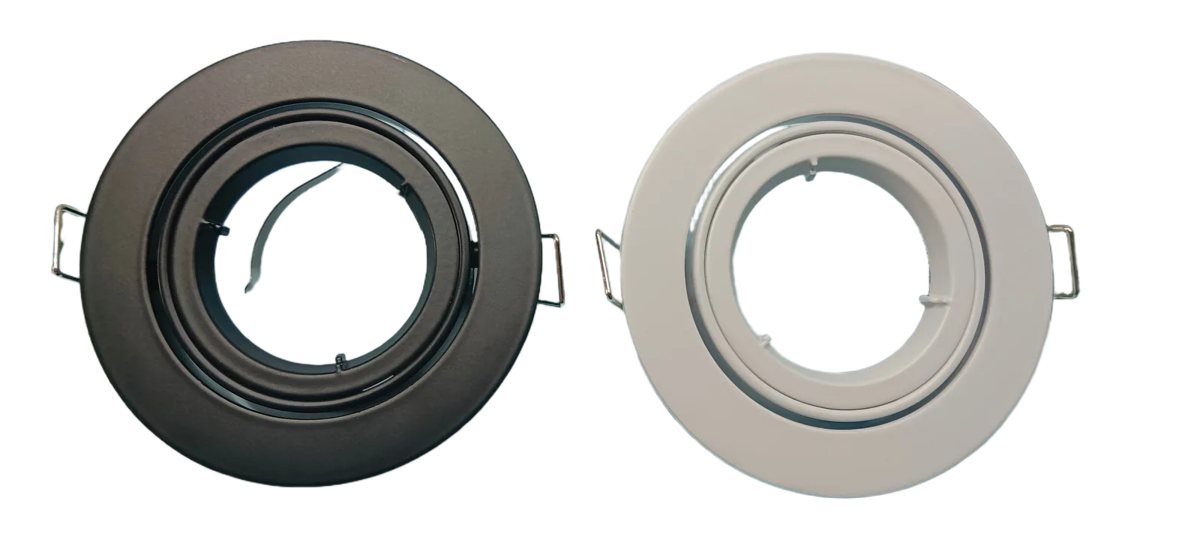

Eaves, porch ceilings and covered soffits are a natural place to light a facade, a column or an entry from above. The CLS CL02A is a recessed soffit fixture with an adjustable gimbal that holds a 12 volt MR16 lamp, in a matte black finish.
Why choose an adjustable gimbal in a soffit?
A fixed downlight only points straight down. The multi-directional aim on the CL02A lets you tilt the lamp toward a wall, a window frame or a stone column while the fixture stays flush in the ceiling.
Where can I use an IP20 fixture?
IP20 means the fixture is not sealed against water, so keep it in covered, dry ceiling locations such as deep soffits and porch ceilings. For a ceiling exposed to rain or spray, look at a sealed model like the CL01A.
Which MR16 lamp works here?
The ceramic GU5.3 socket with retaining clips accepts an MR16 LED up to 8 watts or a halogen up to 50 watts. The fixture is open with no lens, and the die-cast aluminum housing is held in the ceiling by stainless steel tension springs.
Specifications
| CLS part number | CL02A |
|---|---|
| Type | Recessed soffit fixture, adjustable |
| Finish | Matte Black |
| Socket | MR16 GU5.3 ceramic socket with retaining clips |
| Lamp | 12V MR16 LED up to 8W or halogen up to 50W |
| Lens | None |
| IP rating | IP20 |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Explore more commercial landscape lighting, and plan soffit spacing with our photometric design service.
