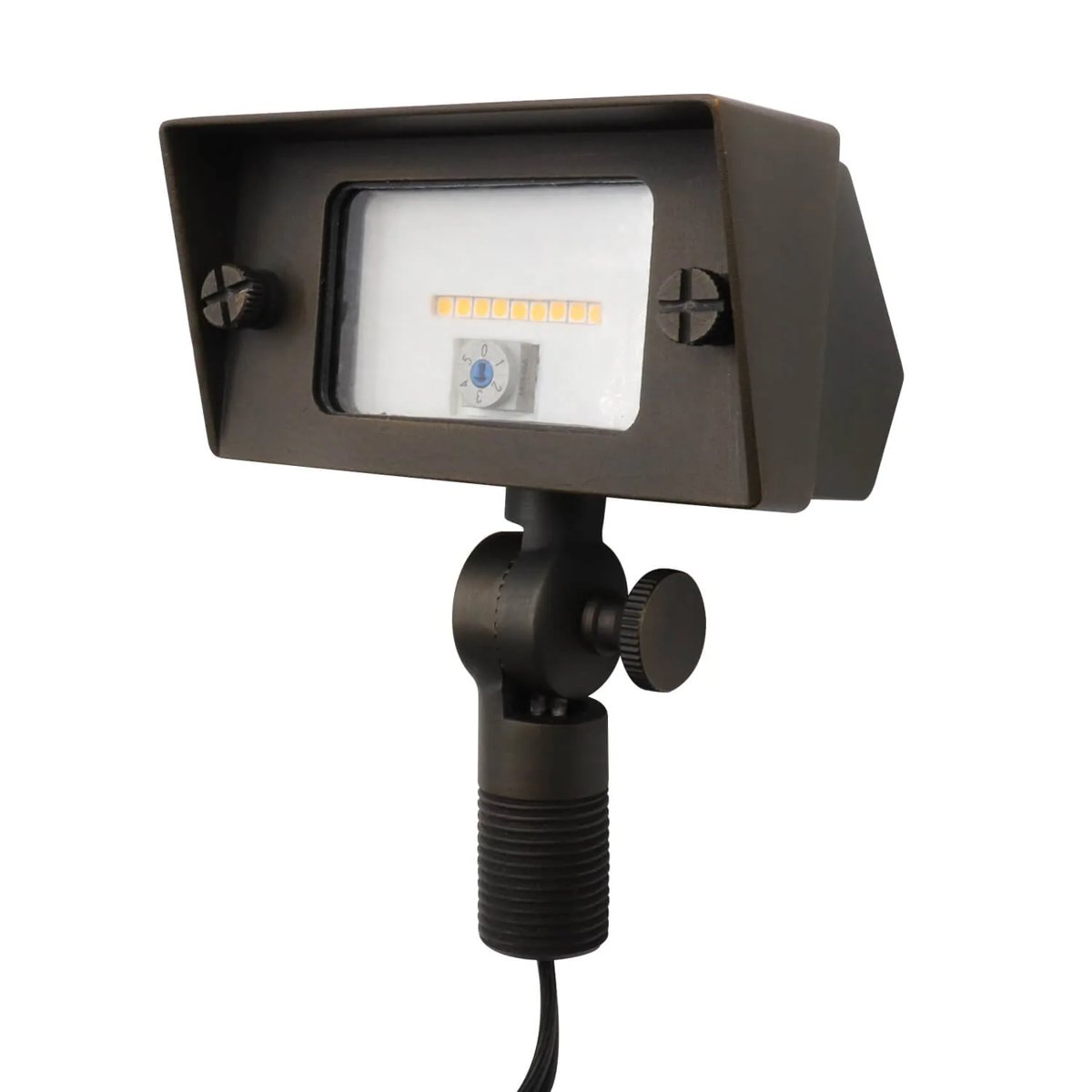

Low walls, entry signs, planters and garden features need a small flood whose output can be tuned to the target. The CLS IFL01 is an integrated LED flood in brass with an Antique Bronze finish, 4 inches long by 2.6 inches wide, with adjustable output from 0.5 to 5.5 watts.
How does adjustable output help on site?
An internal selector sets the output level at the fixture, so you can start with a soft accent and turn it up for a wall wash without changing parts. CLS rates maximum output at 550 lumens.
Is a 140 degree beam right for my target?
A 140 degree spread is very wide. It suits wall washing, signs and low features where you want even coverage at close range, rather than reaching up a tall tree. It has a CRI of 85.
Will it hold its aim, and can it be serviced?

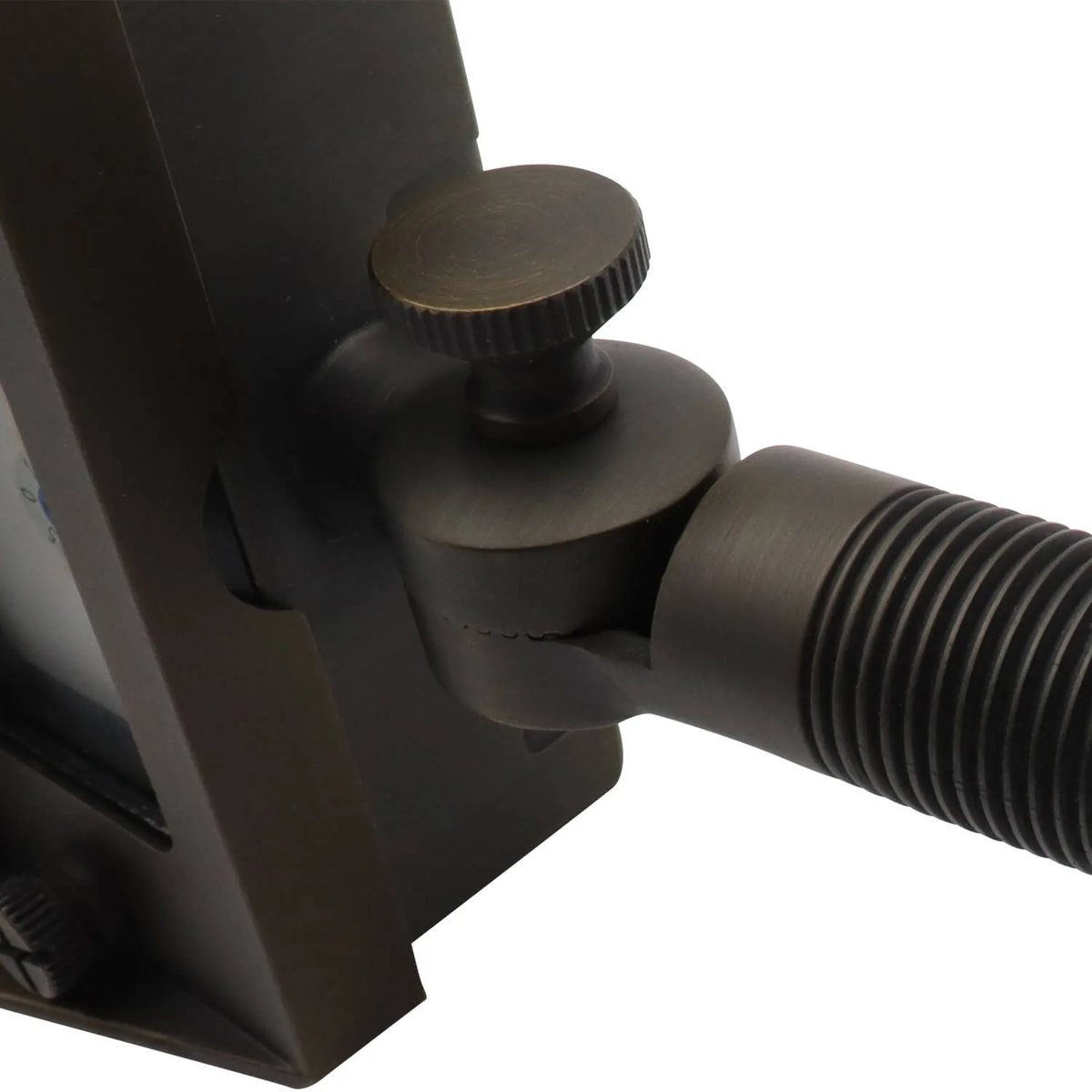

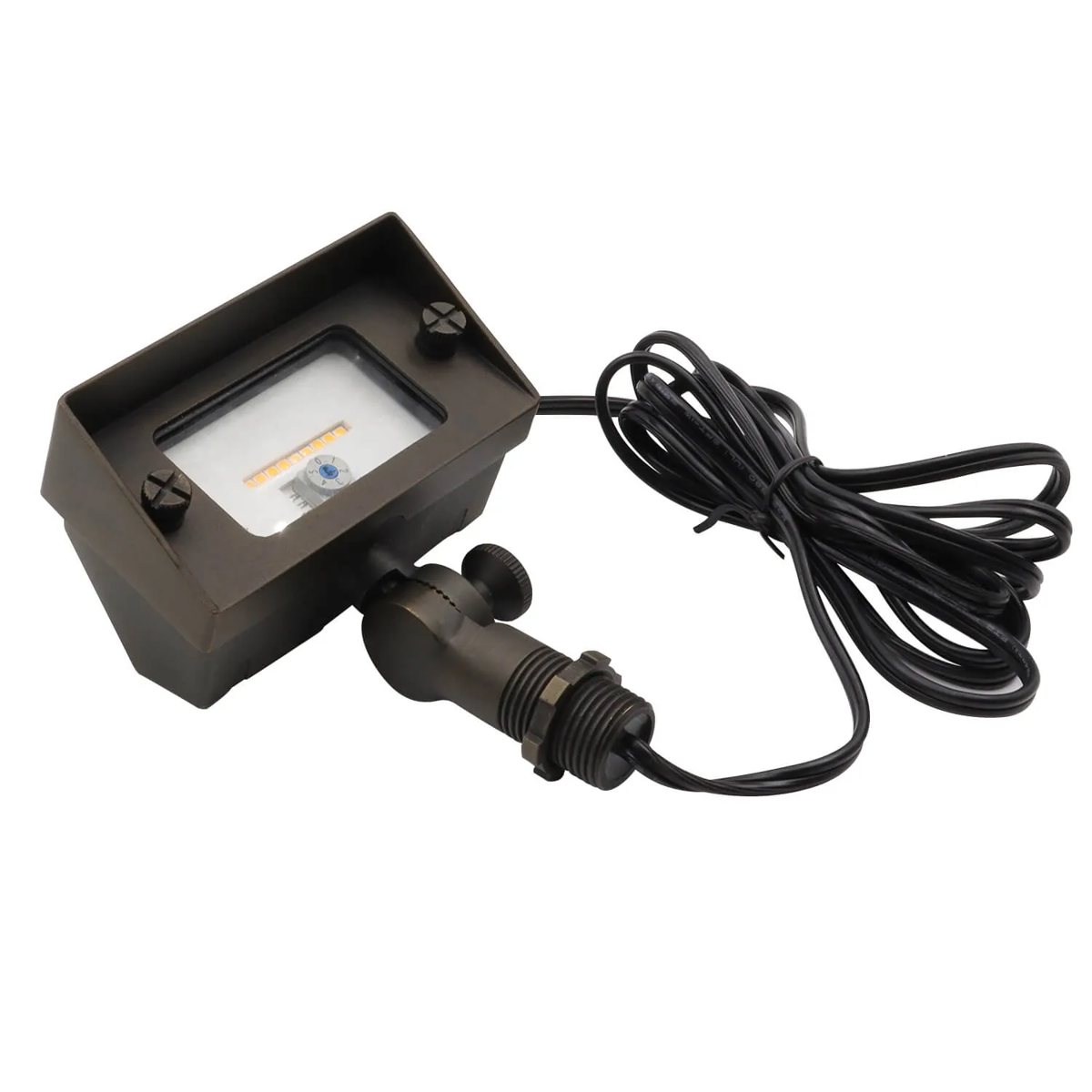

CLS fitted a serrated locking knuckle so the angle does not sag over time, and lists the fixture as serviceable. It is sealed to IP65 with silicone gaskets and clear tempered glass, runs on 12 volt AC, and has a 72 inch 18 gauge SPT-1W lead.
Specifications
| CLS part number | IFL01 |
|---|---|
| Light source | Integrated LED, serviceable |
| Wattage | Adjustable, 0.5W to 5.5W |
| Lumens | Up to 550 lm |
| CRI | 85 |
| Beam spread | 140 degrees |
| Input voltage | 12V AC |

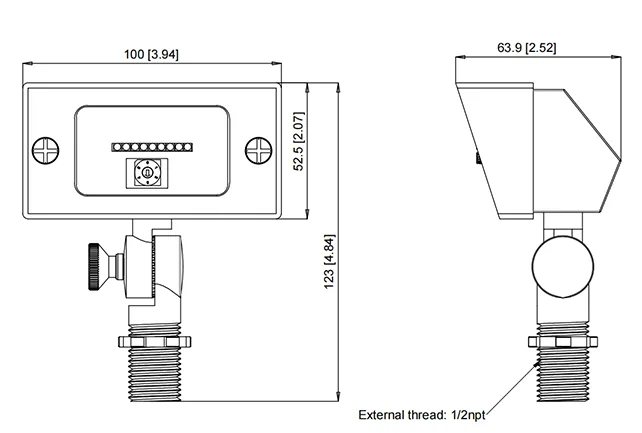

| Dimensions | 4″ L x 2.6″ W |
| Construction | Brass |
| Finish | Antique Bronze |
| Lens | Clear tempered high temperature glass |
| IP rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Browse our LED flood lighting, and use the low voltage wire calculator when several small floods share a run.
