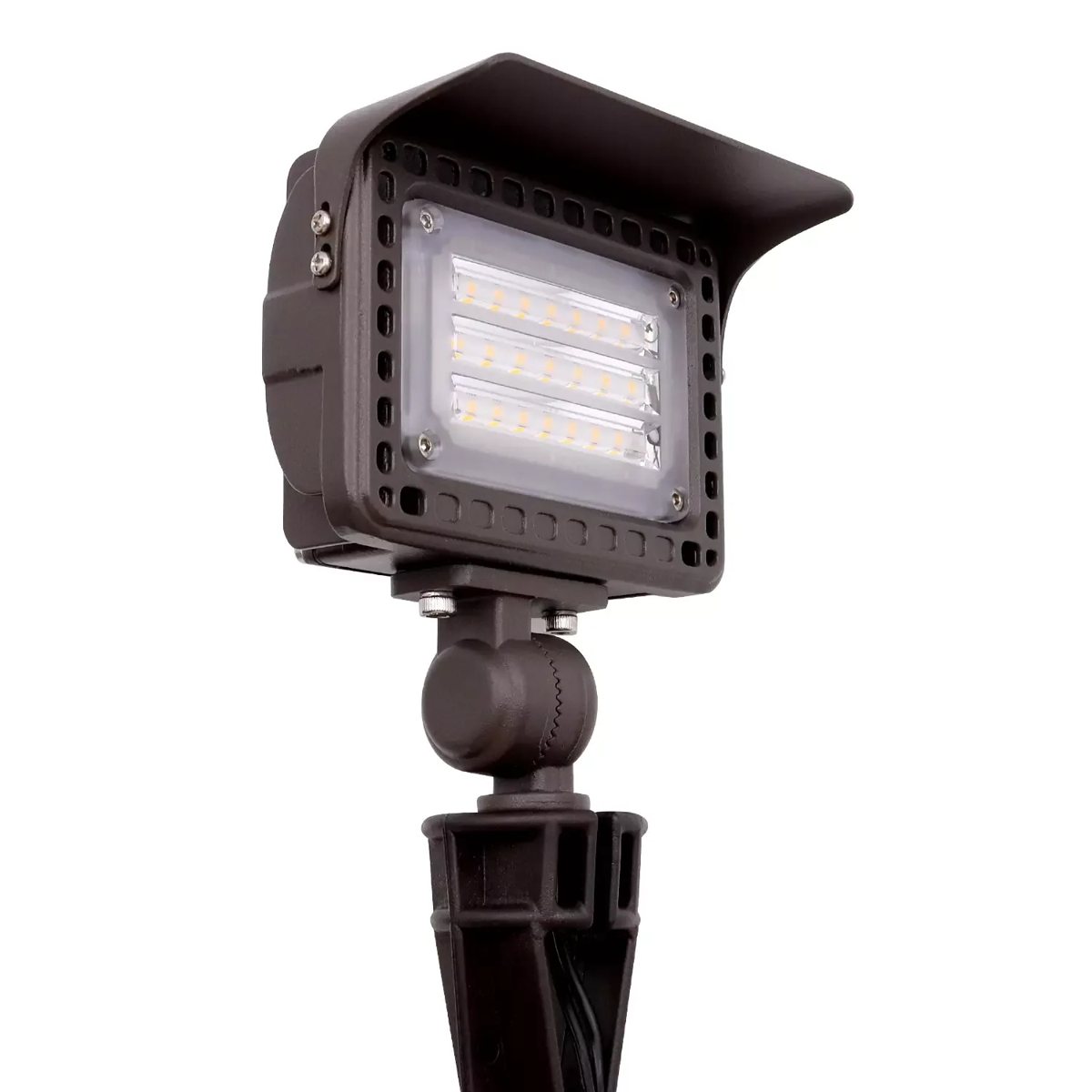

Monument signs, low retaining walls and narrow building faces only need a modest wash, and an oversized flood just throws light past the target. The CLS IFL0207 is the 7 watt model of the IFL02 integrated flood, built in die-cast aluminum with an Antique Bronze finish. Specify 2700K, 3000K or 4000K when ordering.
Is 7 watts the right size, or should I step up?
The IFL0212 and IFL0220 share this same 5.0 by 2.44 by 7.5 inch housing at 12 and 20 watts. Start with the IFL0207 when the fixture sits close to the surface or the feature is small. Move up when the throw is longer or the facade is taller, since all three fit the same footprint in the bed.
What does integrated mean for maintenance?
The LED is built into the fixture, so there is no lamp to buy or change. The housing is rated IP65 behind a clear tempered glass lens, runs from 9 to 17 volts AC or DC, and arrives with a 72 inch, 18 gauge SPT-1W lead.
Specifications
| CLS part number | IFL0207 |
|---|---|
| Family | IFL02 integrated flood: IFL0207 (7W), IFL0212 (12W), IFL0220 (20W) |
| Wattage | 7W |
| Color temperature | 2700K, 3000K or 4000K, chosen when ordering |
| CRI | 85 |
| Input voltage | 9 to 17V AC/DC |
| Light source | Integrated LED |
| Dimensions | 5.0 in. L x 2.44 in. W x 7.5 in. H |
| Construction | Die-cast aluminum |
| Finish | Antique Bronze |
| Lens | Clear tempered, high temperature glass |
| IP rating | IP65 |
| Lead wire | 72 in. SPT-1W, 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Browse our commercial flood lighting range, and ask about photometric design when you need the layout checked before ordering.
