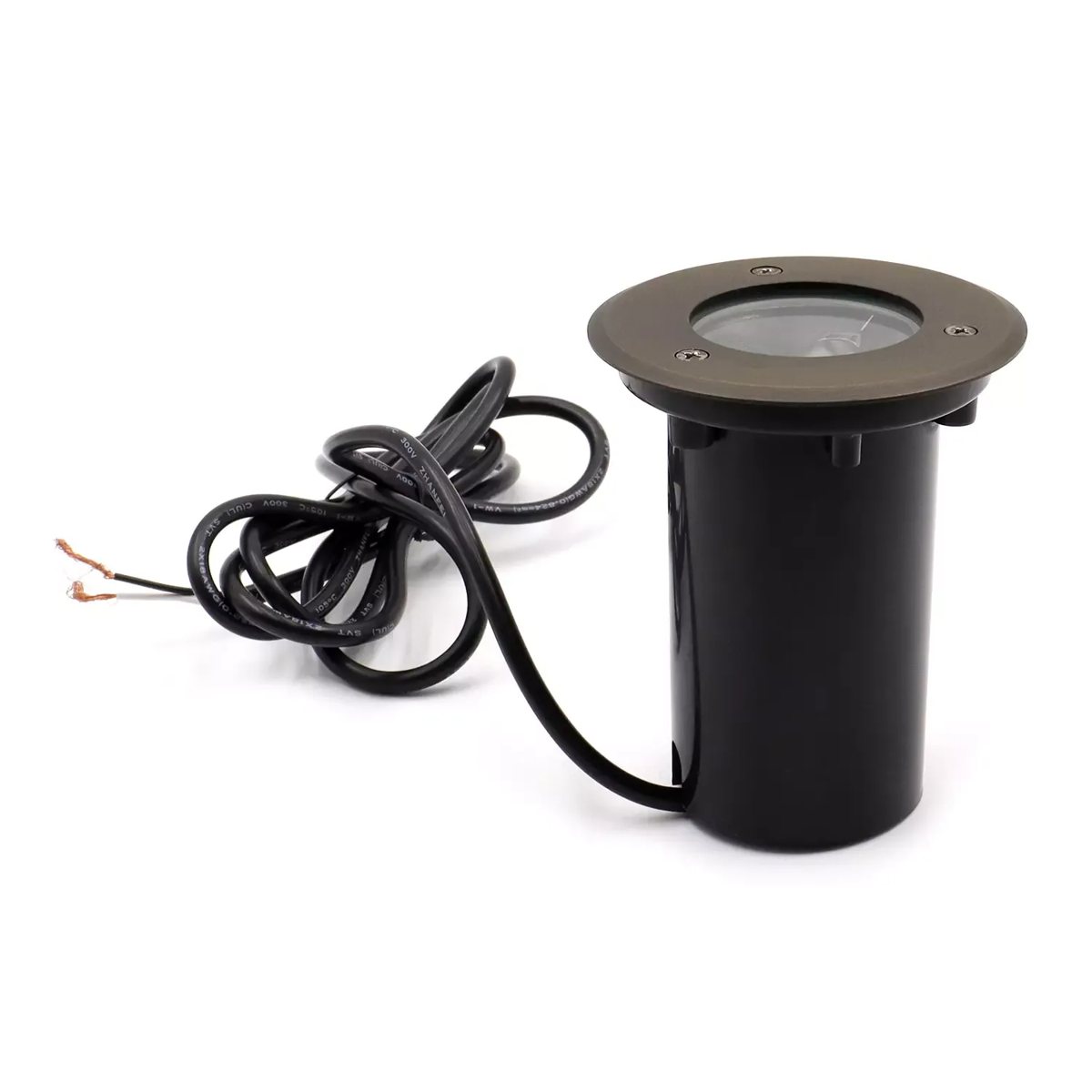

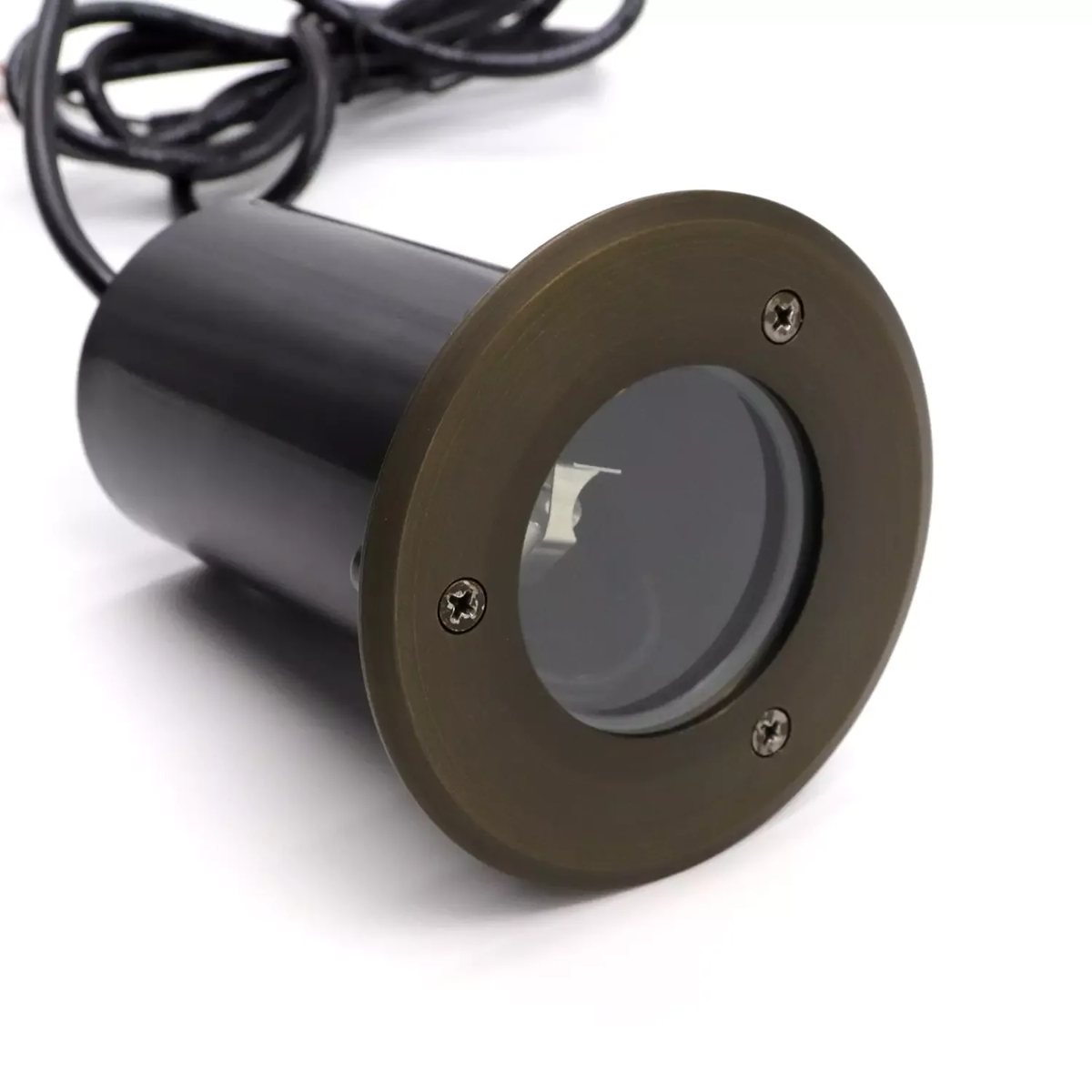

Tight beds, narrow strips between a walk and a wall, and spots crowded with roots leave little room for a large well. The CLS IGL08B is a compact in-ground well light, 4.67 inches tall and 3.93 inches wide, with a cast brass faceplate over a PVC body.
How does the lens handle heat and impact at grade?

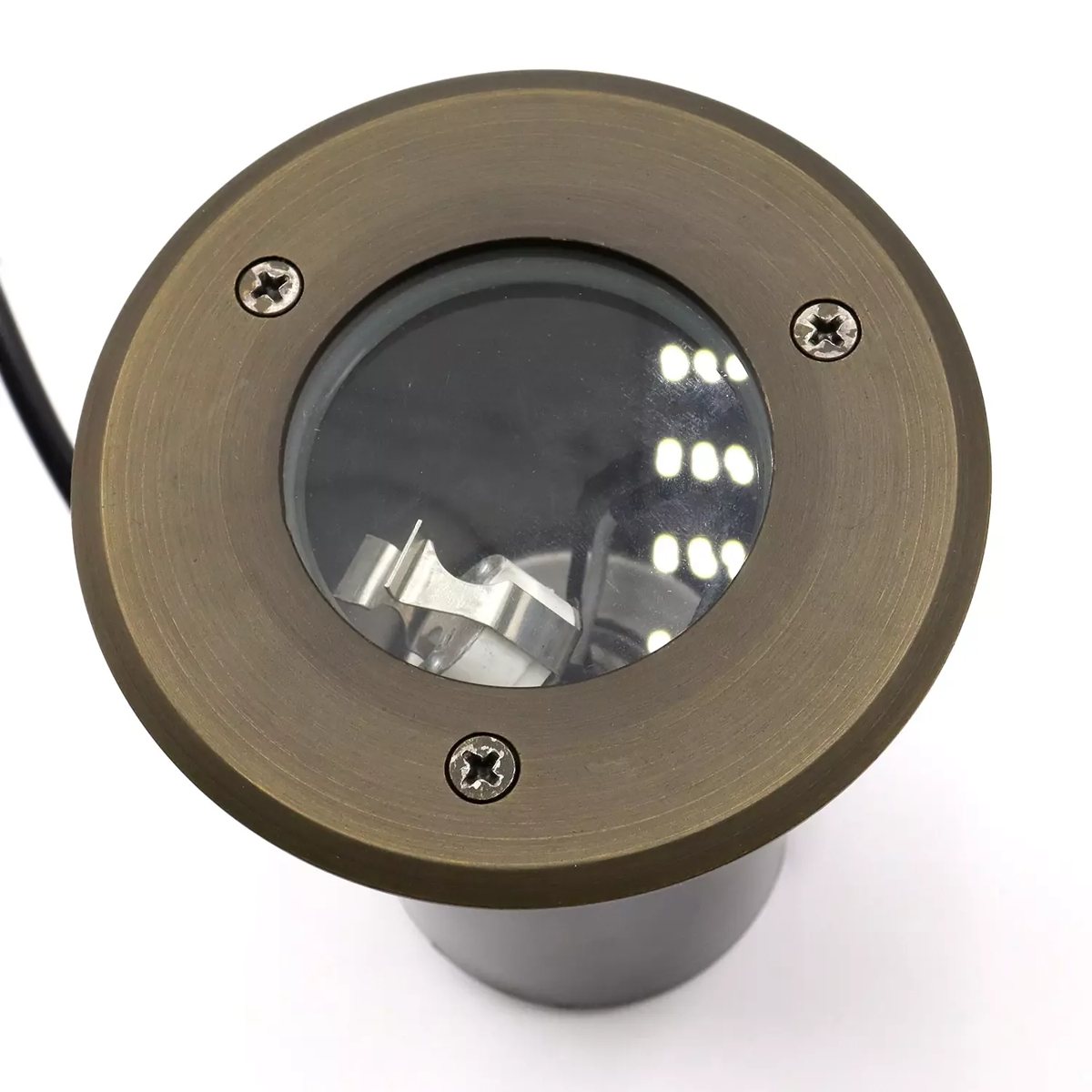

The lens is thickened tempered glass, chosen for impact and heat resistance where people and pets cross over the fixture and the lamp warms the glass. CLS also lists a frosted lens and hex louver version for softer, lower glare light.
How does it keep water out of a compact well?

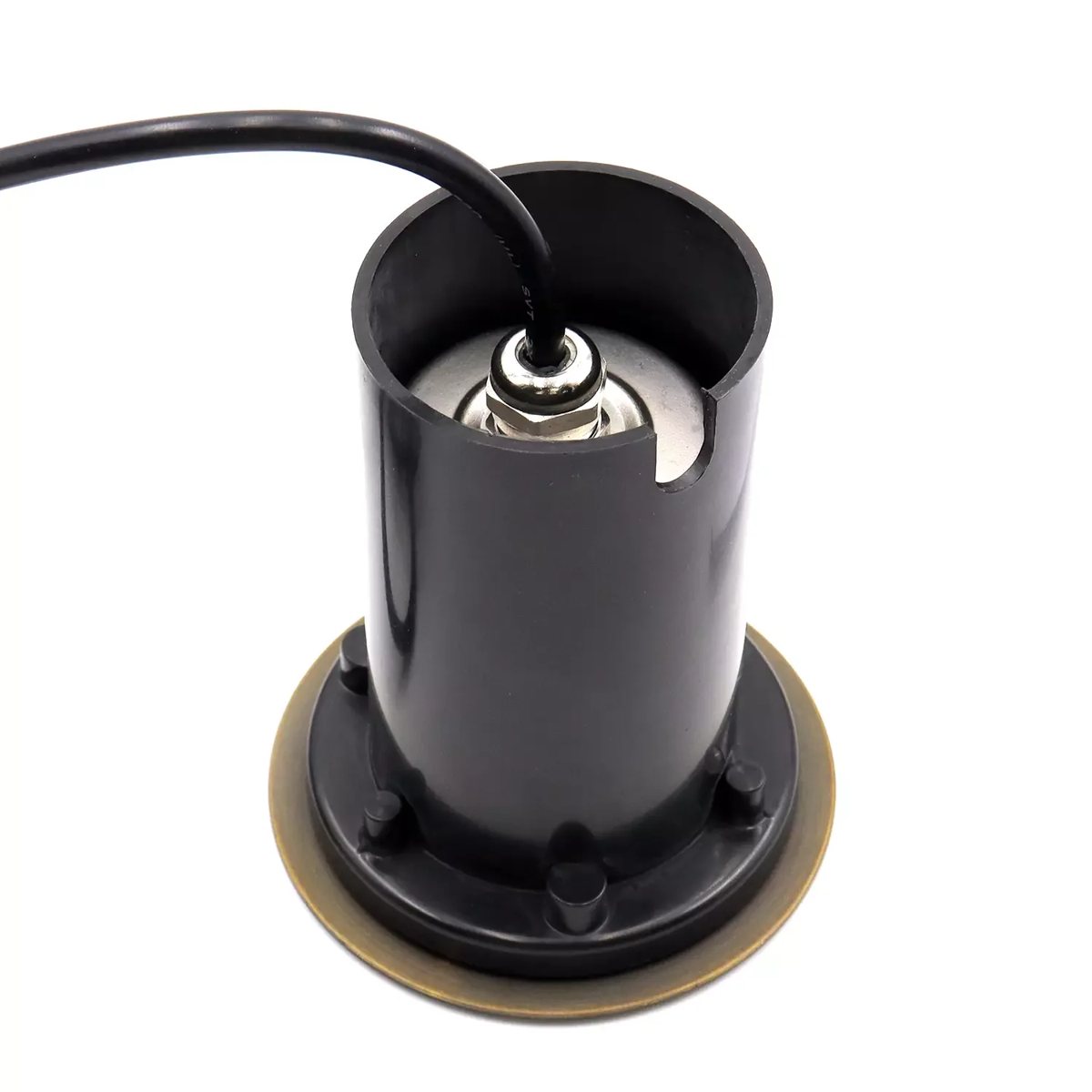

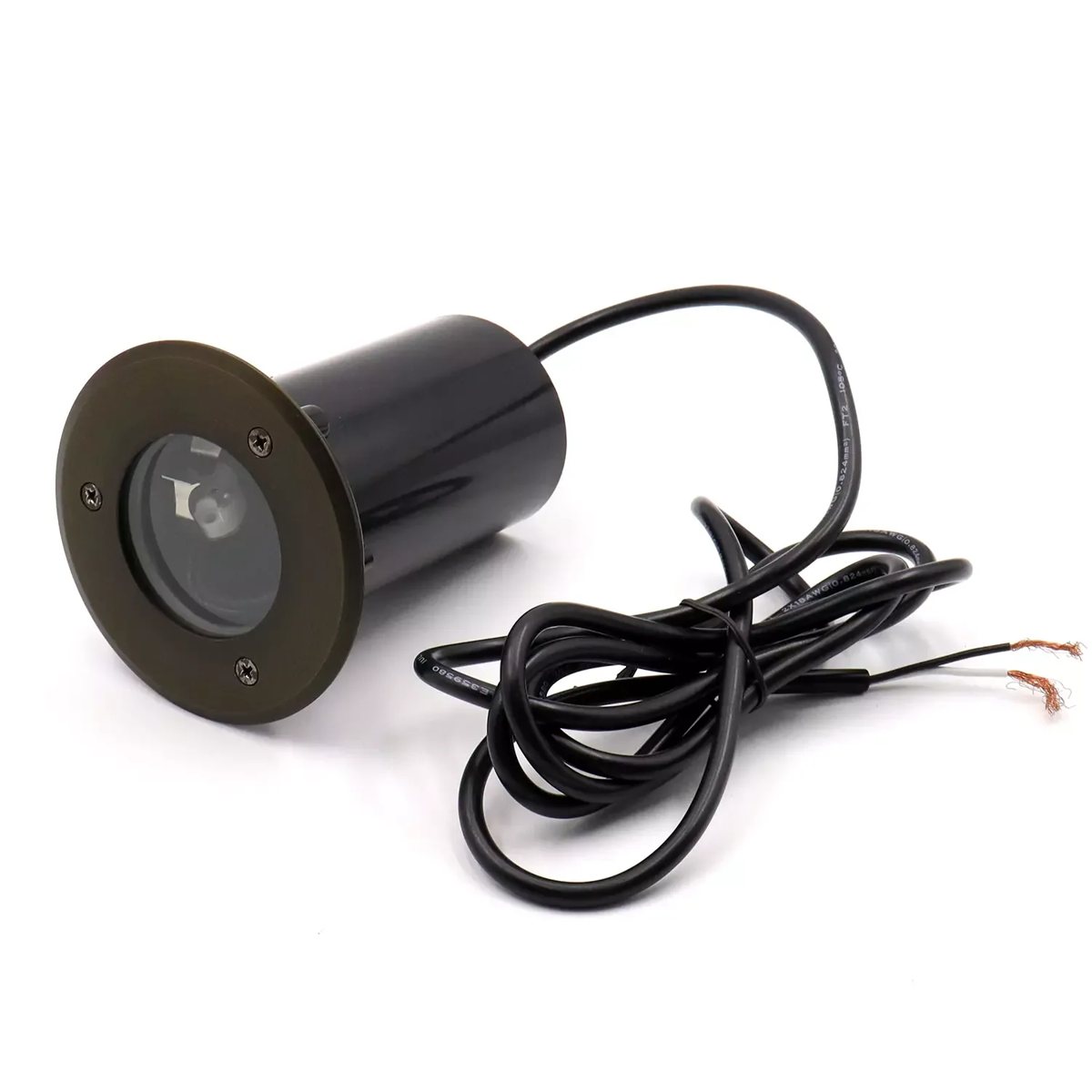

High-grade silicone O-rings seal the lens, and a waterproof pressure-fit wire exit seals the point where the lead leaves the body. The fixture is rated IP65 and comes pre-wired with 72 inches of direct burial rated lead.
Which MR16 beam should go in it?
The GU5.3 ceramic socket accepts an MR16 LED lamp up to 8W or a halogen lamp up to 50W, so you set beam angle and color temperature with the lamp. Narrow beams suit tall trunks, and wider beams suit facades and broad shrubs.
Specifications
| CLS part number | IGL08B |
|---|---|
| Type | In-ground well light, compact |
| Construction | PVC body with solid cast brass faceplate |
| Finish | Antique Bronze |

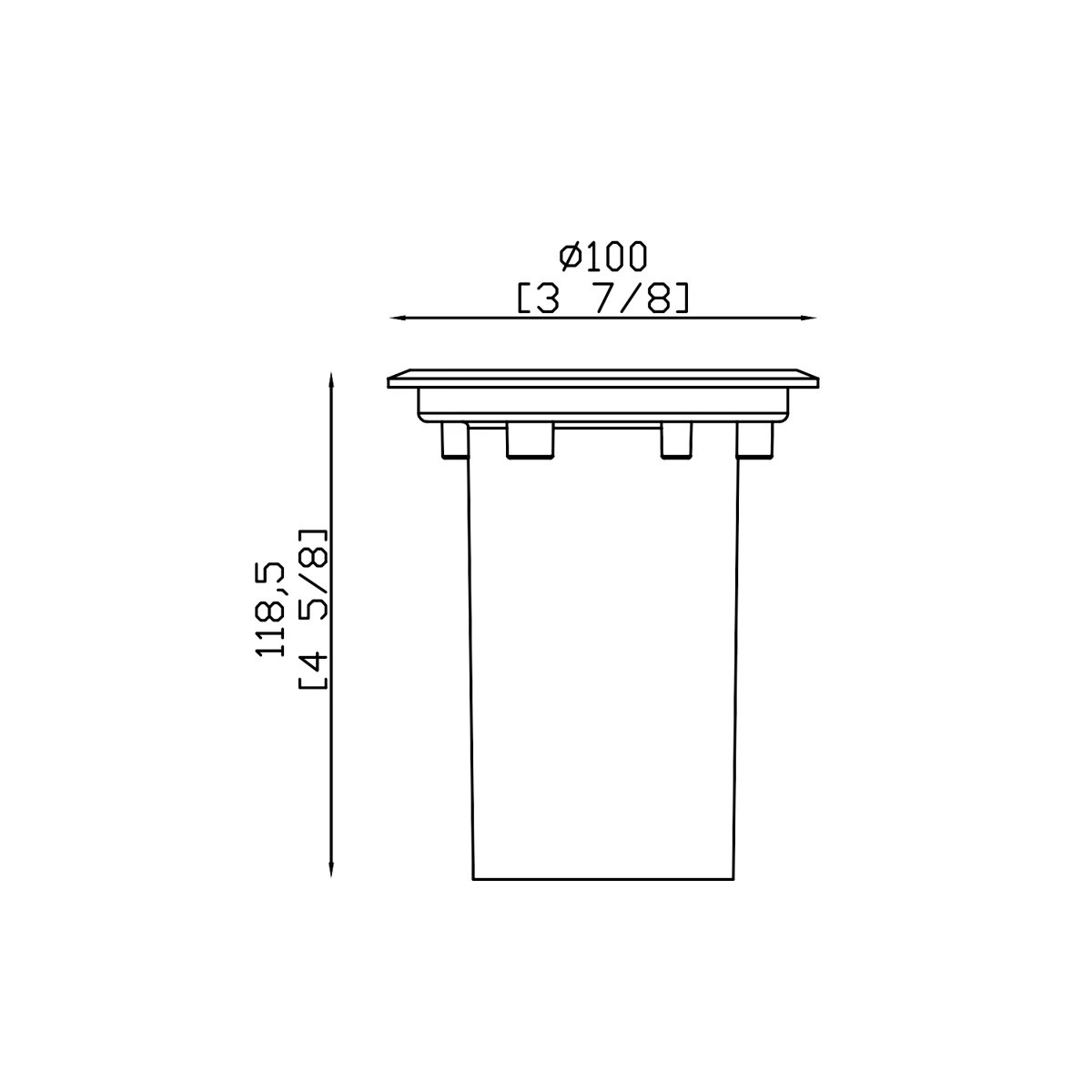

| Dimensions | 4.67″ H x 3.93″ W |
| Lamp | MR16 LED (max 8W) or halogen (max 50W) |
| Socket | MR16 GU5.3 ceramic, with retaining clips |
| Lens | Clear tempered, high-temperature glass (frosted and hex louver versions listed) |
| Ingress rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare sizes across our in-ground well lights, and confirm placement with photometric design.
