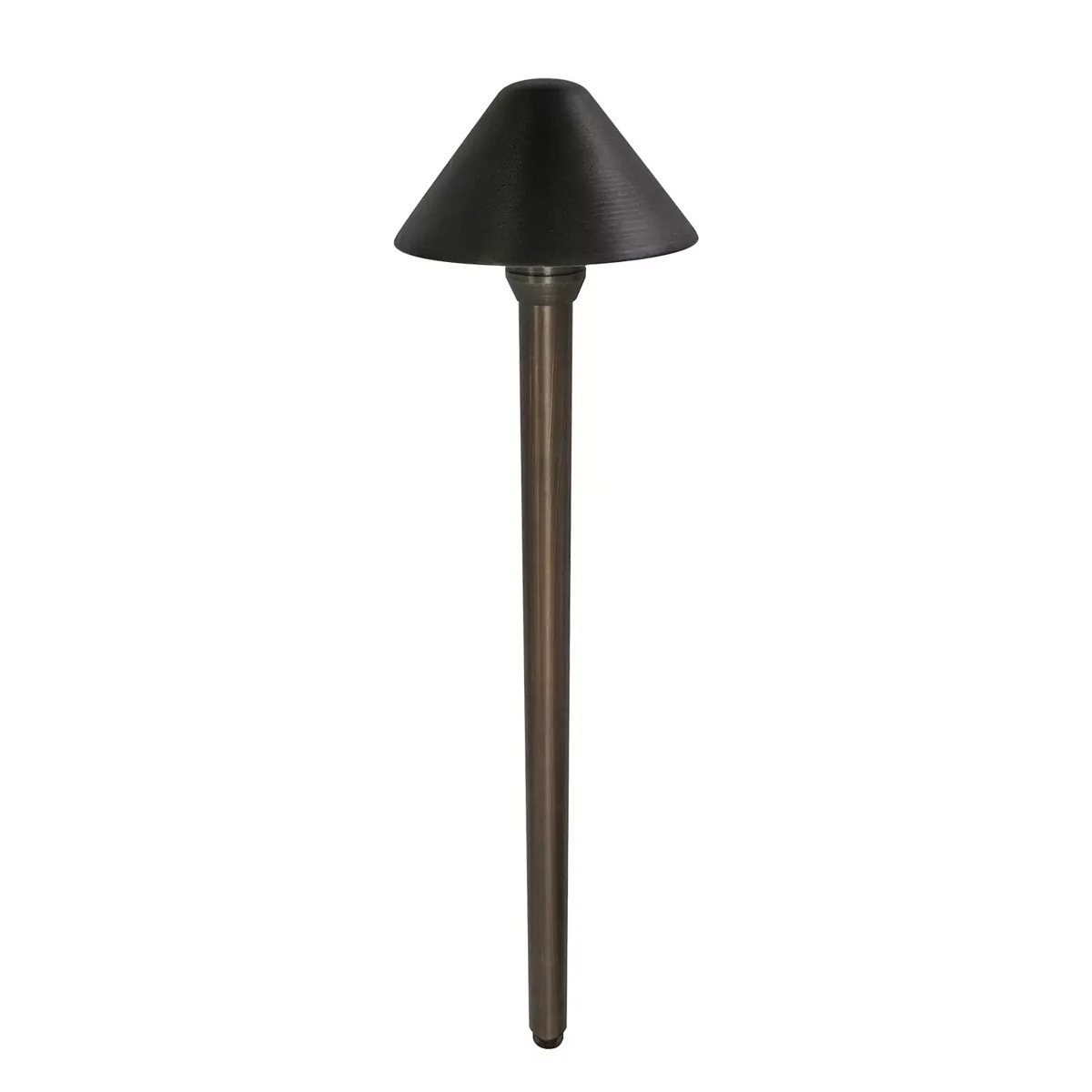

Narrow walks, flower borders and patio edges often need a path light that stays low and keeps the light close to the ground. The CLS PL80B is a small mushroom style path light in solid cast brass with an Antique Bronze finish, standing 21.26 inches tall with a 5.32 inch shade.
How wide does a 5.32 inch mushroom shade throw light?
A small cap like this puts a modest pool of light around the base of the stem rather than a wide circle. That makes it a better match for tight beds and narrow paths, where a large hat would crowd the plants or spill onto lawn. Expect to space these closer together than a wide umbrella fixture to keep the walk evenly lit.
What lamp goes in the PL80B?
It uses a G4 bi-pin socket and accepts a G4 LED lamp up to 4 watts or a G4 halogen up to 20 watts. A frosted tempered glass lens softens the lamp so the source is not visible from the walk.
Is brass a good choice for a fixture this close to irrigation?
Solid cast brass does not rust, which is why it holds up in beds that get watered every night. The fixture carries an IP65 rating and comes with a 72 inch 18 gauge SPT-1W lead wire to reach a nearby splice.
Specifications
| CLS part number | PL80B |
|---|---|

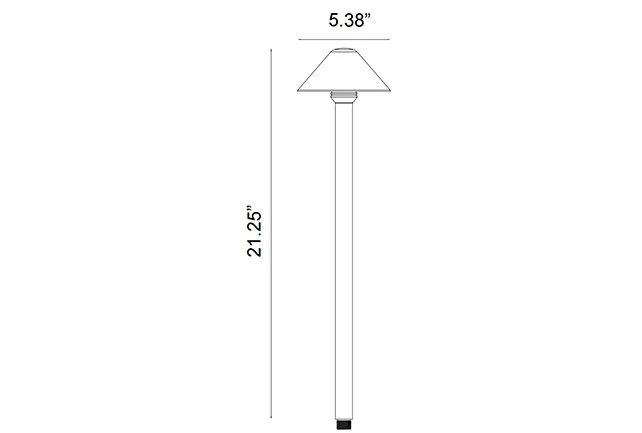

| Dimensions | 21.26″ H x 5.32″ W |
| Construction | Solid cast brass |
| Finish | Antique Bronze |
| Socket | G4 bi-pin |
| Lamp | G4 LED up to 4W or halogen up to 20W |
| Lens | Frosted tempered high temperature glass |
| IP rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare other heights and shades in our commercial path lighting range, or use our photometric design service to set the spacing along the walk.
