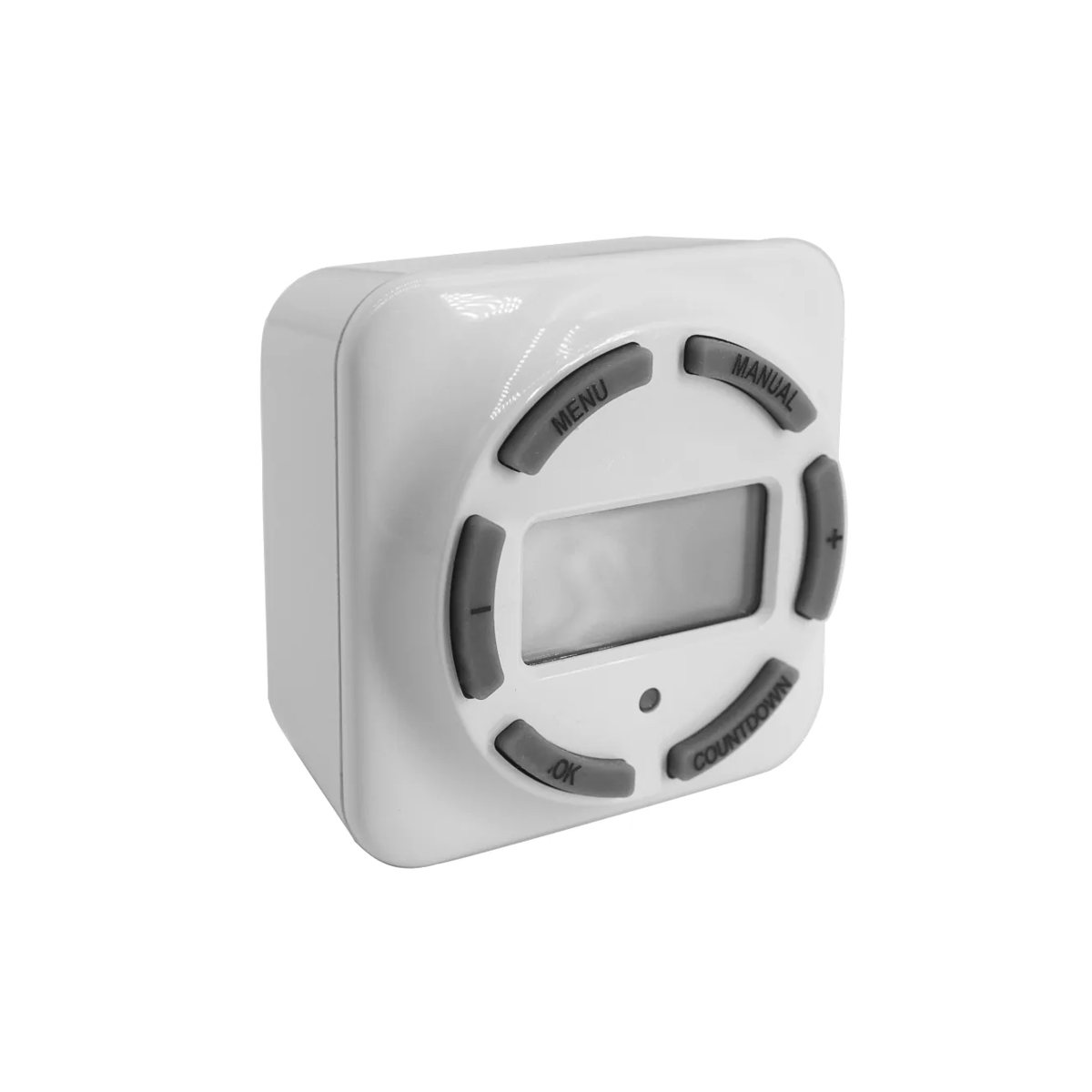

CLS A07D Digital 7-Day Programmable Timer Module

Commercial sites, restaurants and HOA common areas often want different lighting hours on weekends than on weekdays, and a single 24-hour dial cannot do that. The CLS A07D is a digital 7-day timer module that installs inside the transformer cabinet through a standard pin configuration.

When is a 7-day digital timer worth it over a mechanical dial?

When the schedule changes by day. Each of the seven days can run its own cycle with up to 18 on and off events, so you can extend hours on event nights or cut back midweek. The digital display shows the program and current status at a glance.

Will it lose the program during a power outage?

A built-in rechargeable battery keeps all program settings stored when external power drops, so the schedule does not need to be reentered after a storm.

Can it handle a large transformer load?

CLS rates the A07D for up to 15 amps or 1800 watts at 120 volts AC, enough for high wattage landscape systems. It carries an IP65 rating for use in outdoor cabinets.

Specifications

Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.

Find photocells, timers and more in our landscape lighting accessories, or ask a lighting expert whether your transformer accepts this module.
