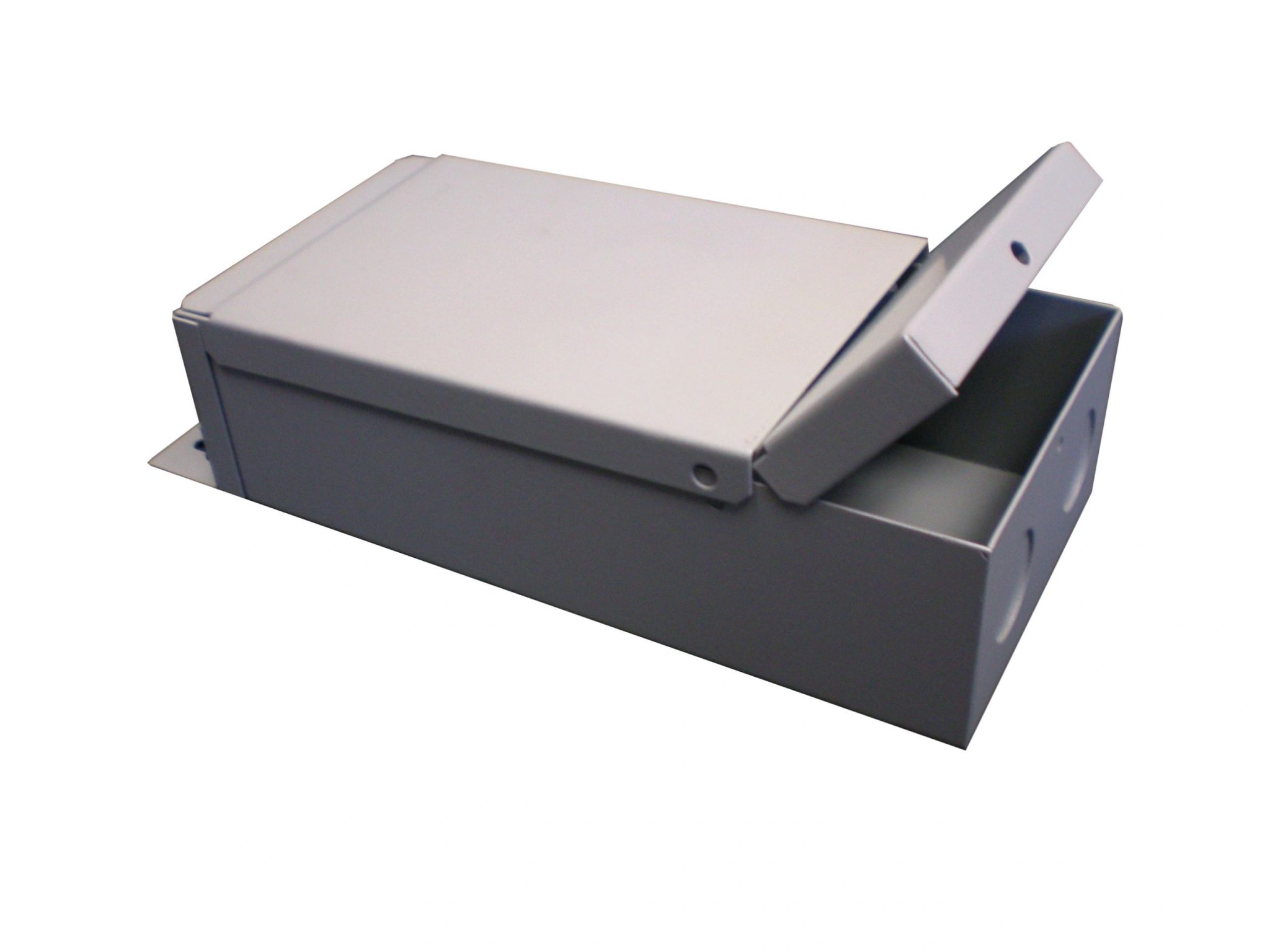

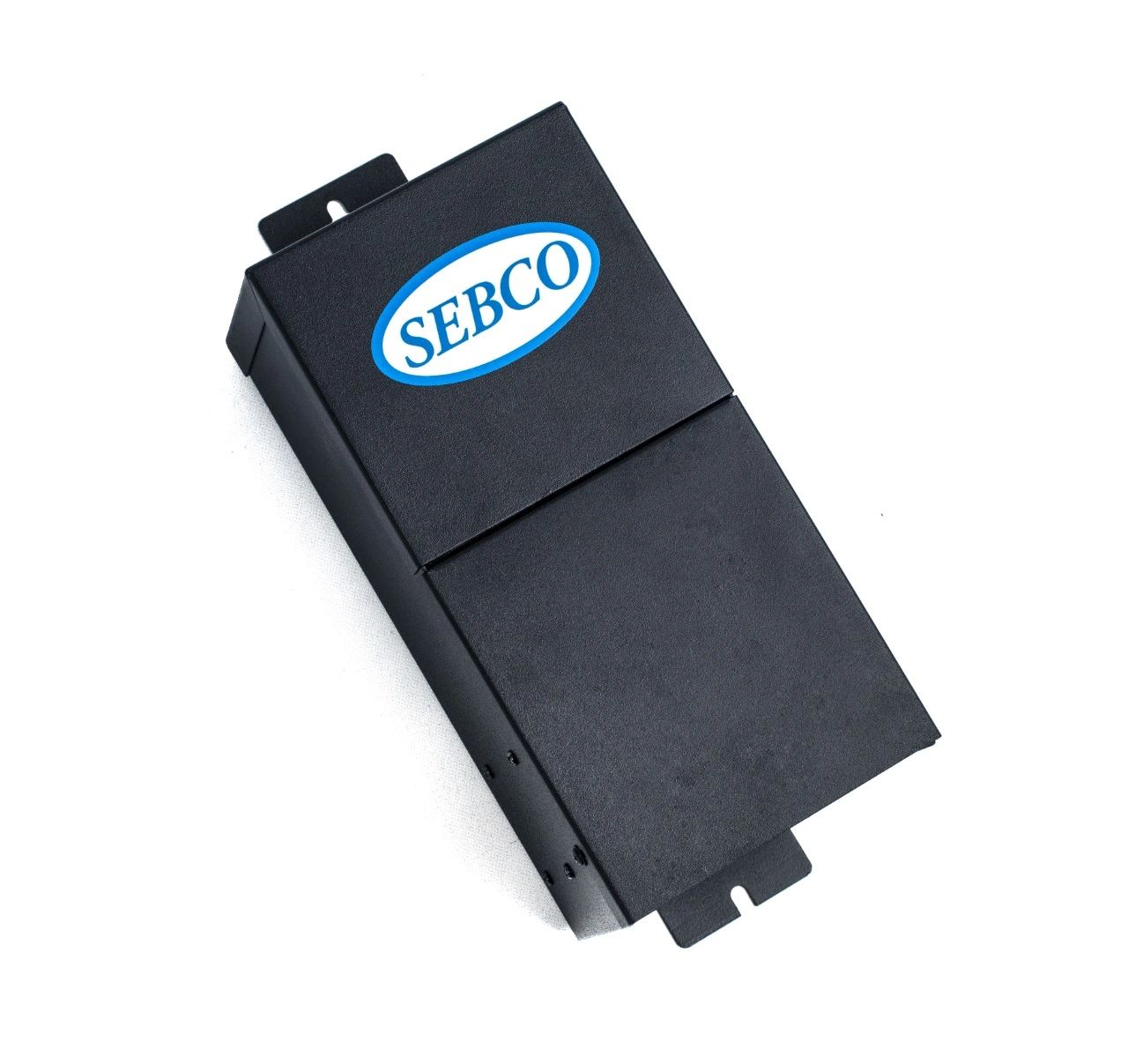

The Sebco SEB series is a compact NEMA 3R magnetic unit in two flavors: an AC output transformer for incandescent and AC rated LED lamps, and a DC output LED power supply for tape light and DC rated fixtures. Capacities run from 20 to 300 watts in 12 or 24 volts.
AC or DC output?
Match the output to the load: AC for MR16 and other AC rated lamps, DC for LED tape and fixtures that call for a DC driver. Not every capacity is built in both outputs, so the options above only show combinations Sebco makes. Each selection shows its part number and specifications.
Compare models
| Sebco part | Wattage | Voltage | Output Type |
|---|---|---|---|
| SEB12AC-24W-3R | 24W | 12V | AC Output |
| SEB12DC-40W-3R | 40W | 12V | DC Output |
| SEB12AC-40W-3R | 40W | 12V | AC Output |
| SEB12DC-60W-3R | 60W | 12V | DC Output |
| SEB12AC-60W-3R | 60W | 12V | AC Output |
| SEB12DC-96W-3R | 96W | 12V | DC Output |
| SEB12AC-96W-3R | 96W | 12V | AC Output |
| SEB12DC-120W-3R | 120W | 12V | DC Output |
| SEB12DC-180W-3R | 180W | 12V | DC Output |
| SEB12DC-20W-3R | 20W | 12V | DC Output |
| SEB12DC-240W-3R | 240W | 12V | DC Output |
| SEB12DC-300W-3R | 300W | 12V | DC Output |
| SEB24AC-20W-3R | 20W | 24V | AC Output |
| SEB24DC-40W-3R | 40W | 24V | DC Output |
| SEB24AC-40W-3R | 40W | 24V | AC Output |
| SEB24DC-60W-3R | 60W | 24V | DC Output |
| SEB24AC-60W-3R | 60W | 24V | AC Output |
| SEB24DC-96W-3R | 96W | 24V | DC Output |
| SEB24AC-96W-3R | 96W | 24V | AC Output |
| SEB24DC-192W-3R | 192W | 24V | DC Output |
| SEB24DC-24W-3R | 24W | 24V | DC Output |
| SEB24DC-288W-3R | 288W | 24V | DC Output |
Specifications are published by Sebco Industries and are subject to change without notice. Choose an option above to see the full specification table for that part.
What else does this job need?
Set the tap and conductor size with the low voltage wire calculator, or browse all landscape transformers and LED drivers. Request a quote for pricing and lead time, or ask a lighting expert to check the selection. A photometric design layout confirms spacing and light levels before you order.
Specification sheets
- Sebco SEB12AC 12VAC Magnetic Transformer Cut Sheet (PDF)
- Sebco SEB12DC 12VDC Magnetic LED Power Supply Cut Sheet (PDF)
- Sebco SEB12DC High Wattage 12VDC LED Power Supply Cut Sheet (PDF)
- Sebco SEB24AC 24VAC Magnetic Transformer Cut Sheet (PDF)
- Sebco SEB24DC 24VDC Magnetic LED Power Supply Cut Sheet (PDF)
- Sebco SEB24DC High Wattage 24VDC LED Power Supply Cut Sheet (PDF)
Documents are hosted by LED Spot. Sebco Industries revises published literature without notice, so check with us before ordering to critical dimensions.
