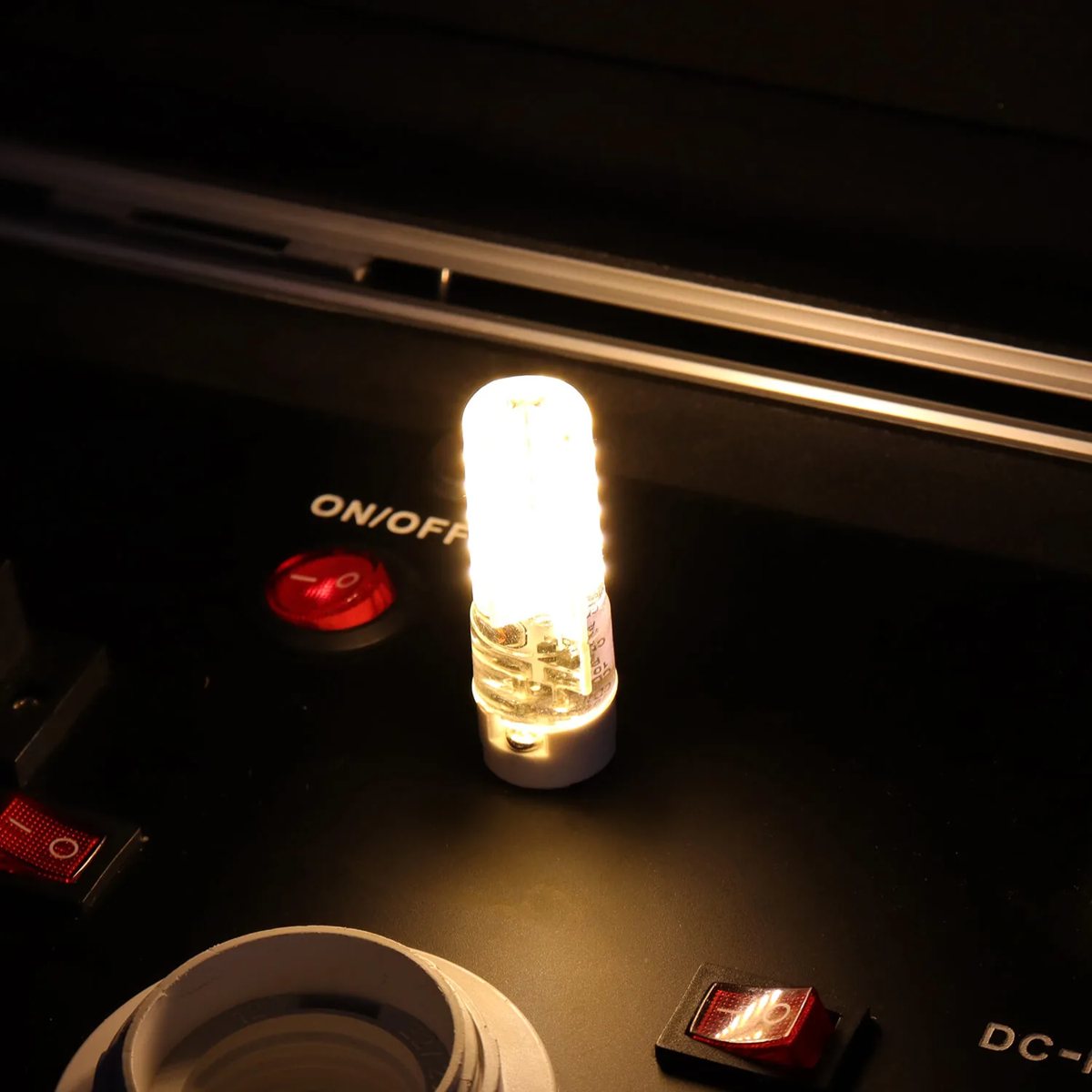

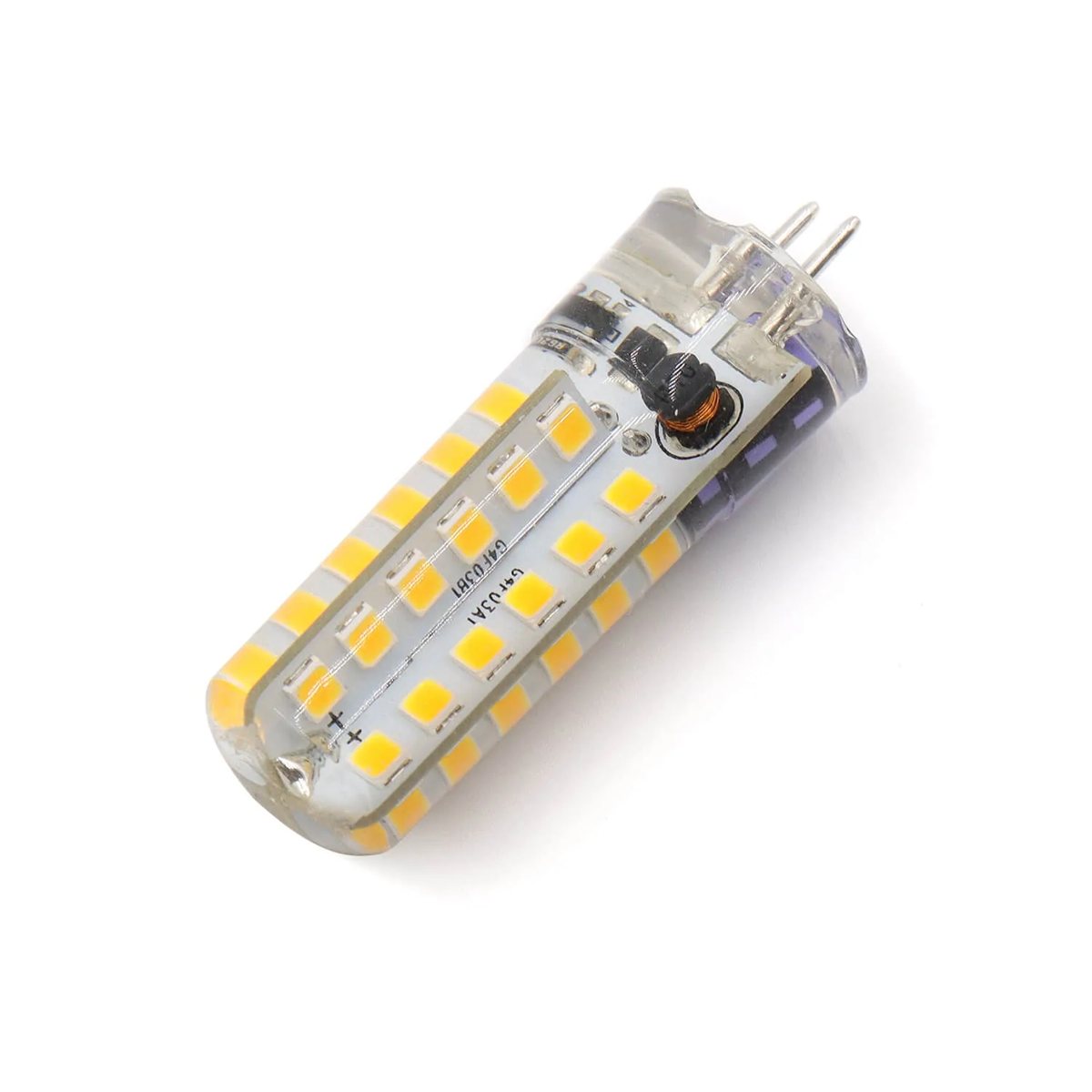

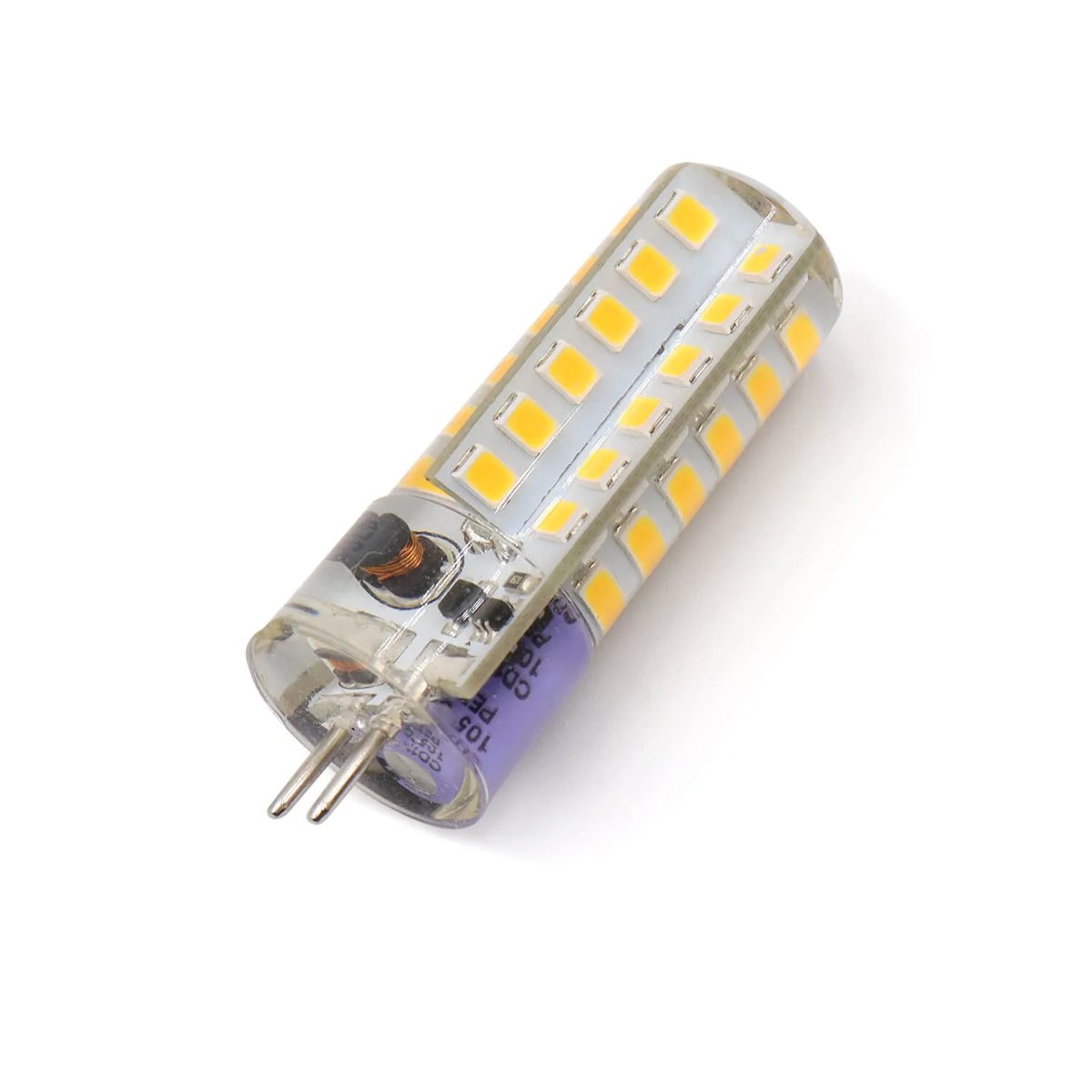

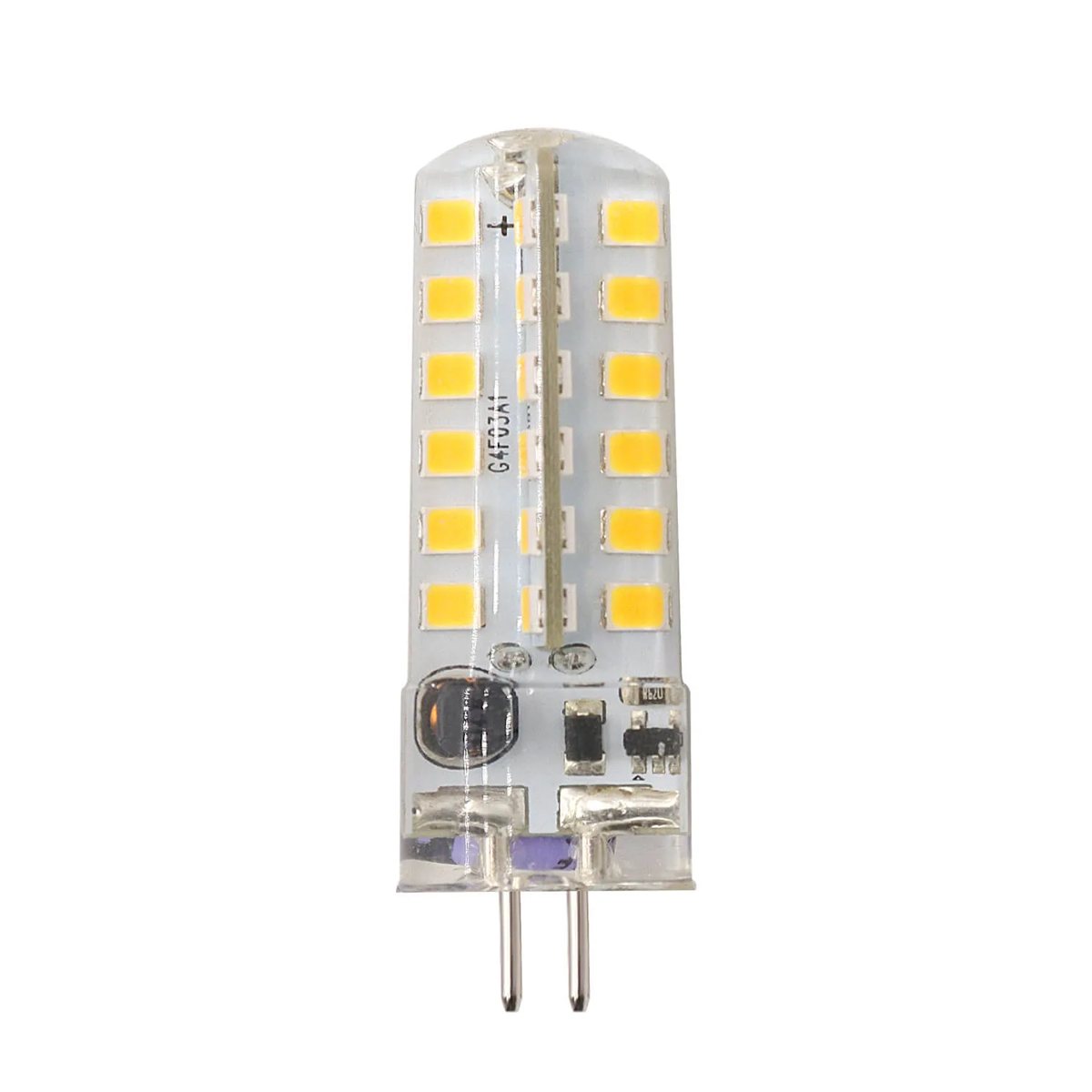

Taller path lights, area lights over wide beds and fixtures in exposed spots need both output and moisture protection. The CLS LL4S4 is a 4 watt G4 LED fully encapsulated in silicone, rated at 360 lumens and offered in 2700K or 3000K. CLS compares it to a 50 watt halogen G4.
When is a silicone potted G4 better than a covered capsule?
In fixtures that see a lot of condensation, irrigation overspray or temperature swings. Full silicone encapsulation leaves no air gap around the LED for moisture to settle in, and the silicone also helps draw heat away from the diodes. The lamp is rated IP54.
Warm 2700K or 3000K for this property?
Choose 2700K for a candle-like tone on brick, wood and warm stone, and 3000K for a slightly crisper white that suits modern hardscape and green foliage. Whichever you pick, use it across every fixture of the same type for a uniform look.
What load does it place on the transformer?
About 4.8 VA per lamp. It spreads light 360 degrees, runs on 9 to 17 volts AC and dims with most magnetic transformers.
Specifications
| CLS part number | LL4S4 |
|---|---|
| Lamp type | G4 bi-pin |
| Wattage | 4W |
| Lumens | 360 lm |
| Color temperature | 2700K or 3000K |
| Halogen equivalent | 50W |
| Input voltage | 9 to 17V AC |
| Power consumption | 4.8 VA |
| Beam spread | 360° |
| Construction | Ceramic base, silicone encapsulated LED capsule |
| IP rating | IP54 |
| Dimming | Most magnetic (MLV) transformers; DC voltage dimming |
| Operating temperature | -13°F to 104°F (-25°C to 40°C) |
| Rated life (L70) | 50,000 hours |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare outputs across our LED light sources, and confirm transformer headroom with the low voltage wire calculator.
