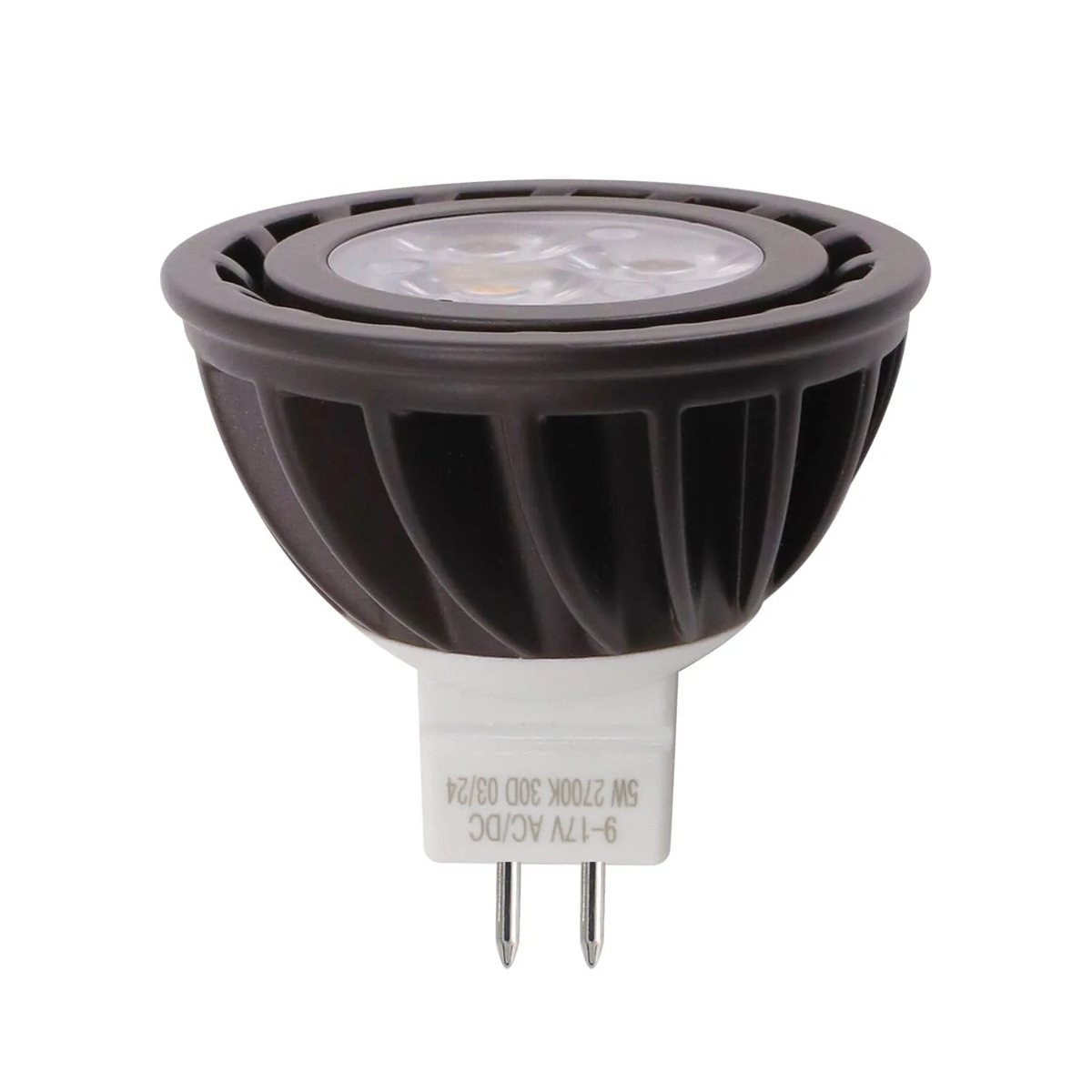

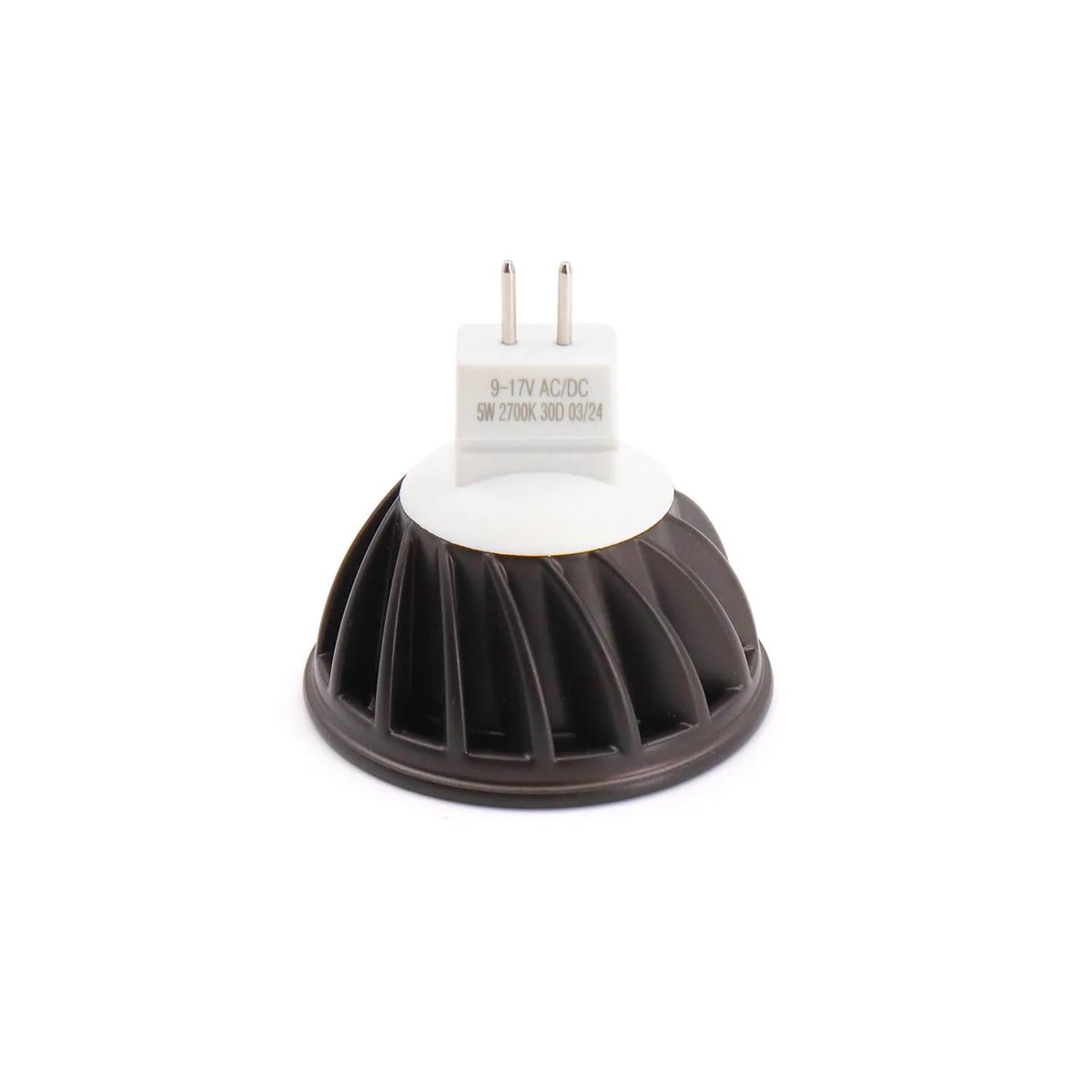

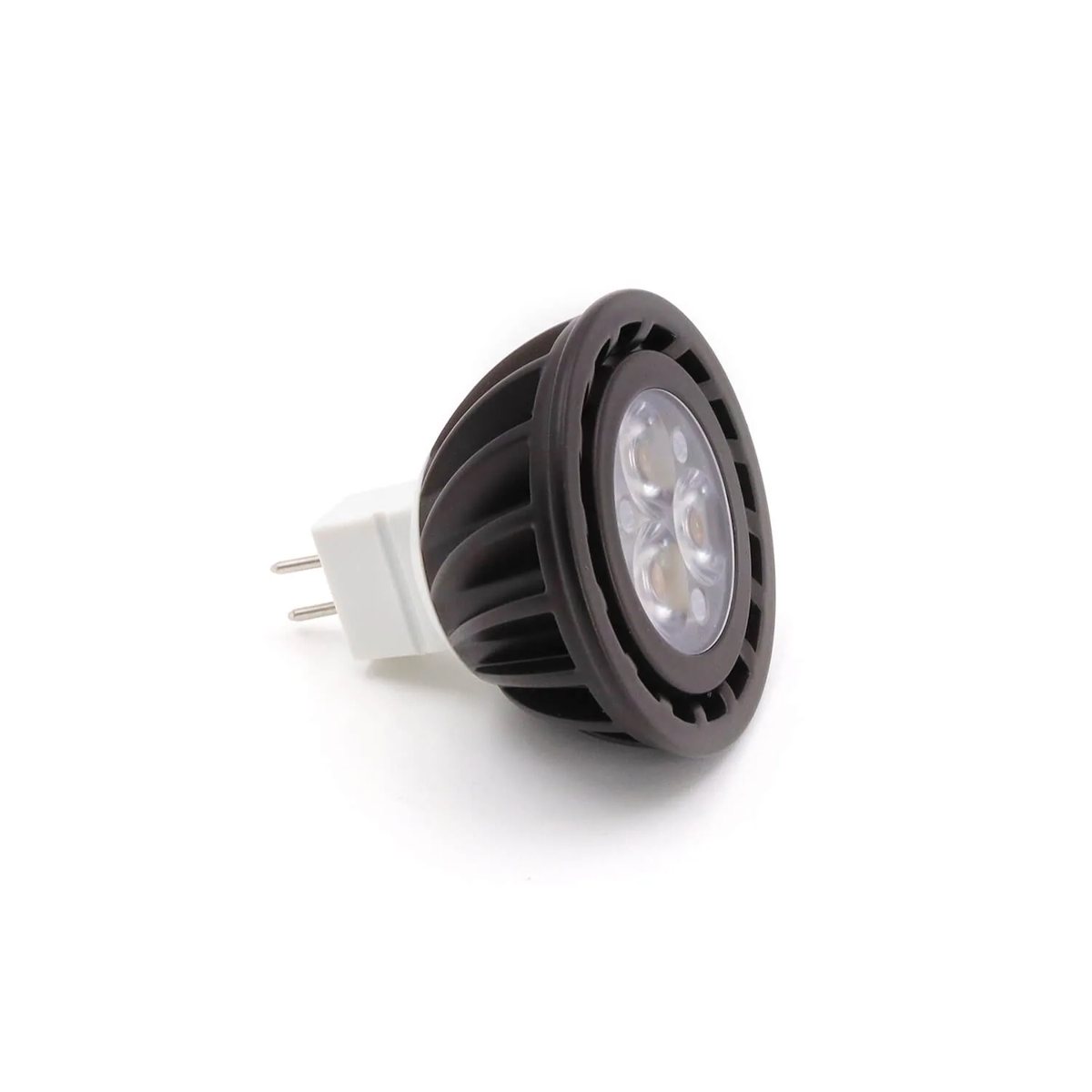

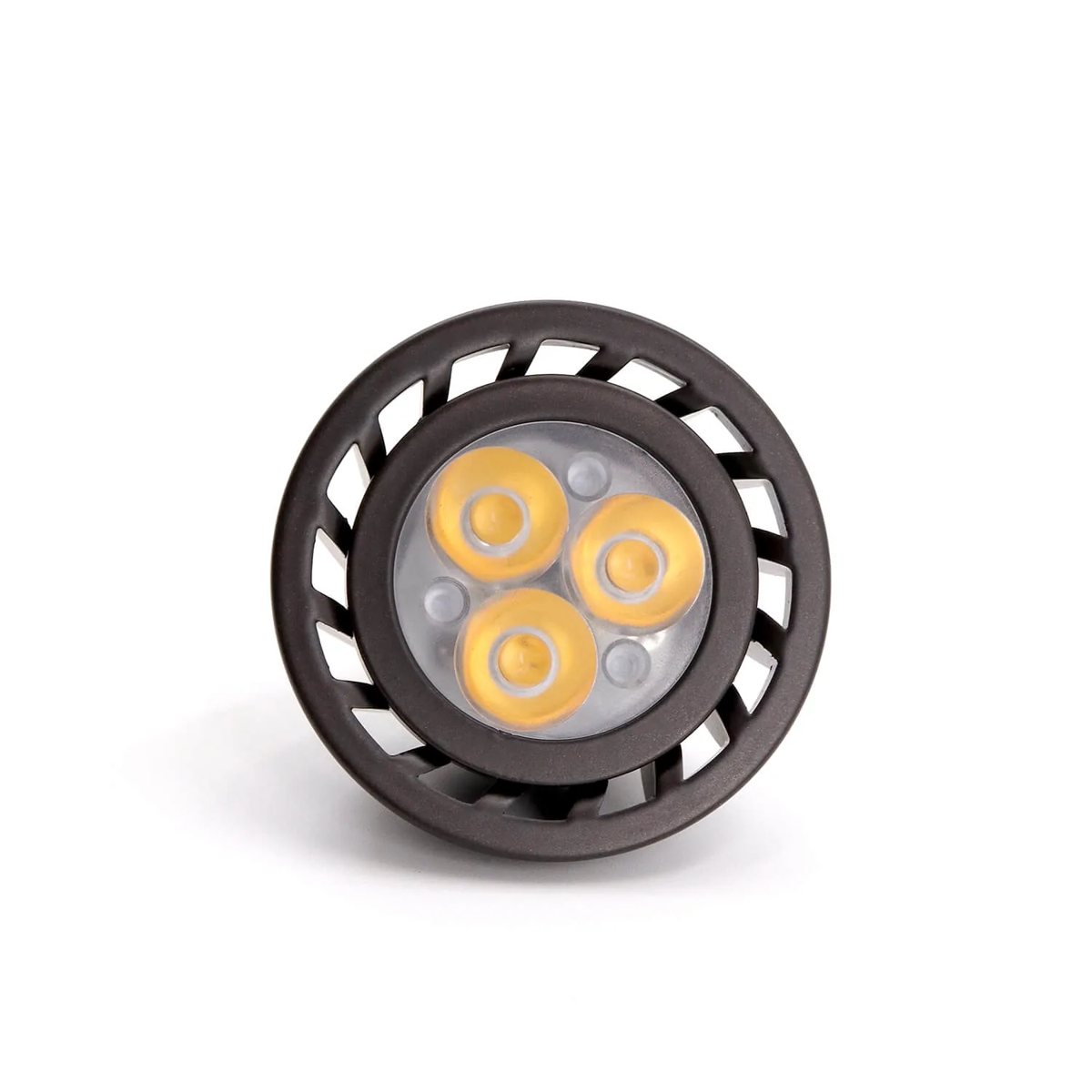

Accent lighting on shrubs, small ornamental trees and architectural details rarely needs a big lamp. The CLS TLL16 at 4.5 watts is a tornado style MR16 that CLS lists as the replacement for a 20 watt halogen. You choose the color temperature, 2700K or 3000K, and the beam, 15°, 30°, 45° or 60°, when ordering.
4.5 watt or 5.5 watt TLL16?
The only sibling is the TLL16 at 5.5 watts, which CLS rates against a 35 watt halogen. Both share the same body, base, color temperatures and beam options. Use the 4.5 watt where the old fixture held a 20 watt lamp or where the target is close and small. Pick the 5.5 watt when you need a bit more punch on a taller subject.
Which beam angle should I pick?
The 15° and 30° beams concentrate the light for narrow subjects such as a column, a sign post or a single trunk. The 45° and 60° beams spread it across a wider shrub or a section of wall. The lamp uses a GU5.3 bi-pin base, a die-cast aluminum body rated IP54, and runs from 9 to 17 volts.
Specifications
| CLS part number | TLL16 (4.5W) |
|---|---|
| Family | TLL16 tornado style MR16: TLL16 (4.5W), TLL16 (5.5W) |
| Wattage | 4.5W |
| Halogen equivalent | 20W |
| Lamp type | MR16, tornado style |
| Base | GU5.3 bi-pin |
| Color temperature | 2700K or 3000K, chosen when ordering |
| CRI | 82 or higher at 2700K; 84 or higher at 3000K |
| Beam angle | 15°, 30°, 45° or 60°, chosen when ordering |
| Input voltage | 9 to 17V AC |
| Body | Die-cast aluminum housing |
| IP rating | IP54 |
| Dimming | Dimmable with most magnetic (MLV) transformers; DC voltage dimming |
| Operating temperature | minus 13°F to 104°F |
| Lumen maintenance (L70) | 50,000 hours |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Find more MR16 and other LED light sources, and confirm wire size for the run with the low voltage wire calculator.
