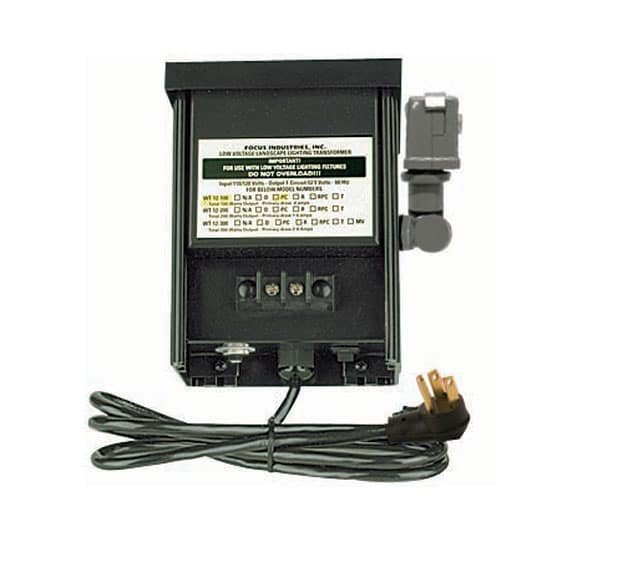

Weatherproof Transformer 300 Watt Single Circuit 277V

MATERIAL/FEATURES
• UL1838 and UL1598 Listed

• 100 watt output to 1200 watt output models available

• Heavy duty extruded 6063-T6 aluminum enclosure

• Lockable slide cover

• Rain Tight NEMA 3R rated

• LED indicators for instant recognition of 120 volt and 12 volt power

• Photocell Ready with quick connector

• Mounting plate and hardware supplied for easy installation

FINISH
• Black polyester powder coat; optional polyester powder coat options available

ELECTRICAL

• Copper Shielded Isolation/Insulation type – no contact between 120 volt & 12 volt windings.

• 1500 volt isolation between all windings and ground

• Electrical Grade M19 steel for superior electrical and magnetic properties

• Strip copper secondary windings for lower temperature rise.

• Single phase, open core and coil

• Resettable magnetic circuit breaker for overload and short circuit protection

• 120 volt primary, 12.5 volt secondary 50/60 hertz/cycle standard

• 6 foot 18/3 SJT-WA weatherproof grounded power cord with flat angle plug

• On/Off rocker switch
