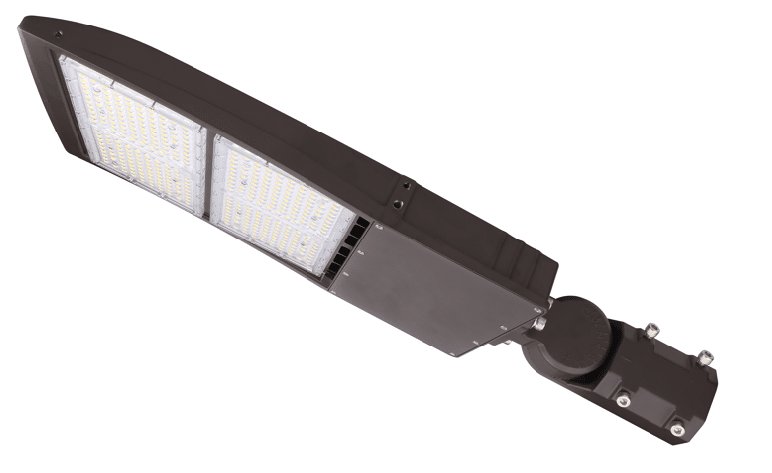

LED Area Light-5 Outdoor Area Light

High-performance driver features short circuit and over temperature protection with integral surge protection (6kV). Lumen Output Range
Wattage Range
Efficacy Range (LPW)
Weight lbs (kg)
• Rugged die-cast aluminum housing for
maximum durability and reliability.
• IP65 rated luminaire protects integral
components from harsh environments.
• Shipping weight: 10.8 lbs to 17.2 lbs in
carton.
• Premium engineered IP65 rated acrylic optic
assemblies deliver Type 3 or 5 distributions.
• Zero uplight with pole mount arm.
• Available in 5700K, 5000K, 4000K
and 3000K color temperatures per
• Minimum CRI of 70.
• High-performance driver features short circuit
and over temperature protection with integral
surge protection (6kV).
• 1-10V dimming (10% – 100%) standard.
• Standard Universal Voltage (120-277 VAC)
Input 50/60 Hz.
• Total harmonic distortion: <10%
• Operating temperature: -40°C to +50°C (-40°F
to +122°F).
• Power factor: >0.90
• Input power stays constant over life.
• Optional 10KV surge protection device meets a
minimum.
• High-efficacy LEDs mounted to metal-core
circuit board to maximize heat dissipation.
• Photocell and Motion Sensor
• Bypass cap.
• Mounting method ships separately and can be
quickly connected to the luminaire.
• Wiring leads extended out of the main
housing eliminating the need of opening the
luminaire electrical chamber.
• Utilizes B2 pole drill pattern for arm
mounting.
• Utilizes adjustable slip fitter for mast arm or
tenon mounting.
• Optional die-cast slip fitter allows for
mounting onto a 2.3/8” O.D. tenon allowing
for tilting up to 90 degrees.
• Luminaires carry a 5-year limited
warranty. Complete warranty terms are
located on our website.
• Listed to UL.
• Suitable for wet Locations.
• IP65 rated Luminaire per.
• 3G rated for ANSI C136.31 high vibration
applications are qualified.
• DesignLights Consortium® (DLC) qualified
product.
13,200 – 42,300
100W – 300W
132 – 141

LED Area Light
10.8(4.9)-17.2(7.8)
