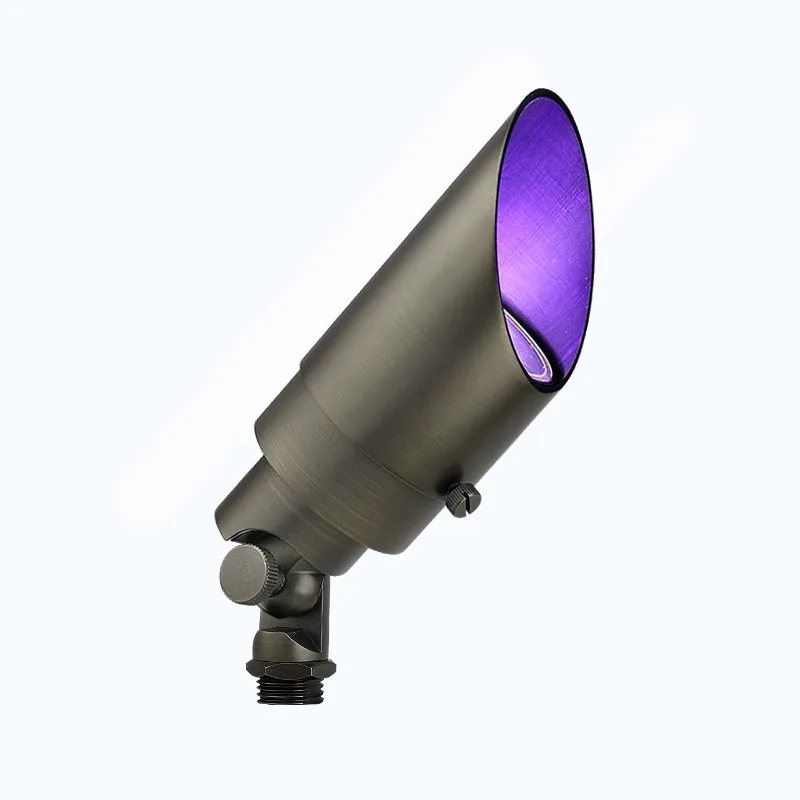

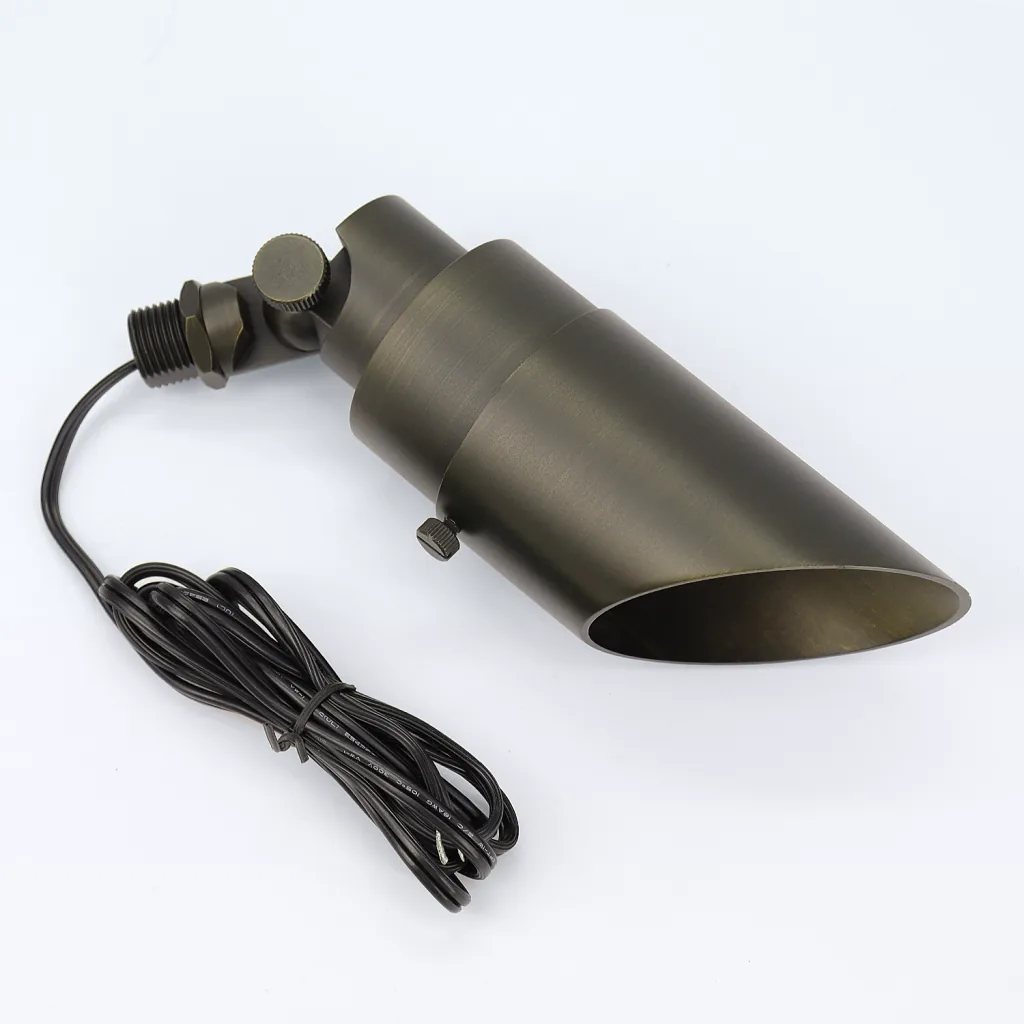

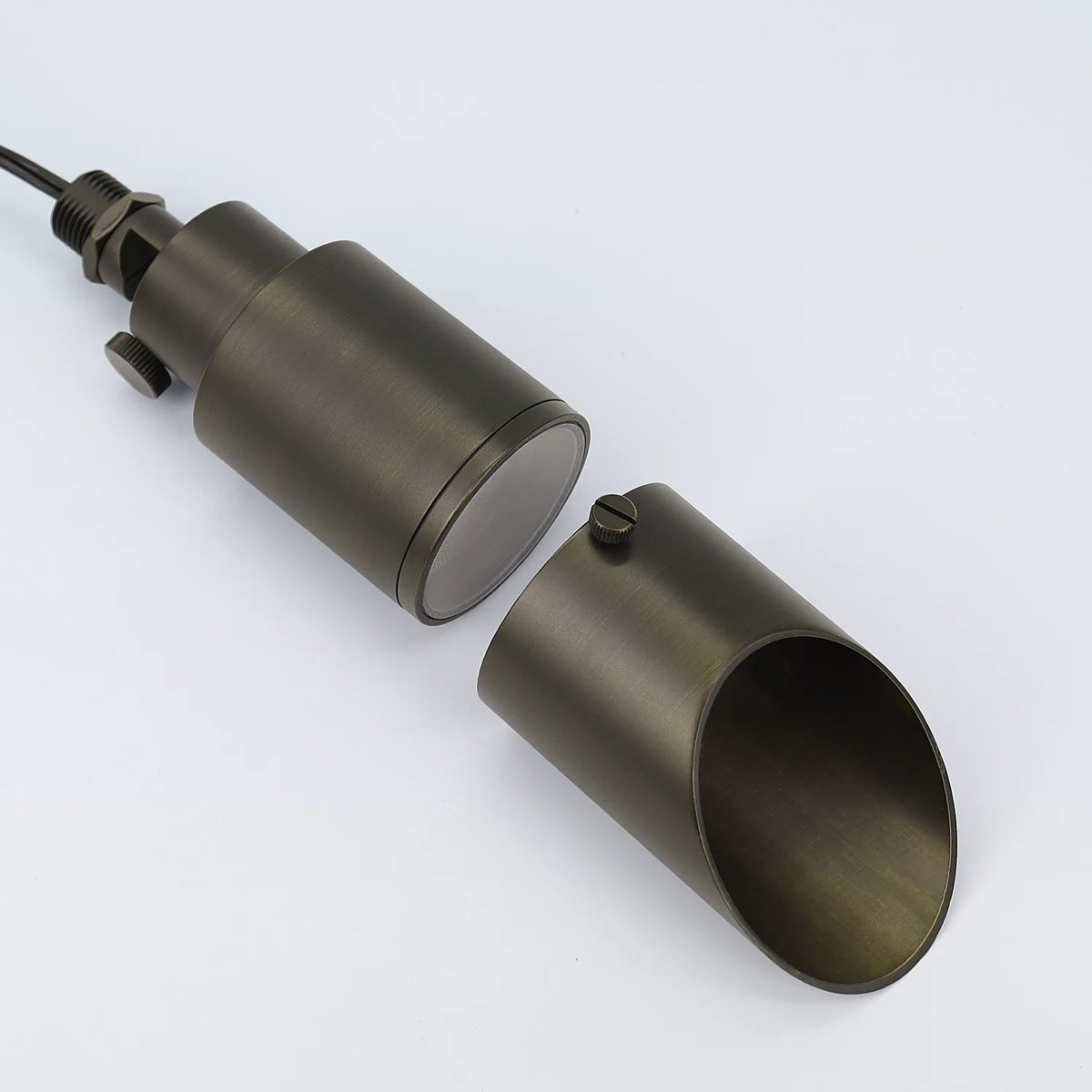

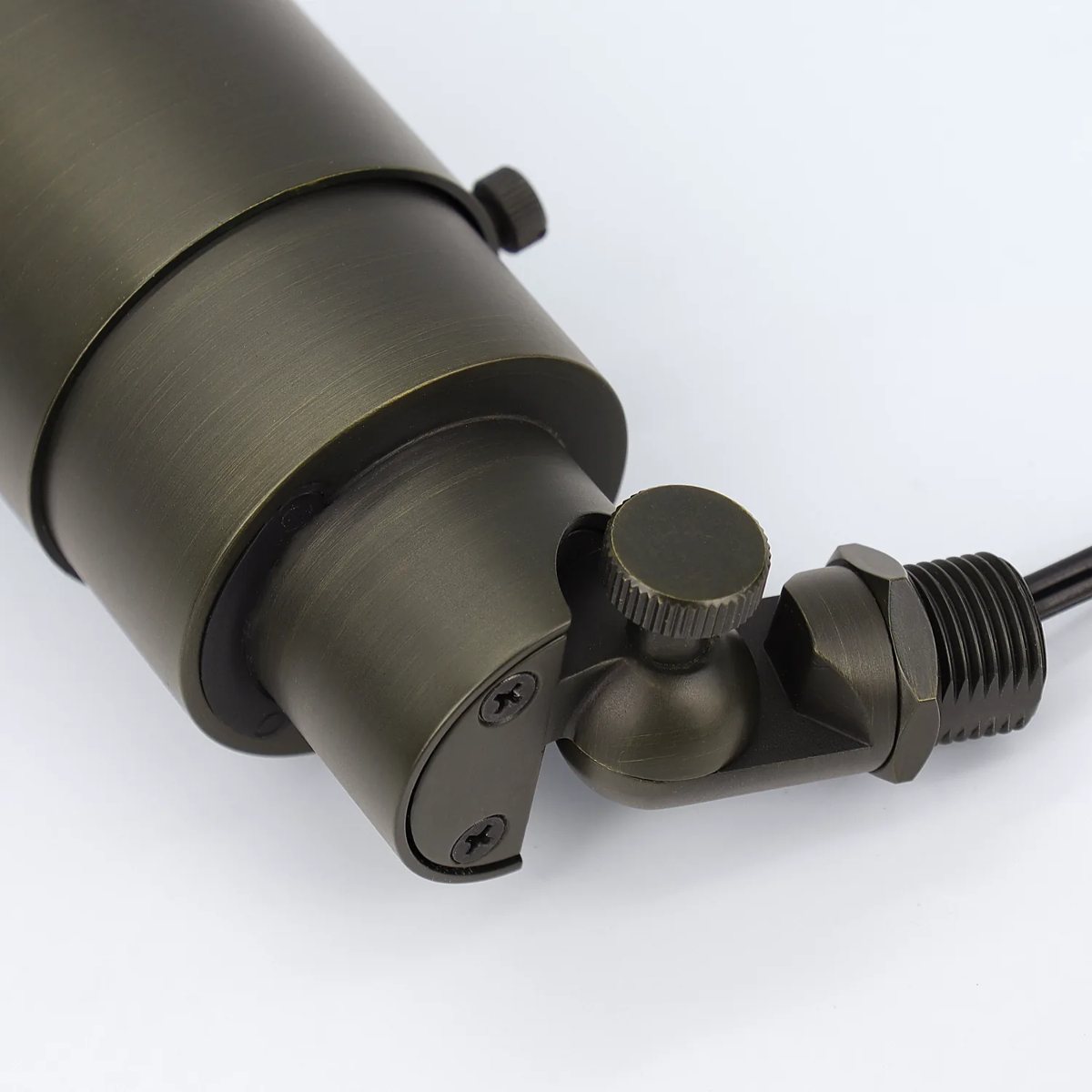

A tall canopy or a multistory facade needs real output, and seasonal events often call for color. The CLS E01B Edge Series is a 20W solid brass integrated up light rated at 1200 lumens, with tunable white from 2700K to 5000K plus RGB color under Bluetooth control.
Can one fixture handle both warm white and color?
Yes. The RGBWW engine produces adjustable white for everyday use and full color for holidays, events or a signature color, with dimming from 1% to 100%. You change the scene over Bluetooth rather than relamping or adding a second fixture.
Which beam angle suits a tall tree versus a facade?
CLS offers 24, 36 and 60 degree beams. Use 24 degrees to reach up into a tall, narrow canopy, 36 degrees for a broad tree, and 60 degrees to wash a wall or facade.
Is a 20W brass fixture built for wet locations?
The heavy brass housing is fully sealed and gasketed against rain, irrigation spray and soil moisture, rated IP65, and the mass of the brass helps pull heat away from the LEDs. It accepts 12 to 17V AC or DC.
Specifications
| CLS part number | E01B |
|---|---|
| Type | Smart RGB plus tunable white integrated LED up light |
| Construction | Solid cast brass |
| Finish | Antique Bronze |
| Wattage | 20W |
| Lumens | 1200 lm |
| Color | RGBWW; white adjustable 2700K to 5000K |
| Dimming | 1% to 100% |
| Control | Bluetooth |
| Beam angle | 24°, 36° or 60° |
| Voltage | 12 to 17V AC/DC |
| Lens | Clear tempered, high-temperature glass |
| Ingress rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Explore more high output landscape up lights, and confirm coverage on tall targets with photometric design.
