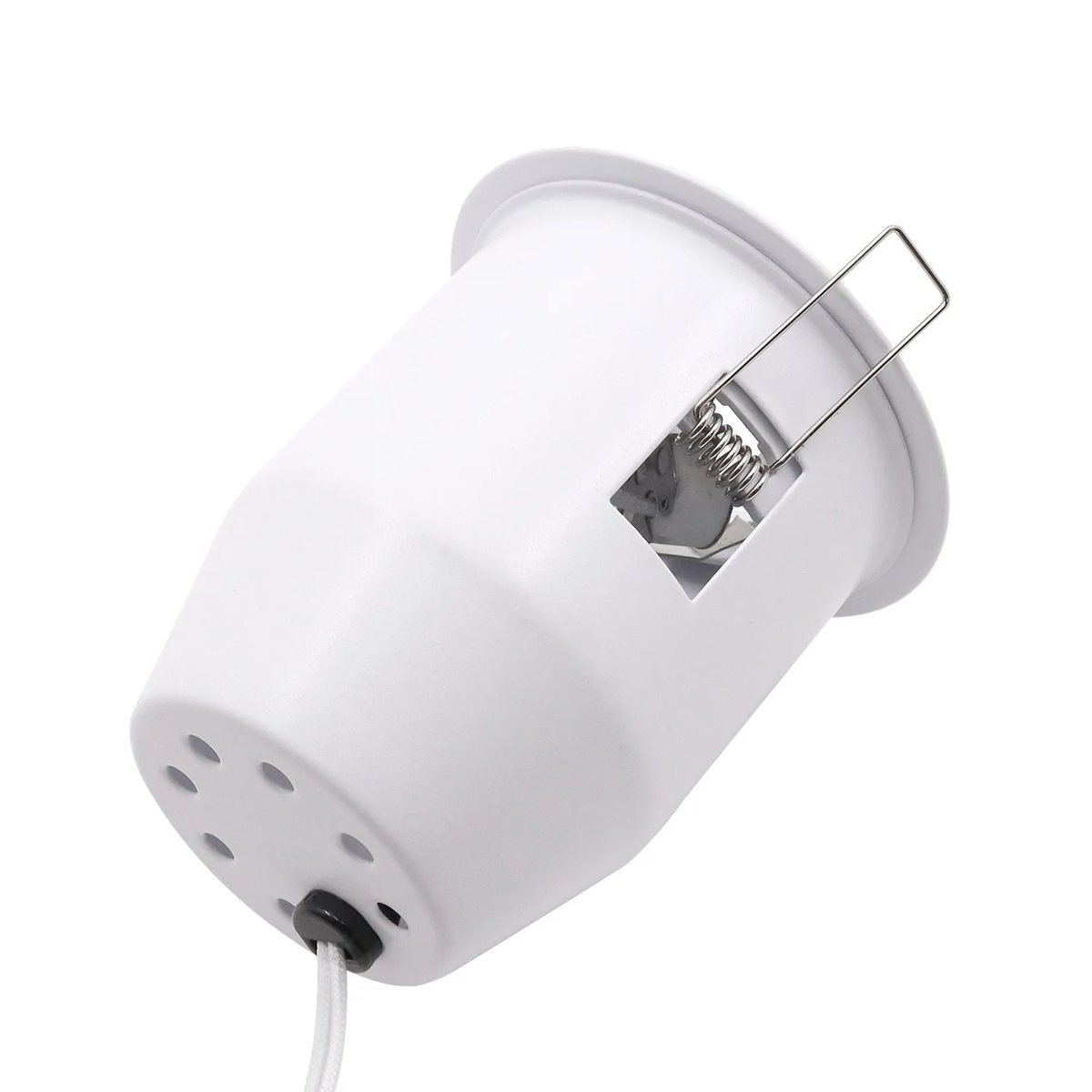

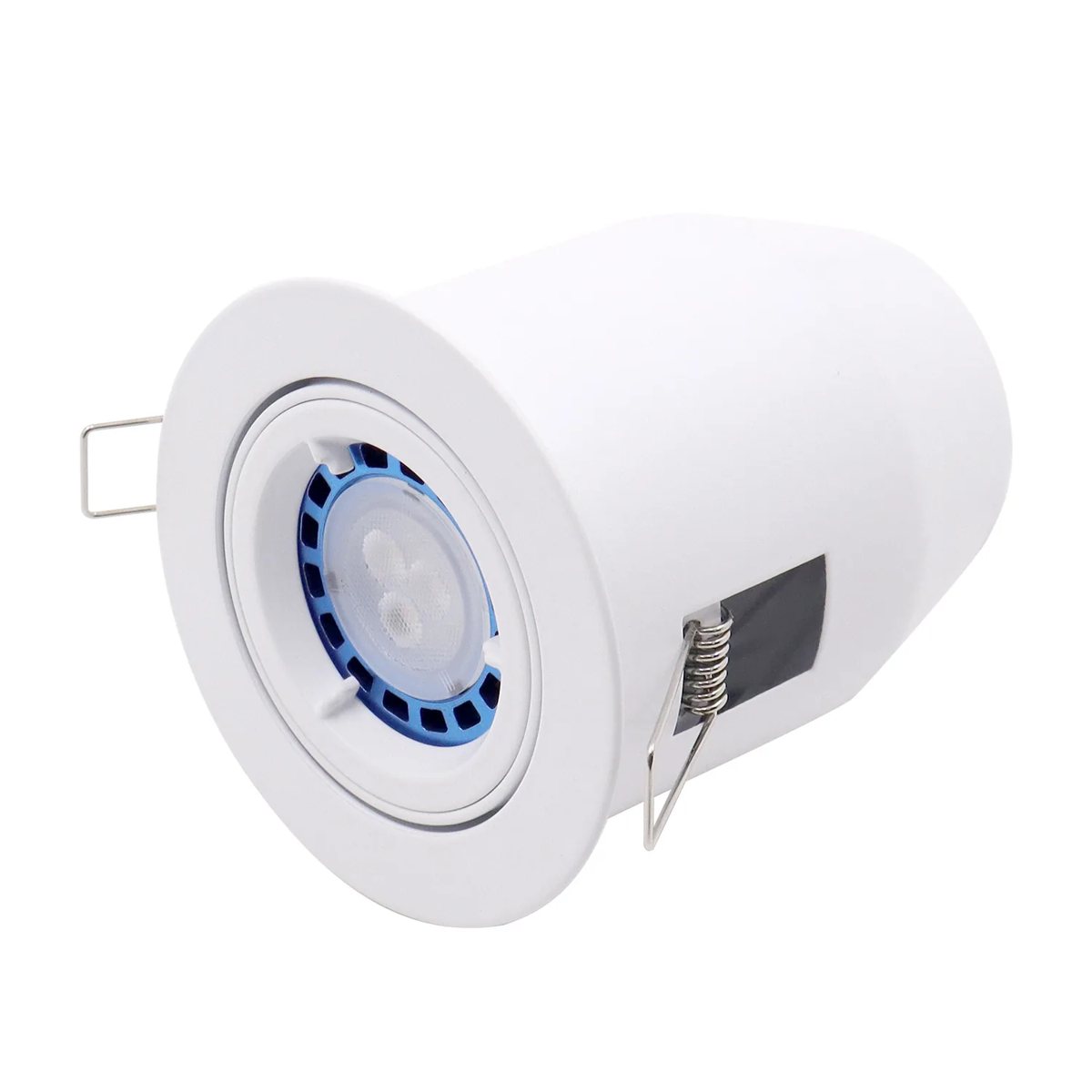

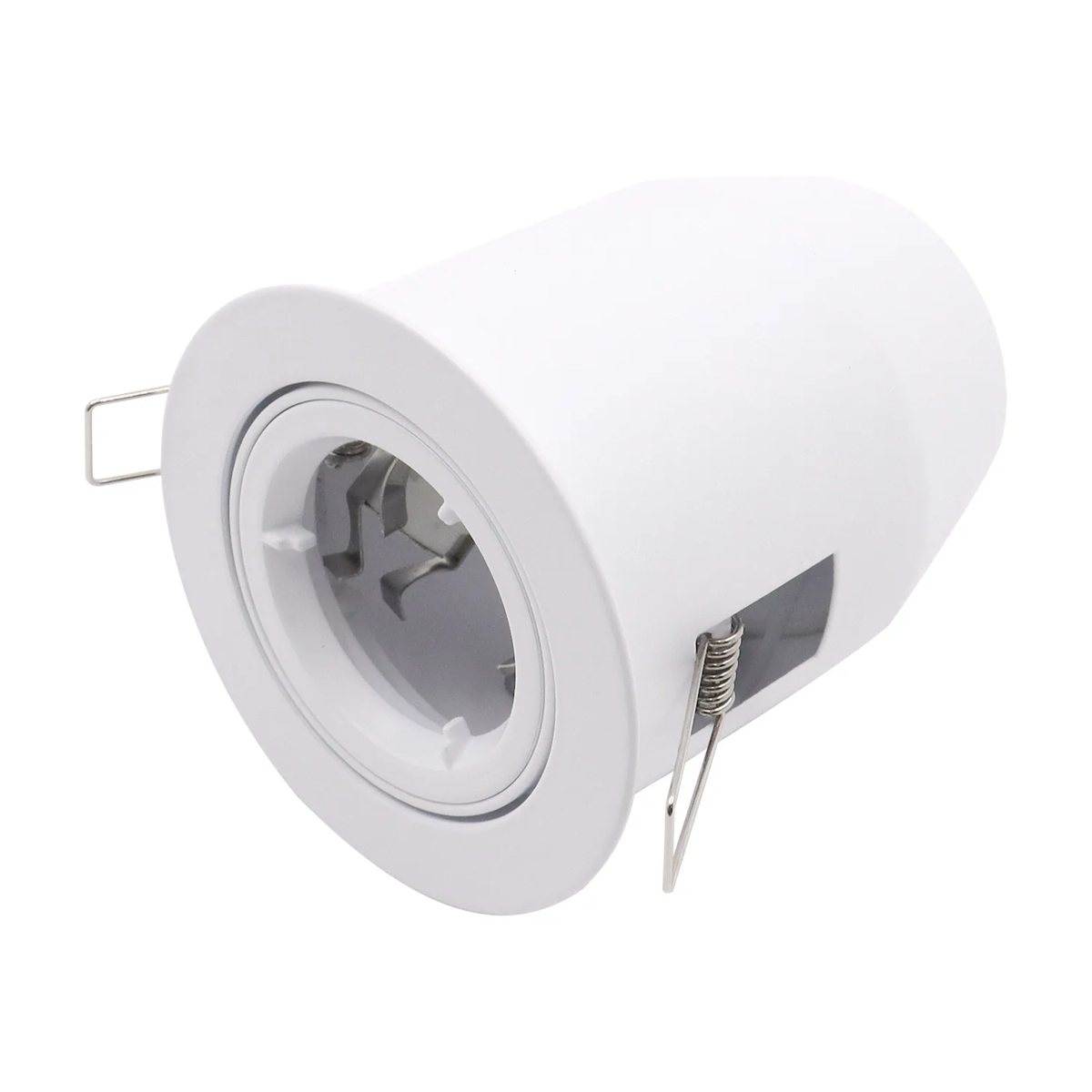

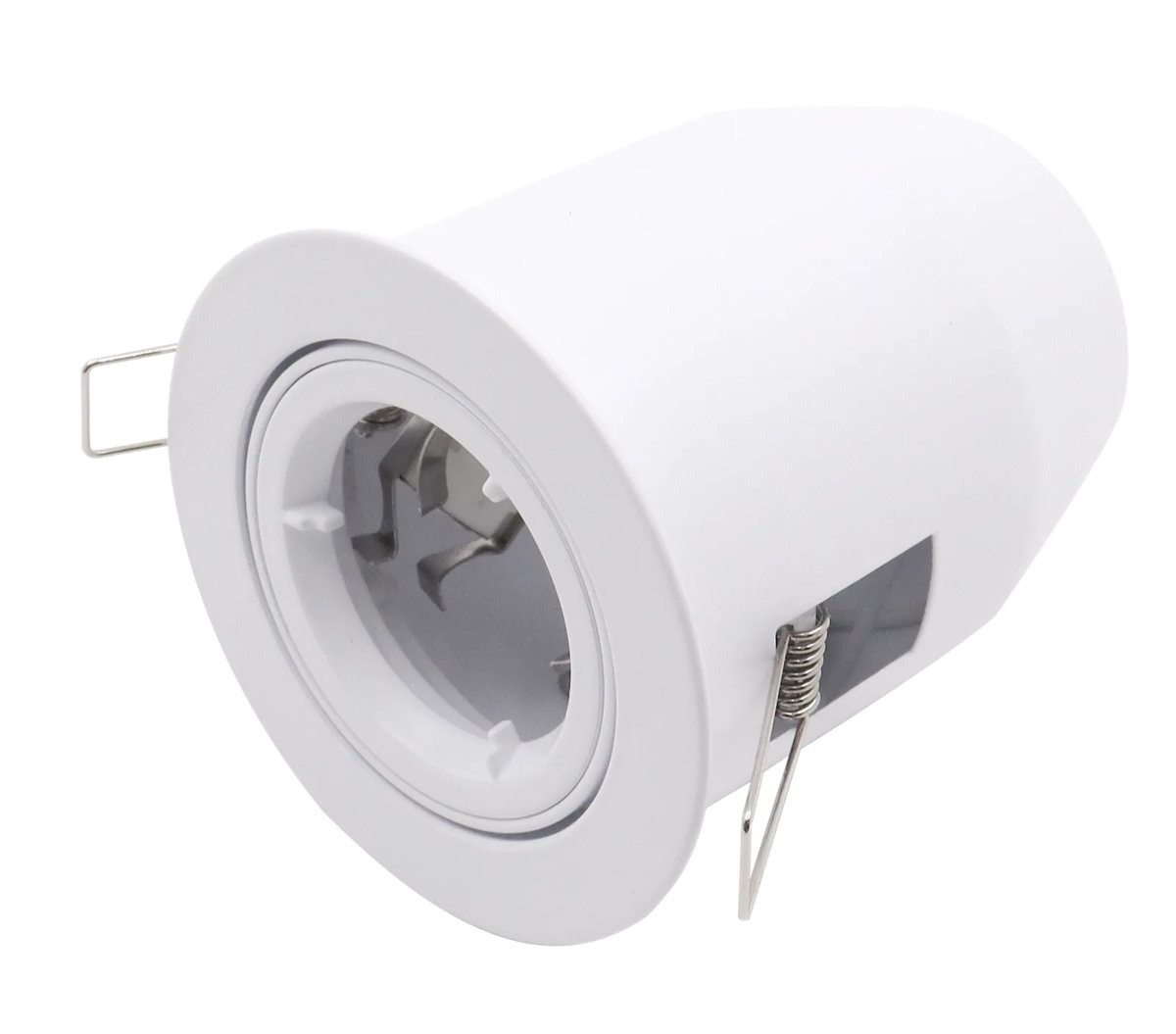

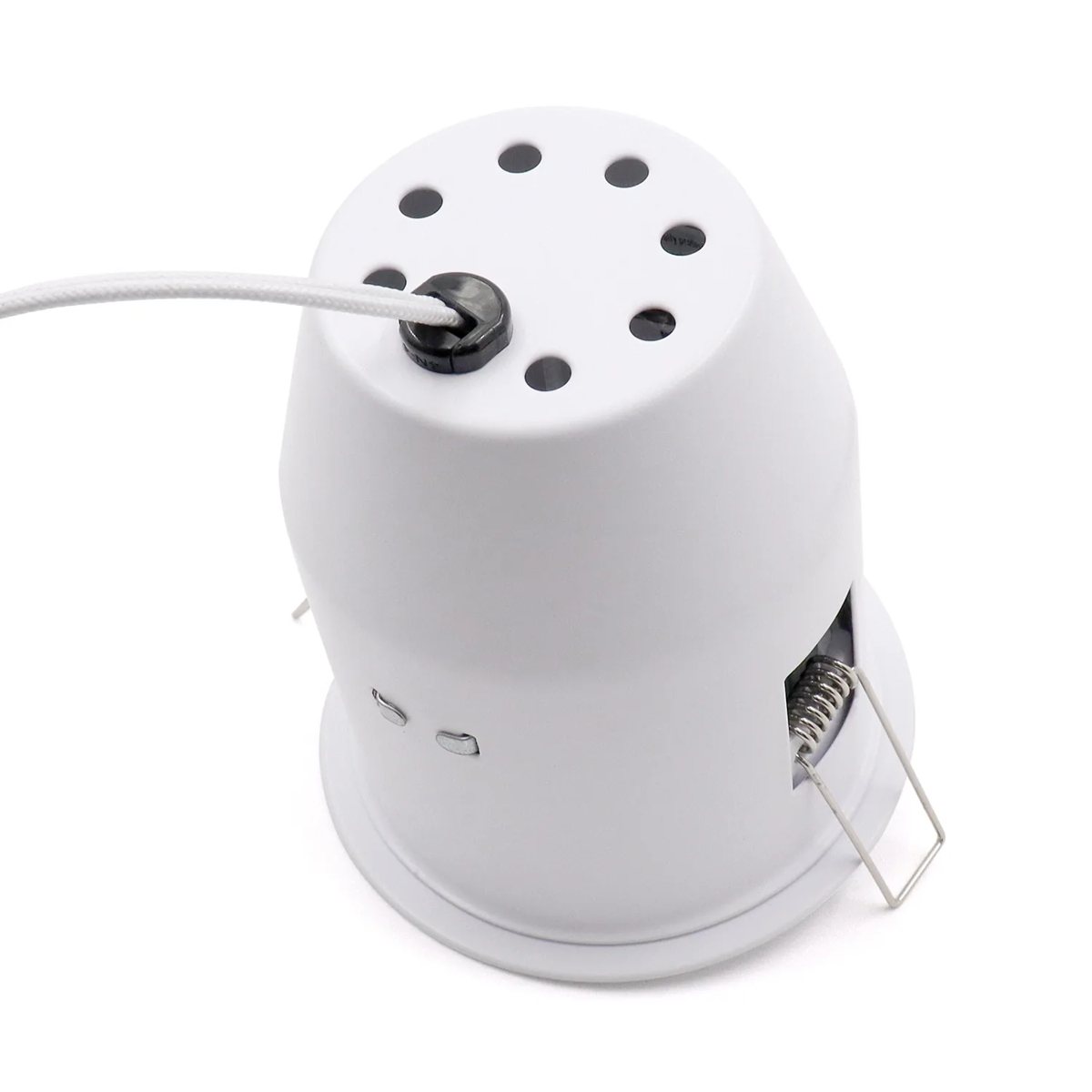

Porch ceilings, eaves and covered outdoor rooms still catch blowing rain and dust, so a ceiling fixture there should be sealed. The CLS CL01A is a recessed soffit downlight in solid cast aluminum with a white finish and an IP65 rating, built around a 12 volt MR16 lamp.
How does the CL01A differ from an adjustable soffit light?

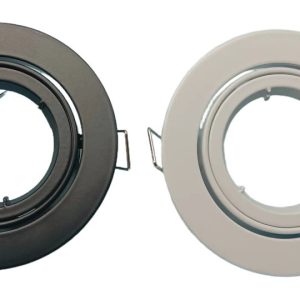

It is a fixed downlight that points straight down, and it is sealed to IP65 against water jets and dust. Pick it for exposed eaves and porch ceilings. When you need to aim at a wall from a dry, covered soffit, an adjustable model such as the CL02A is the better fit.
Does the deep lamp position reduce glare?
Yes. The lamp sits recessed in the housing, so the source is shielded from direct view as people walk underneath. That makes it comfortable over entries and seating.
What lamp and parts are included?
The ceramic GU5.3 socket with retaining clips takes an MR16 LED up to 8 watts or a halogen up to 50 watts, chosen for the beam and color you want. There is no lens, stainless steel clips hold it in the ceiling, and CLS includes a coupler.
Specifications
| CLS part number | CL01A |
|---|---|
| Type | Recessed soffit downlight |
| Construction | Solid cast aluminum |
| Finish | White |
| Socket | MR16 GU5.3 ceramic socket with retaining clips |
| Lamp | 12V MR16 LED up to 8W or halogen up to 50W |
| Lens | None |
| IP rating | IP65 |
| Included | Coupler |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Browse more commercial landscape lighting, and use the low voltage wire calculator to size the run feeding a row of soffit lights.
