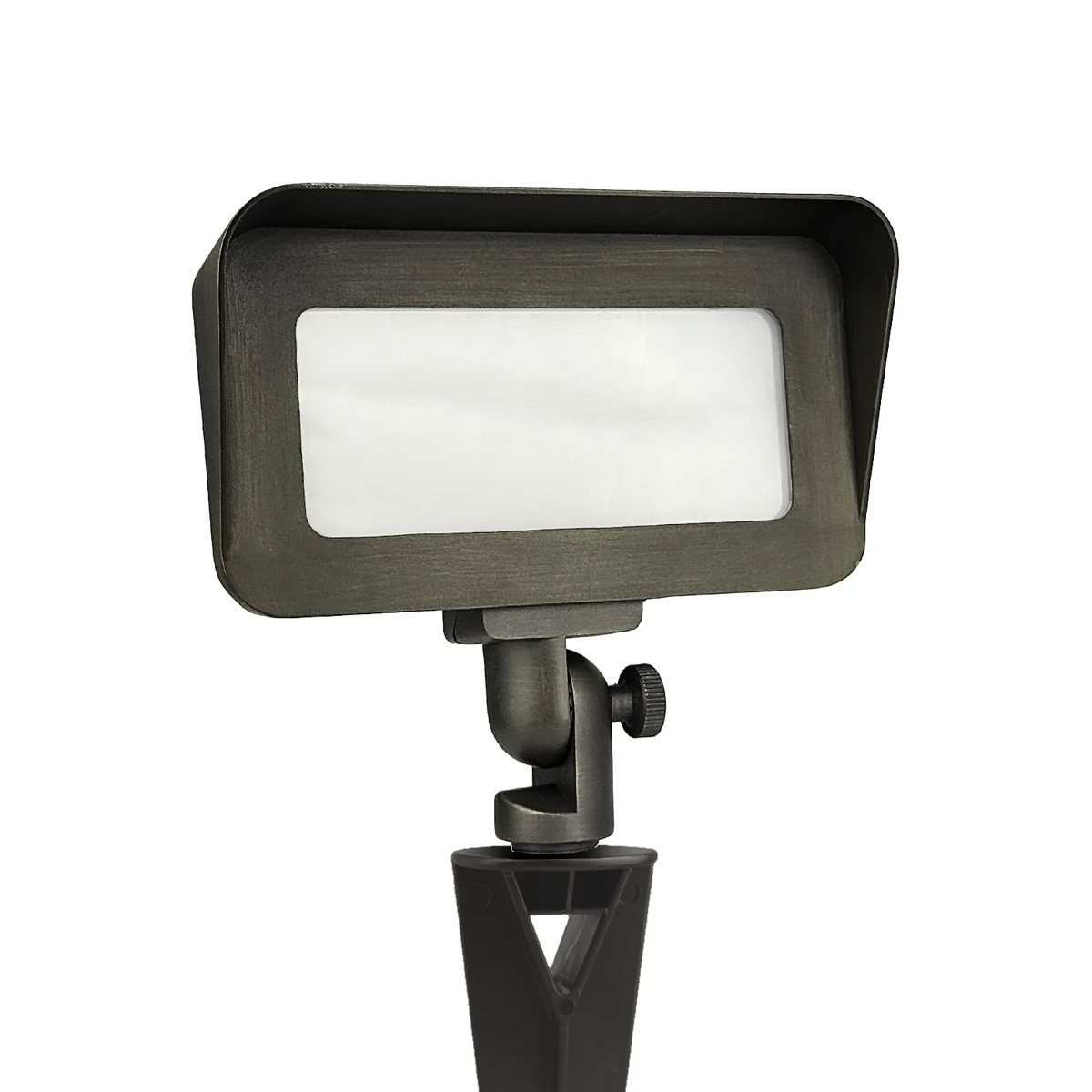

Building facades, large trees and wide garden beds rarely need the same brightness, and the right color often only becomes clear once the fixture is lit at night. The CLS E02M is an integrated LED flood in die-cast brass with onboard buttons that set both wattage and color temperature in the field.
Which wattage setting fits which target?
The four steps are 6, 12, 18 and 25 watts, with output up to 1500 lumens. Start low for a garden bed or small tree and work up for a tall wall or broad canopy. Being able to change the level on site means one model can cover most of the floods on a job.
Which color temperature for stone, wood or foliage?
Choose from 2700K, 3000K, 4000K and 6000K. Warm settings tend to flatter wood, brick and warm stone, while the cooler settings bring out green foliage and modern materials. Try them at night before you leave the site.
What does it need from the power supply?
The E02M runs on 12 to 17 volts AC or DC. Plan the transformer around the setting each fixture will actually use, and leave headroom in case you raise it later. The housing is IP65 rated with clear tempered glass and a 72 inch 18 gauge SPT-1W lead.
Specifications
| CLS part number | E02M |
|---|---|
| Light source | Integrated LED |
| Selectable wattage | 6W, 12W, 18W, 25W |
| Selectable color temperature | 2700K, 3000K, 4000K, 6000K |
| Lumens | Up to 1500 lm |

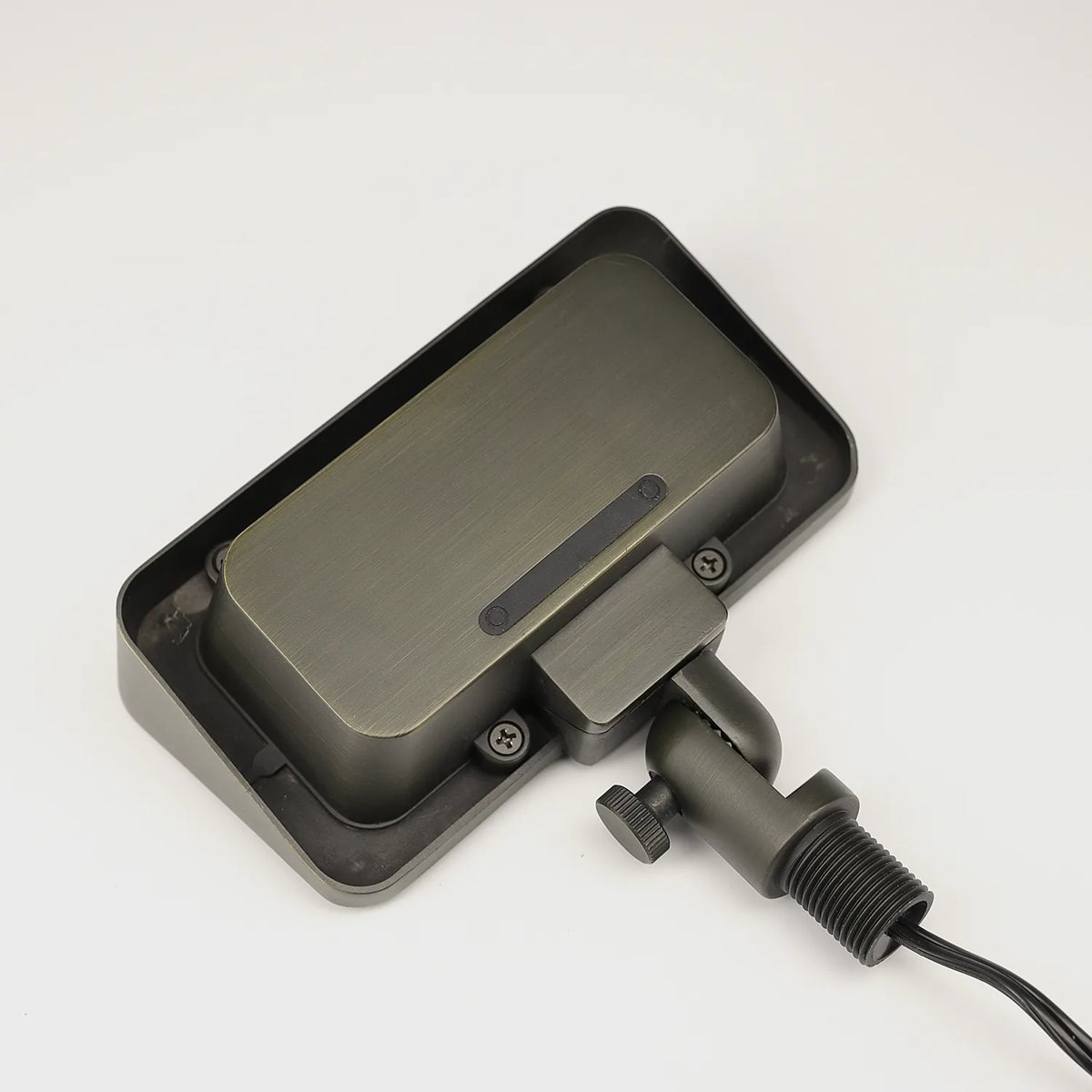

| Control | Onboard wattage and CCT buttons |
| Input voltage | 12 to 17V AC/DC |
| Construction | Die-cast brass |
| Finish | Antique Bronze |
| Lens | Clear tempered high temperature glass |
| IP rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare other LED flood lighting, and request photometric design when a facade or tree line needs a full layout.
