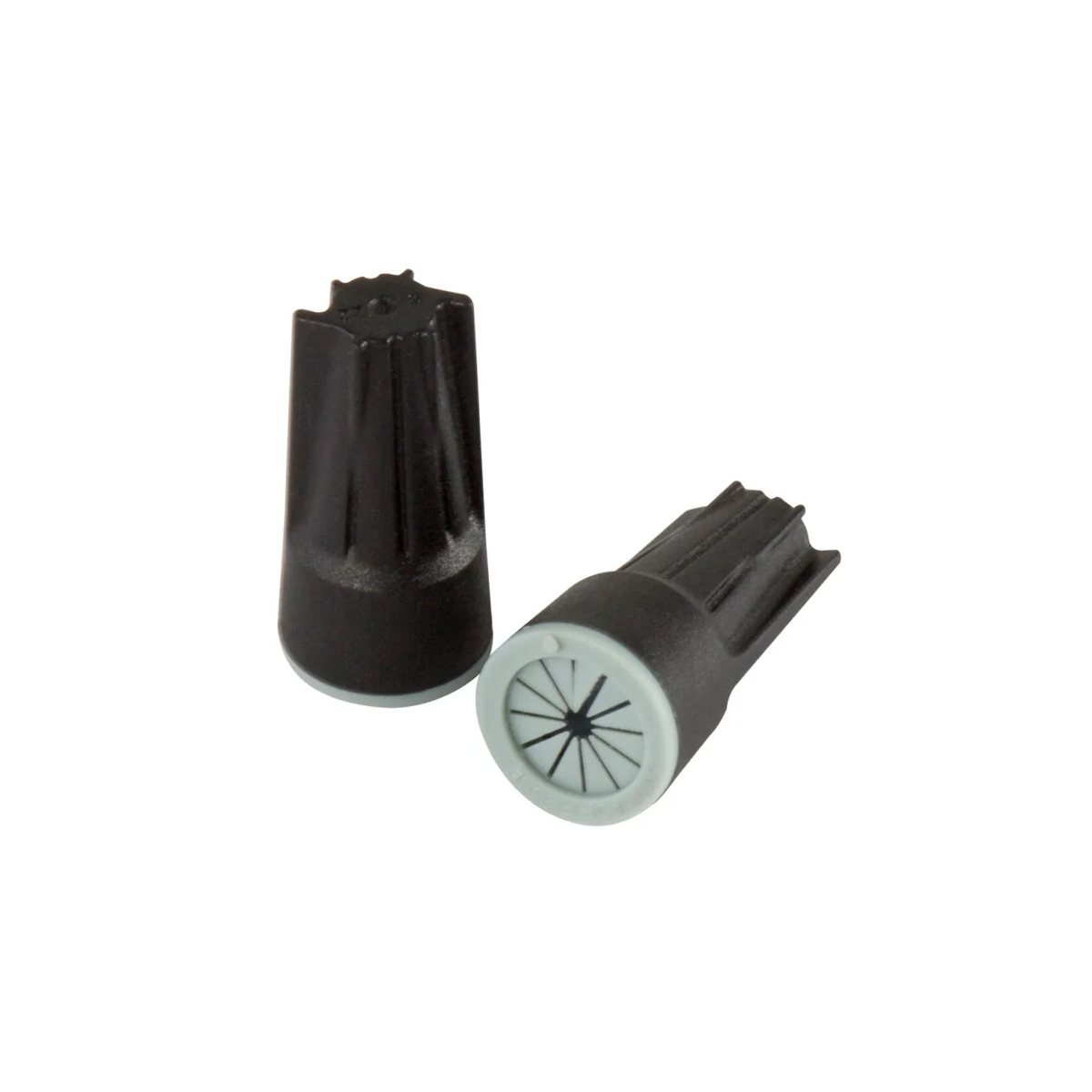

Main runs and fixture leads come together at every hub and tee on a low voltage system, and each of those joints needs a connector that fits the wire. The CLS A06S is a 100 pack of middle size wire connectors rated for 8 to 22 AWG conductors.
Which wire sizes does the middle size cover?
The A06S takes conductors from 8 AWG down to 22 AWG, so it handles heavier main line cable joined to 18 gauge fixture leads. Each connector measures 0.89 inch in diameter and 1.39 inches tall.
For lighter connections, such as fixture leads to 16 or 14 gauge cable, the small size A06XS covers 10 to 22 AWG in a more compact body.
How many connections does a pack cover?
One pack holds 100 connectors, enough for a full residential system or a stock of spares on the service truck. Plan one connector per joint and keep a few extra for repairs.
Specifications
| CLS part number | A06S |
|---|---|
| Product type | Wire connector, middle size |
| Wire range | 8 to 22 AWG |
| Dimensions | 0.89″ D x 1.39″ H |
| Pack quantity | 100 |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
See all landscape lighting cable and wiring, and confirm wire gauge for each run with the low voltage wire calculator.
