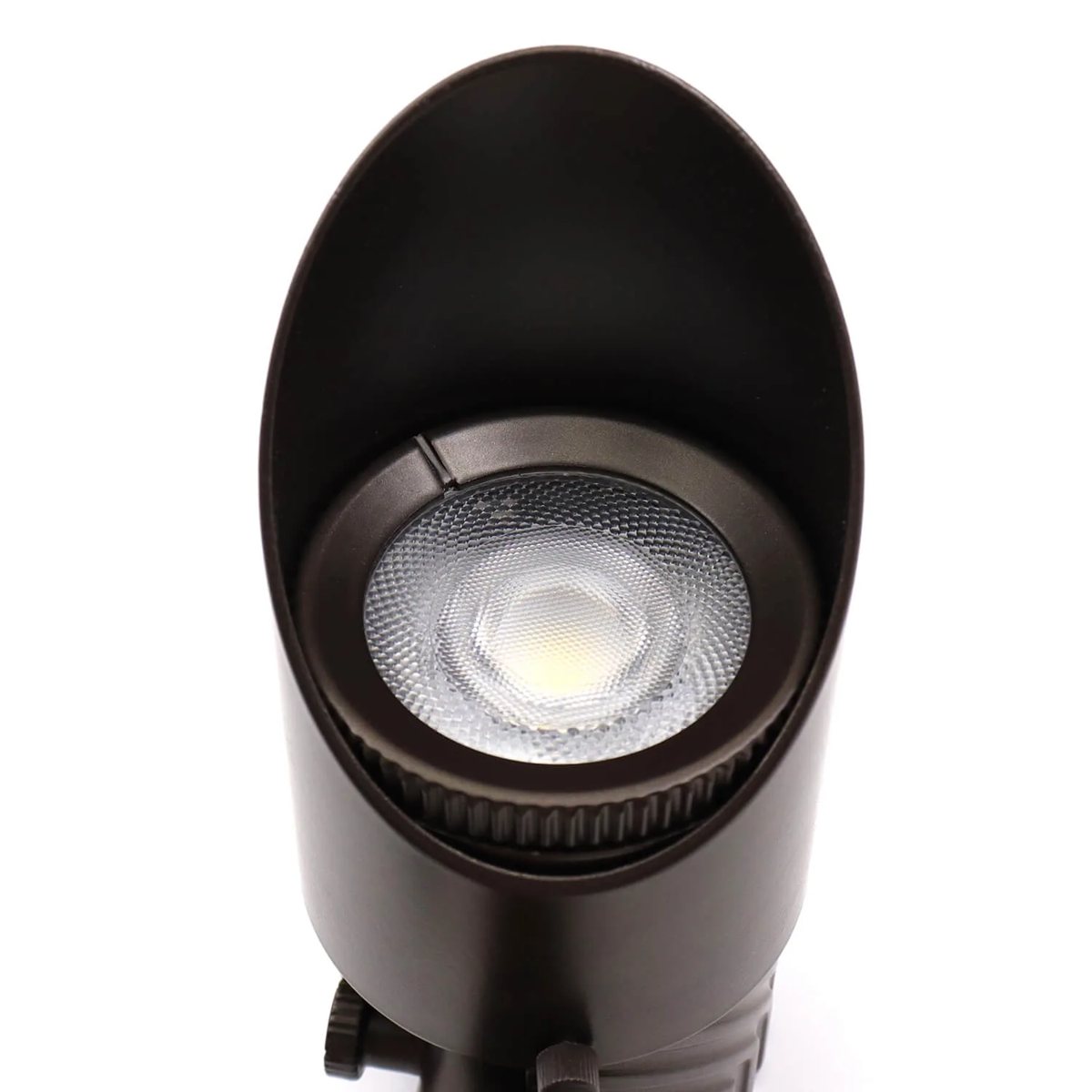

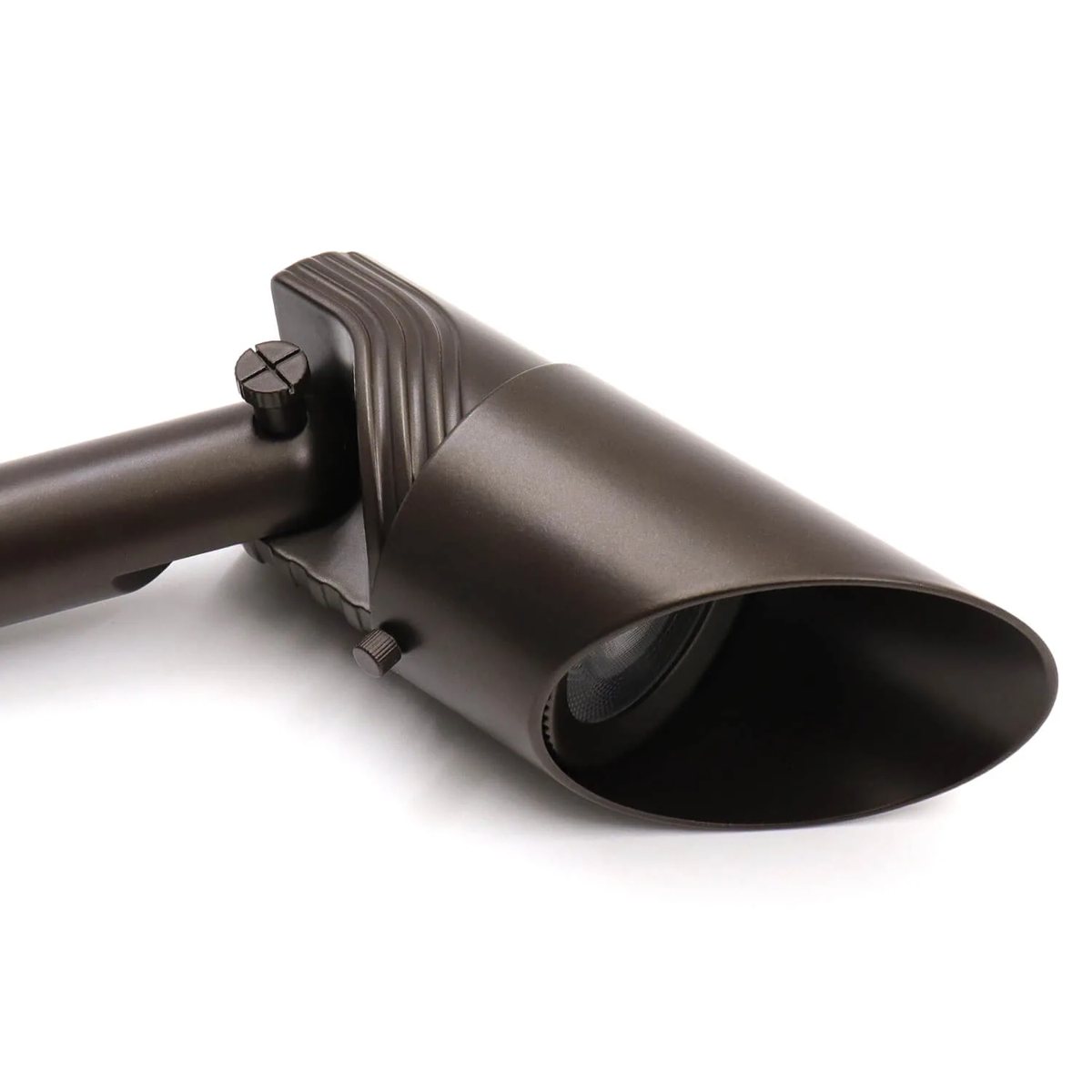

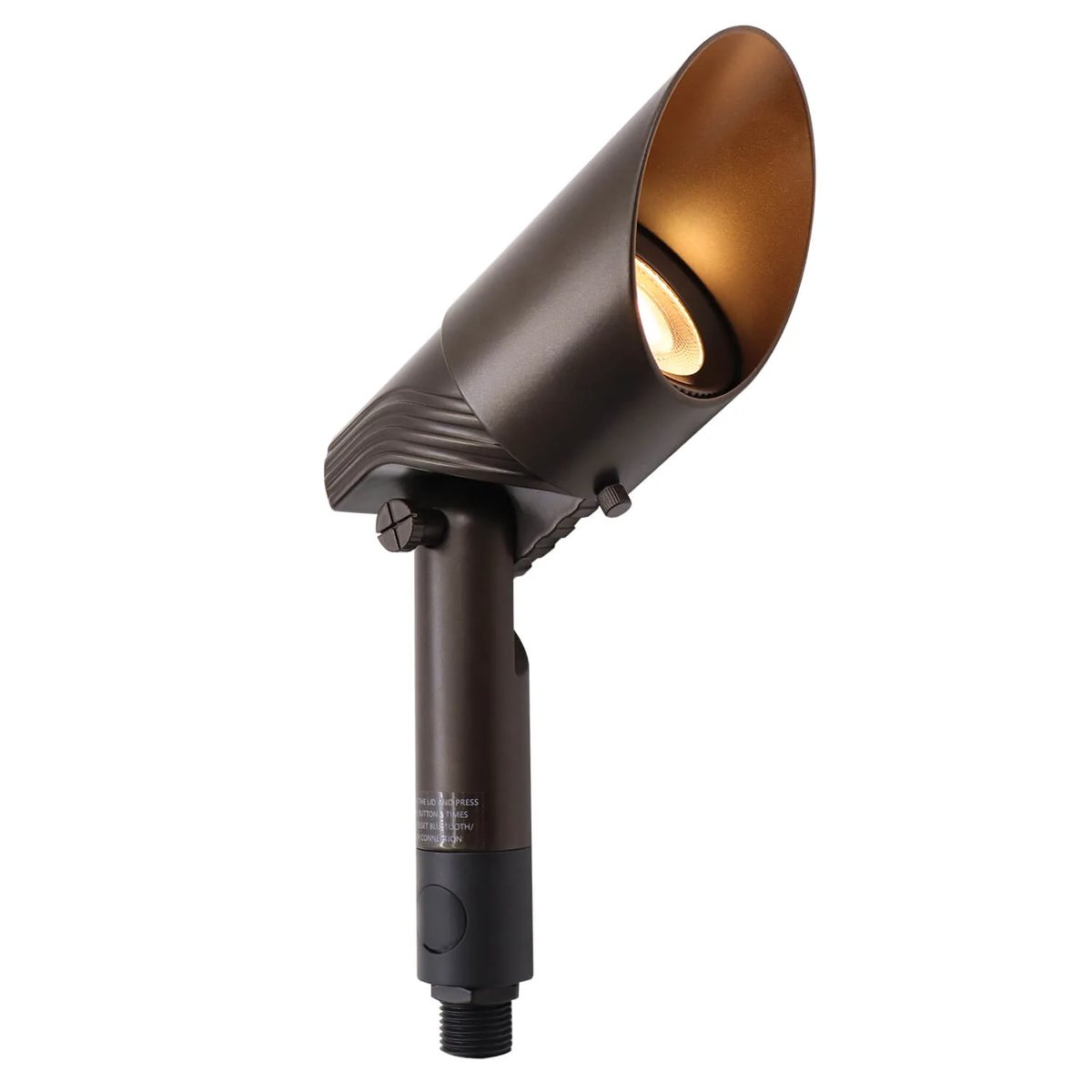

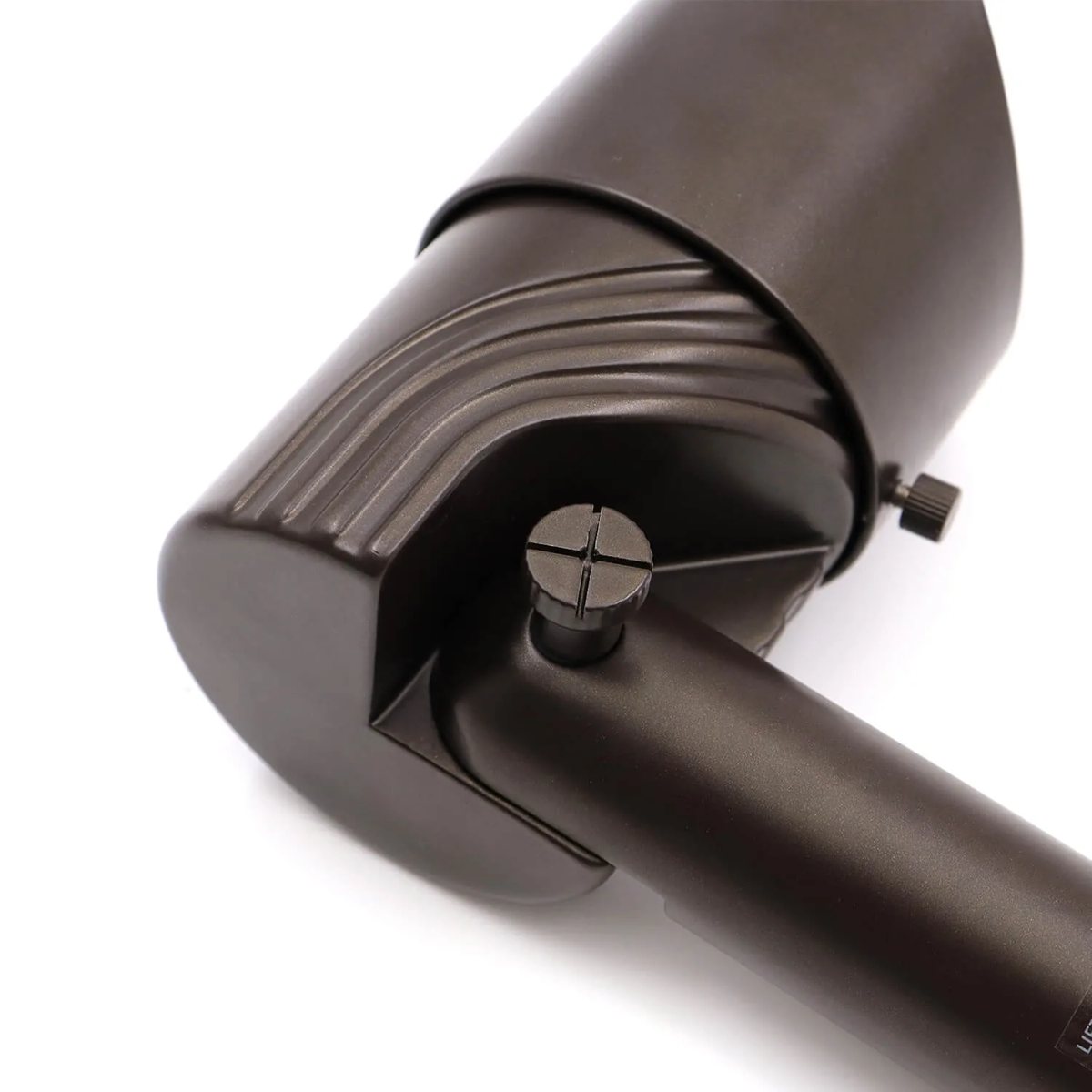

Specifying a separate fixture for every beam spread and brightness level adds up fast on a large property. The CLS IUL02 (part IUL02A) is a die-cast aluminum integrated LED spotlight whose output adjusts by hand up to 12W and whose optics change in the field, so one model can cover a wide range of targets.
How do the interchangeable lenses work?
Each fixture comes with multiple lenses: 24, 36 and 60 degrees. They swap by hand without tools, so you can run a tight 24 degree beam up a tall palm, open to 36 degrees for a medium tree and go to 60 degrees to wash a wall, all without reordering.
Why choose cast aluminum over brass for this spotlight?
Cast aluminum is a lighter material than brass and suits settings where a clean architectural finish fits the design. This one comes in an Antique Bronze finish with a clear tempered glass lens and an IP65 rating.
Will it stay bright at the end of a long run?
It accepts 9 to 17V AC or DC, so fixtures far from the transformer still receive enough voltage to operate normally. Color temperature is 2700K with CRI 85.
Specifications
| CLS part number | IUL02A |
|---|---|
| Type | Integrated LED spotlight |
| Construction | Solid cast aluminum |
| Finish | Antique Bronze |
| Wattage | Manually adjustable, up to 12W |
| Color temperature | 2700K |
| Beam spread | 24°, 36°, 60° (interchangeable lenses included) |
| CRI | 85 |
| Voltage | 9 to 17V AC/DC |
| Lens | Clear tempered, high-temperature glass |
| Ingress rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
See more integrated LED spotlights, and use photometric design to decide which lens each target needs.
