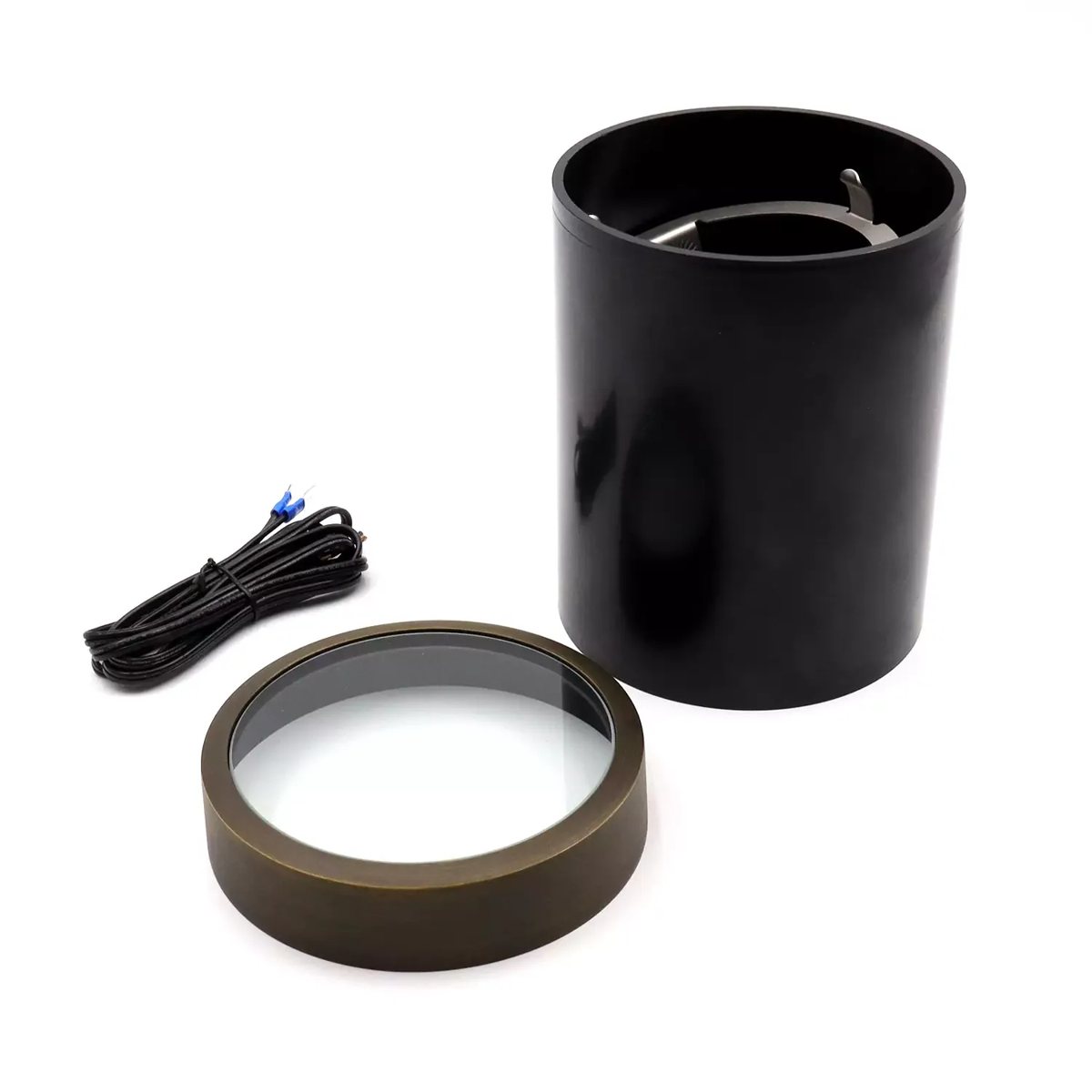

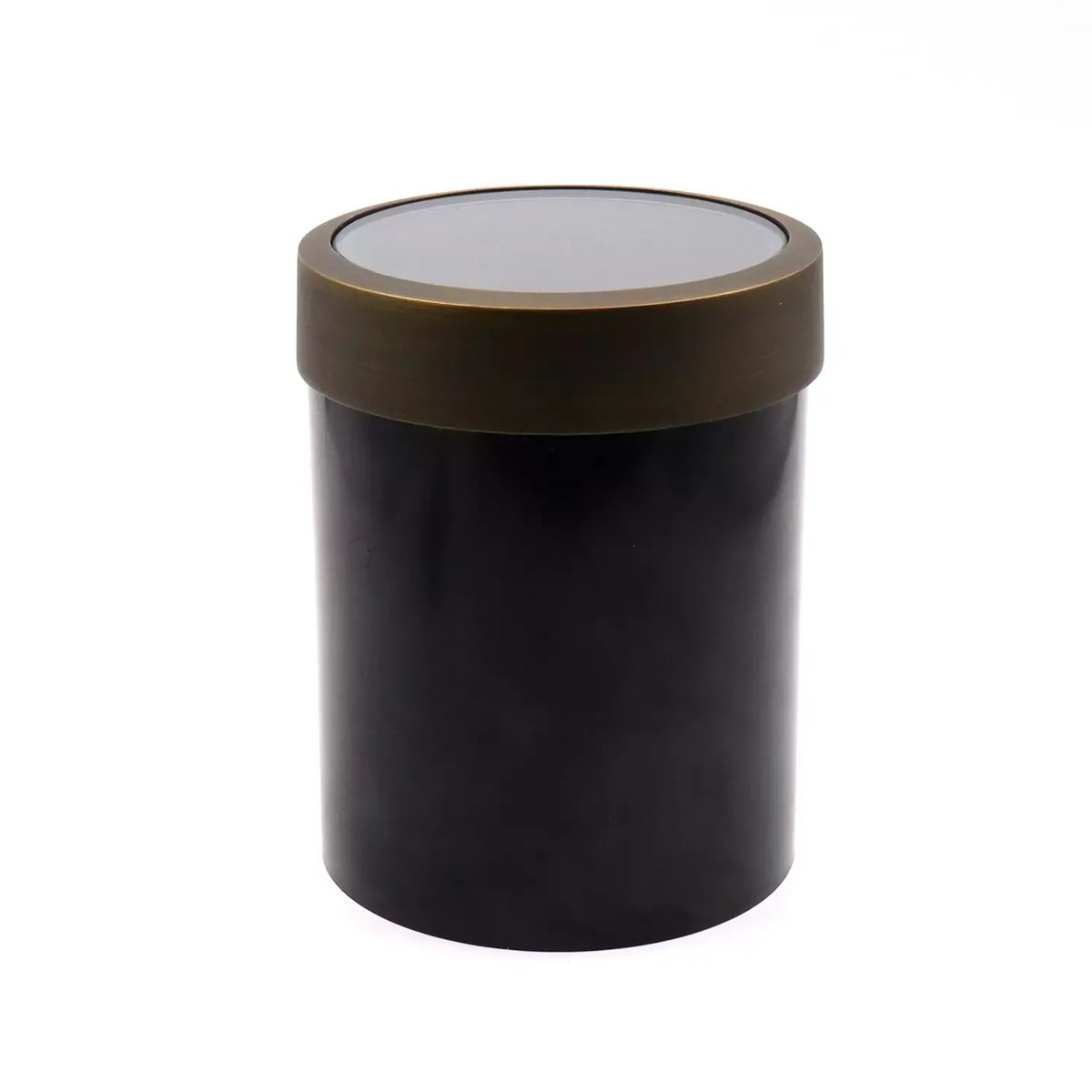

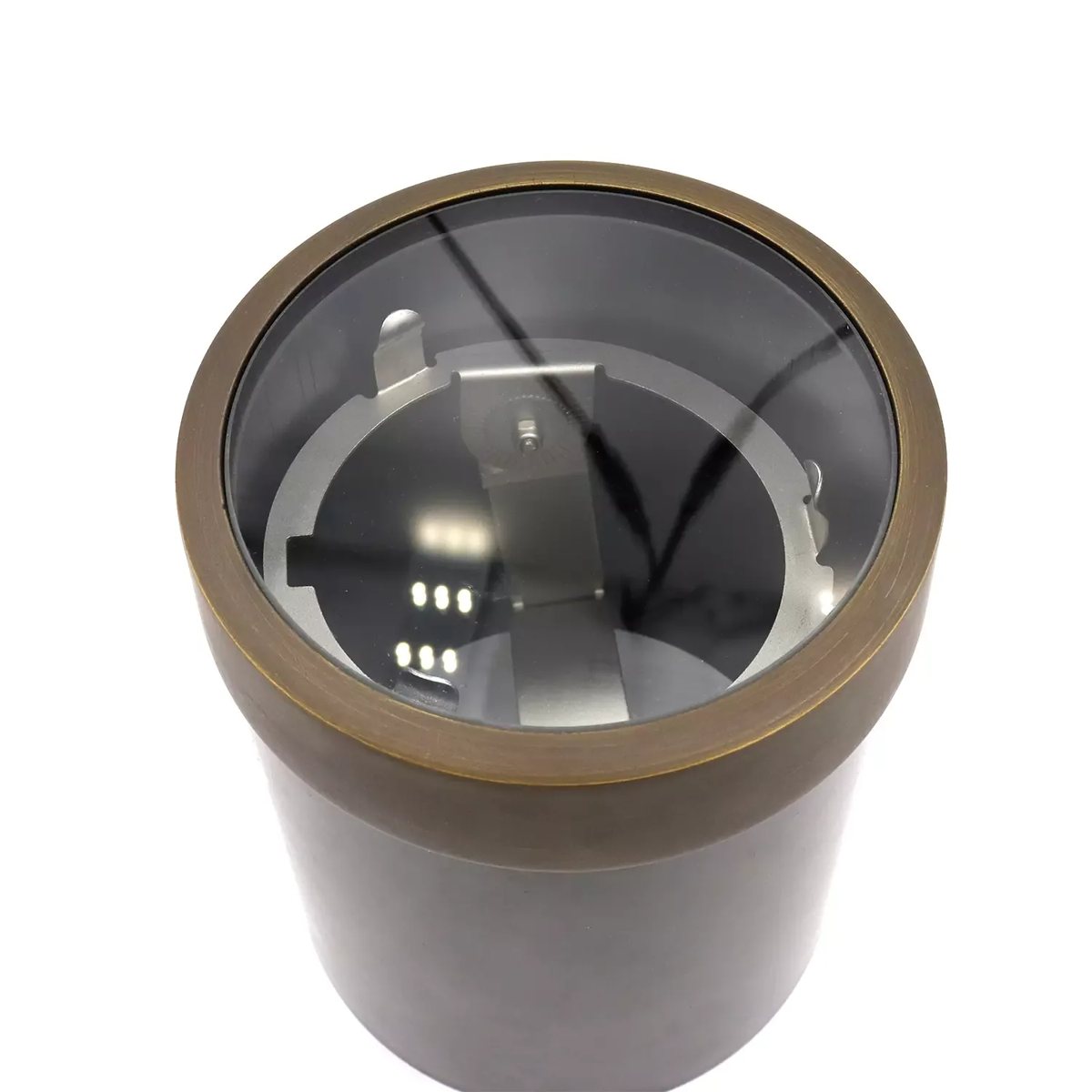

Mature specimen trees, tall facades and big architectural features need more light than an MR16 well light can provide. The CLS IGL07B is a flat top in-ground well light with a solid cast brass surface ring over a PVC housing, built around a standard PAR36 socket.
When should I choose a PAR36 well light over an MR16 one?
Go to PAR36 when the target is tall or wide enough that a smaller lamp leaves the top in the dark. The socket takes a PAR36 LED up to 17 watts or a halogen up to 100 watts, which is a large step up in output from an MR16 fixture.
Will a 5.75 inch flat top sit level with pavers?
The flat brass top keeps a low profile, and CLS specifies a heat resistant tempered lens rated for foot traffic, so the fixture can live in a walkway or patio as well as a lawn. Set it level with the surrounding grade.
Can I cut glare on a busy courtyard?
CLS lists clear or frosted tempered glass and a hex louver option. The louver helps when people walk directly over or past the fixture. It is rated IP65 and comes with a 72 inch lead in Antique Bronze.
Specifications
| CLS part number | IGL07B |
|---|---|

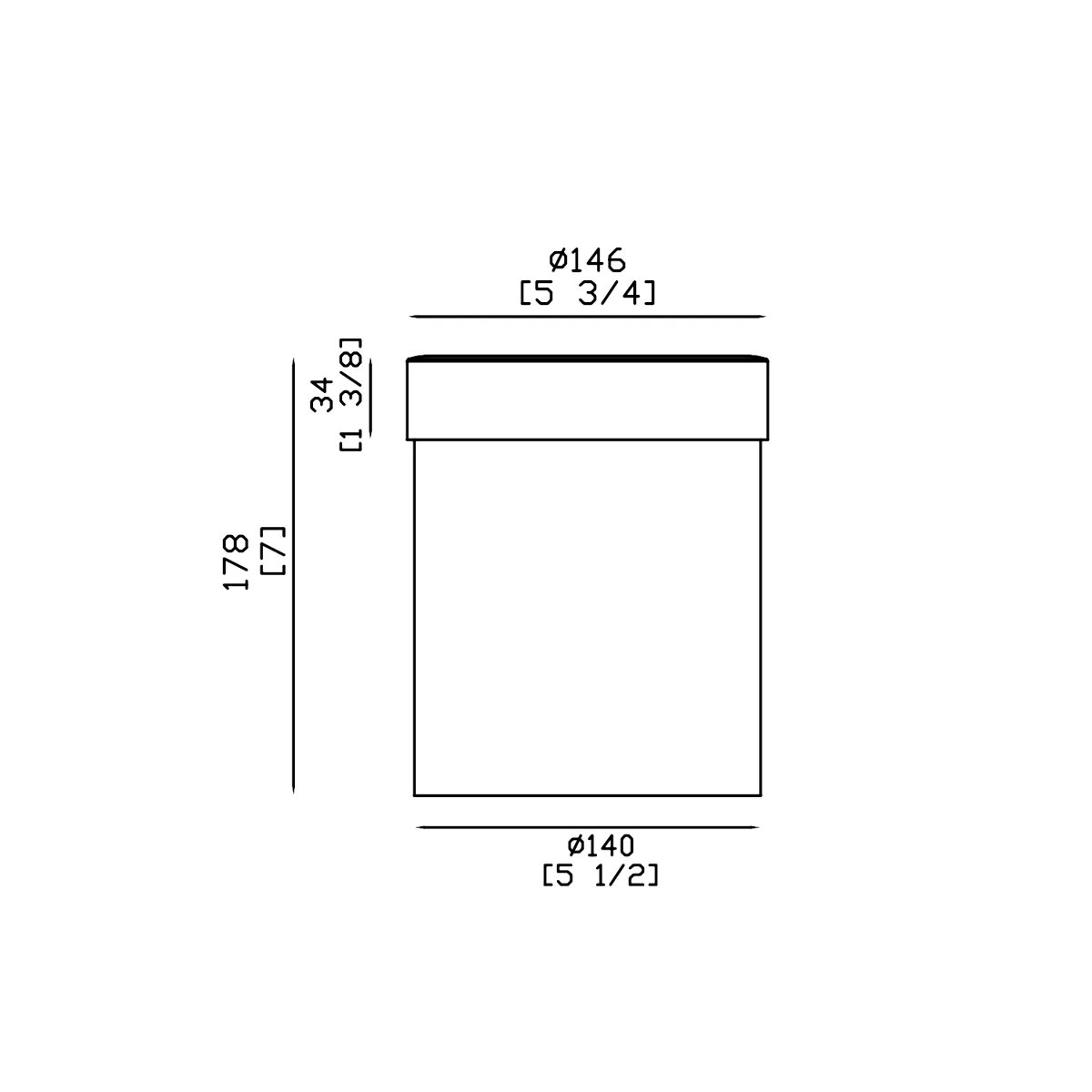

| Size | 7″ H x 5.75″ W |
| Construction | PVC housing with solid cast brass flat top |
| Finish | Antique Bronze |
| Socket | Standard PAR36 |
| Lamp | PAR36 LED, max 17W, or halogen, max 100W |
| Lens options | Clear or frosted tempered glass, hex louver |
| Ingress rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Compare MR16 and PAR36 models in our in-ground well lights collection, and check a high wattage run with the low voltage wire calculator.
