CLS HL03A 13″ Solid Cast Aluminum LED Landscape Light (2.5W)

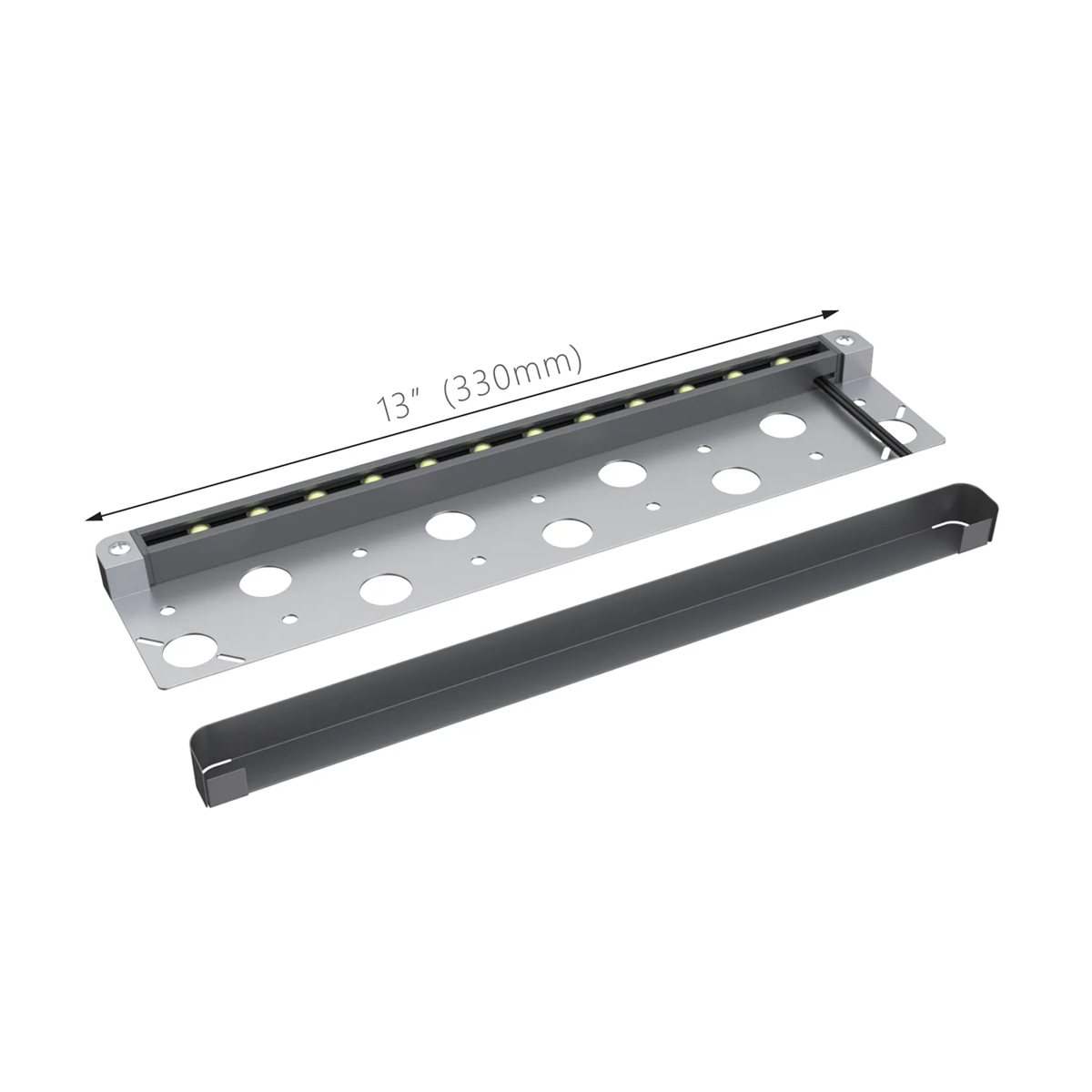

Long runs of seat wall and wide stone steps need a wash that reaches across the full face without a row of bright spots. The CLS HL03A is a 13 inch long, 0.75 inch tall hardscape light in die-cast aluminum, producing about 130 lumens at 2700K from 2.5 watts.

Does the longer body change how many fixtures a wall needs?

It does. Each HL03A spreads light along 13 inches of cap, so a long wall can usually be covered with fewer units than the 7 inch HL02A would need. Mock up one fixture at night before locking in spacing, because stone texture and cap overhang change how far the wash travels.

How does it mount under an existing cap?

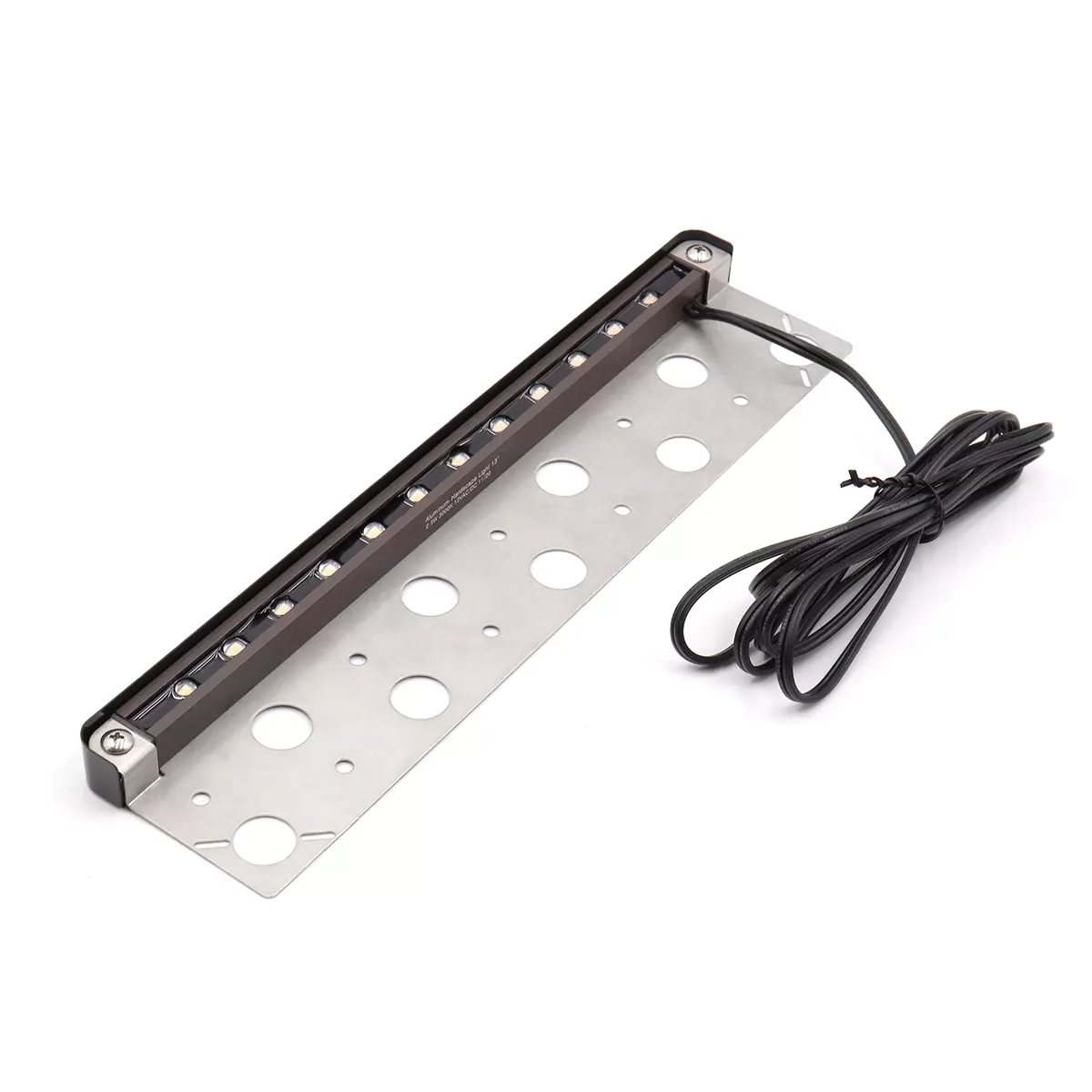

An included stainless steel plate can be bent or trimmed to suit the joint, so the HL03A fits retrofits under existing caps and treads as well as new walls.

Will output stay consistent along the run?

It runs on 12 volts AC or DC. Keep long runs within the transformer and cable capacity so the last fixture matches the first. The housing is rated IP65, CRI is 80 plus, and a 72 inch 18 gauge lead is attached.

Specifications

Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.

Compare lengths and outputs in our hardscape and step lighting collection, or use photometric design to plan a long wall.
