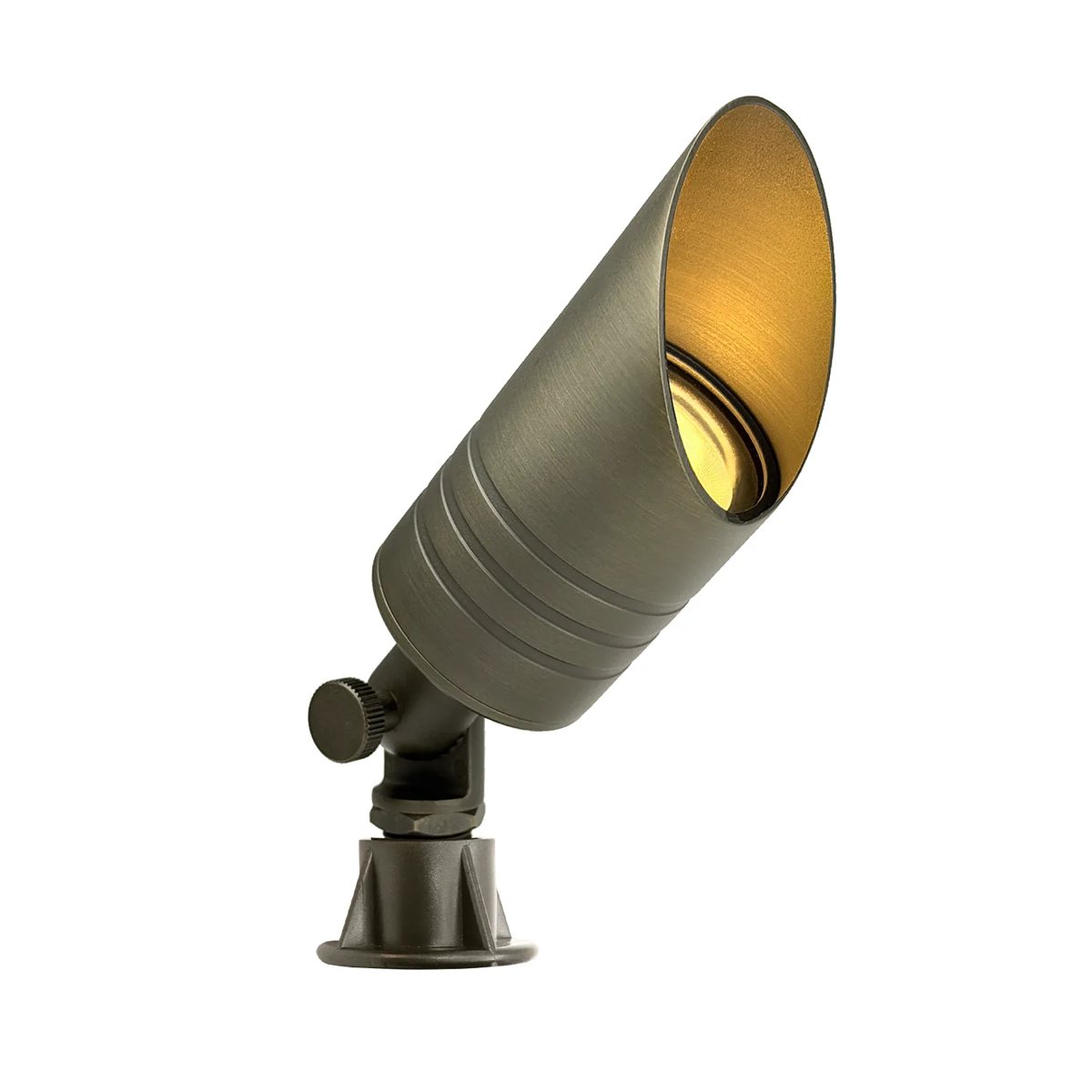

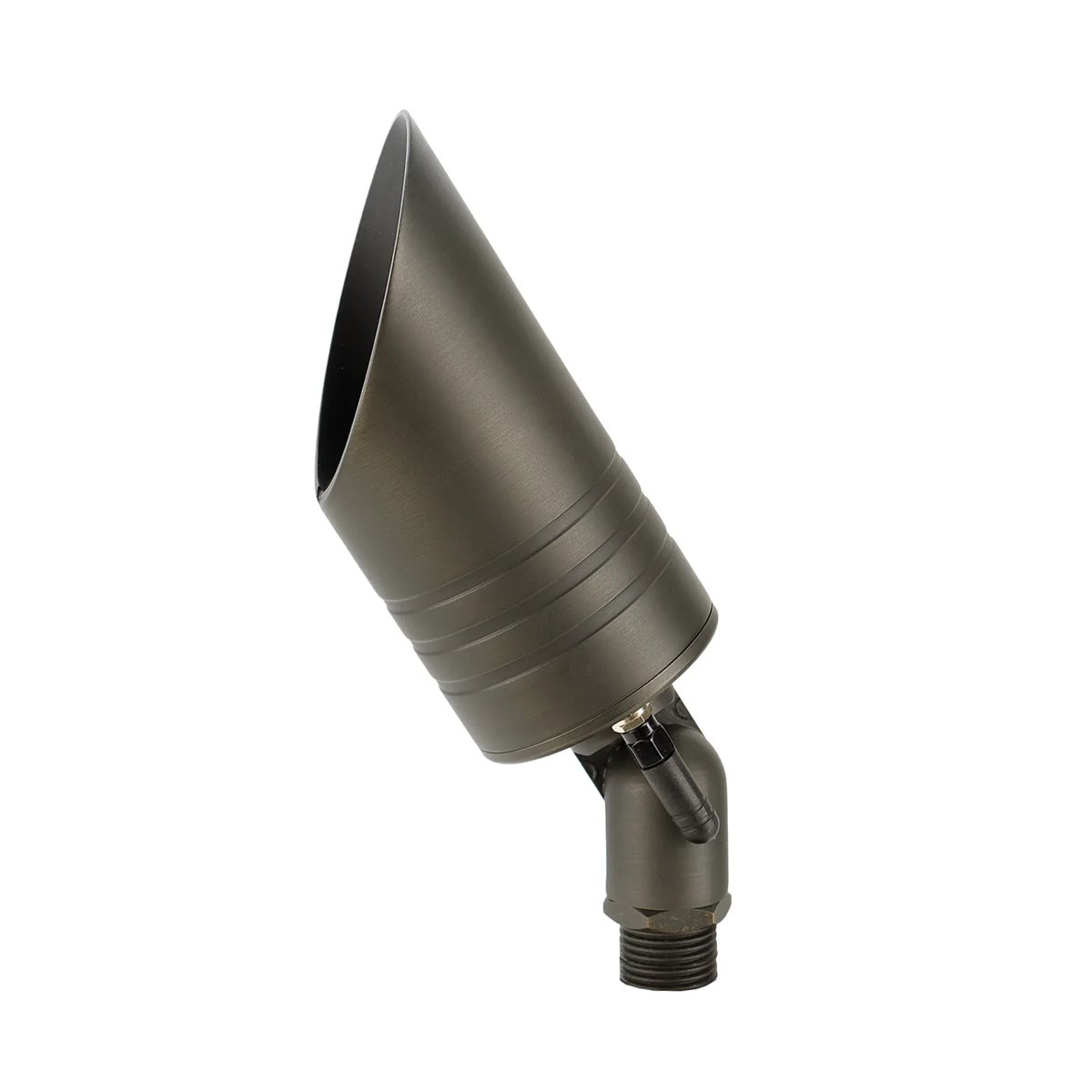

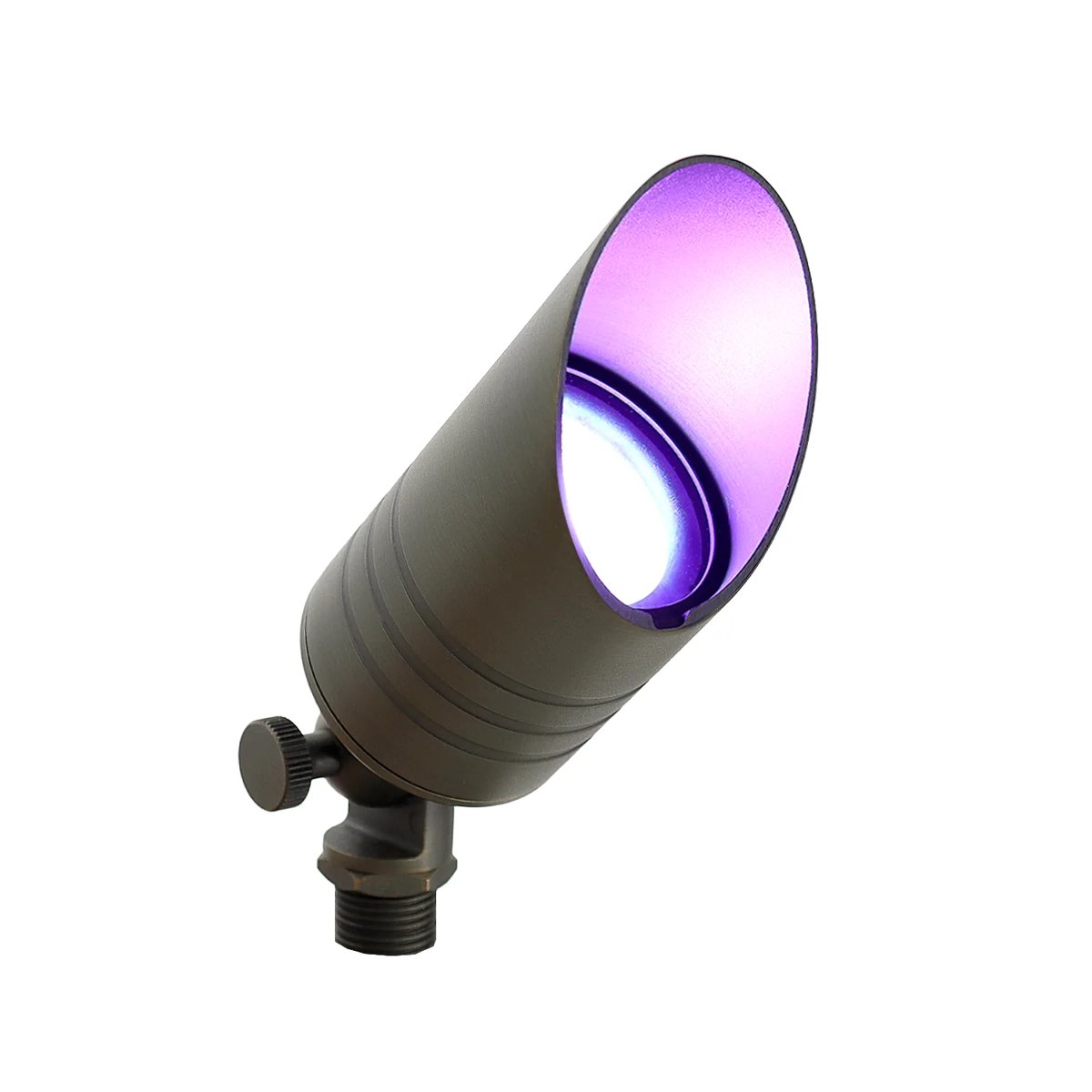

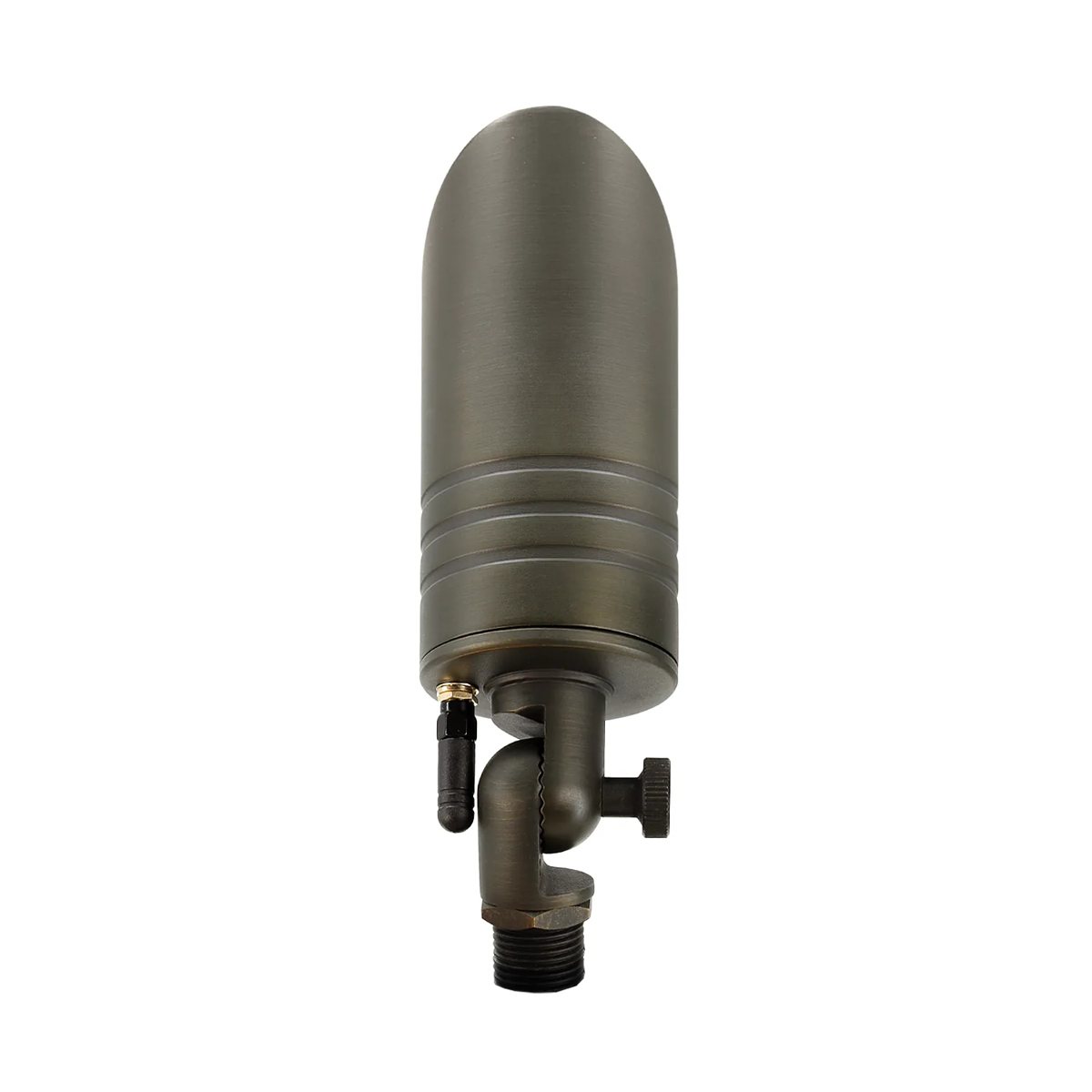

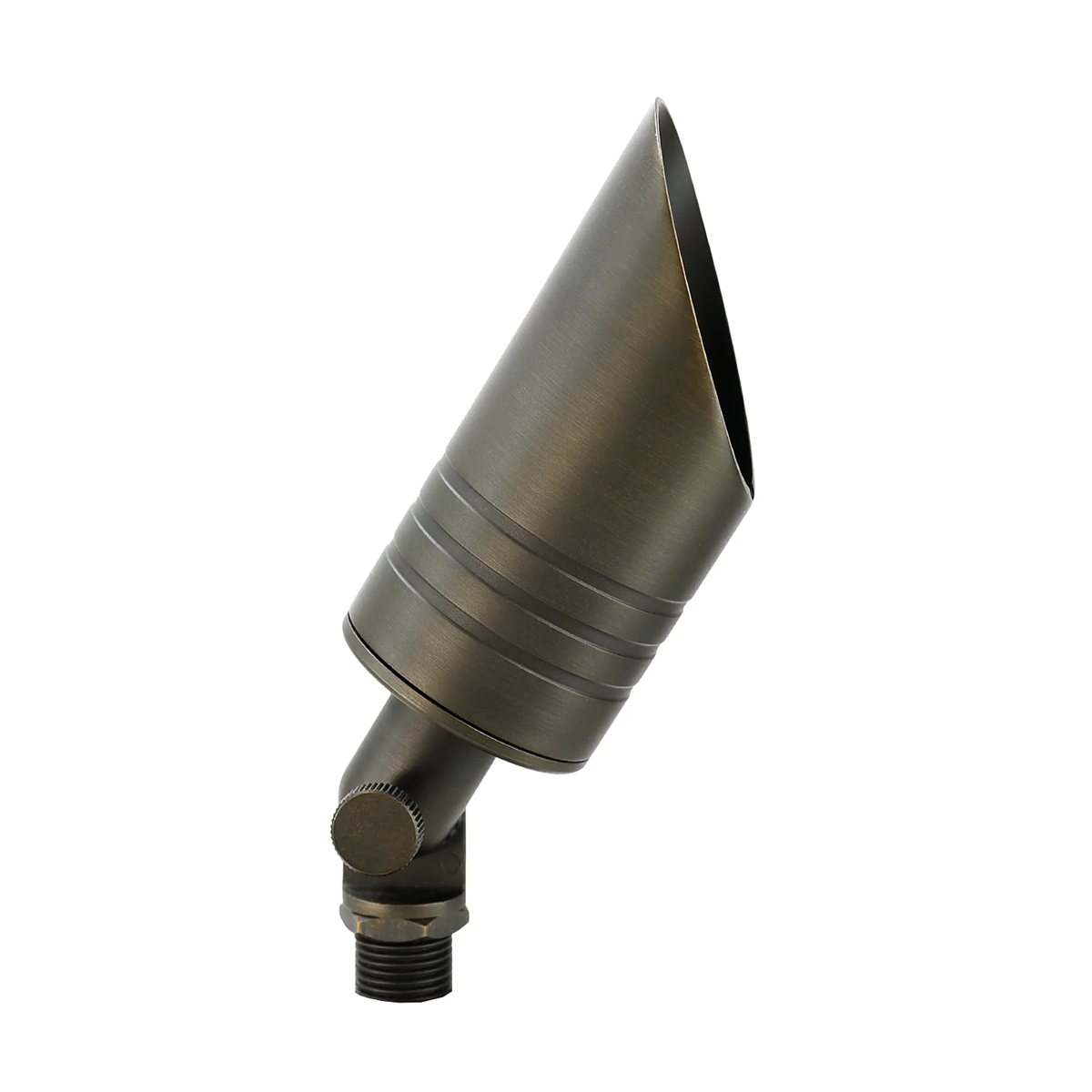

Specimen trees, columns, planters and garden art can shift from clean white light to color for a holiday or event with a smart up light. The CLS STB01B is an 8 watt integrated LED up light in die-cast brass that mixes RGB with white adjustable from 2700K to 6000K.
How does an 8 watt smart up light compare with the 25 watt flood?
The STB01B is the accent size: a single tree, a column or a sculpture. For broad walls and large canopies, a higher wattage flood covers more area.
Which beam angle should I choose?
CLS lists 24, 36 and 60 degree versions. Use 24 degrees for tall narrow targets such as palms or columns, 36 degrees for medium trees, and 60 degrees for wide shrubs or a short wall.
How is it controlled and powered?
Bluetooth control handles color and white tuning with dimming from 1 to 100 percent. The fixture runs on 9 to 17 volts AC or DC, and the IP65 housing is sealed with gaskets and clear tempered glass. A 72 inch 18 gauge SPT-1W lead is attached.
Specifications
| CLS part number | STB01B |
|---|---|
| Light source | Integrated LED, RGBWW |
| Wattage | 8W |
| White color temperature | 2700K to 6000K adjustable |
| Beam angle | 24, 36 or 60 degrees |
| Control | Bluetooth |
| Dimming | 1 to 100 percent |
| Input voltage | 9 to 17V AC/DC |
| Construction | Die-cast brass |
| Finish | Antique Bronze |
| Lens | Clear tempered high temperature glass |
| IP rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
See more brass bullet up lights, and request photometric design when color scenes cover several zones.
