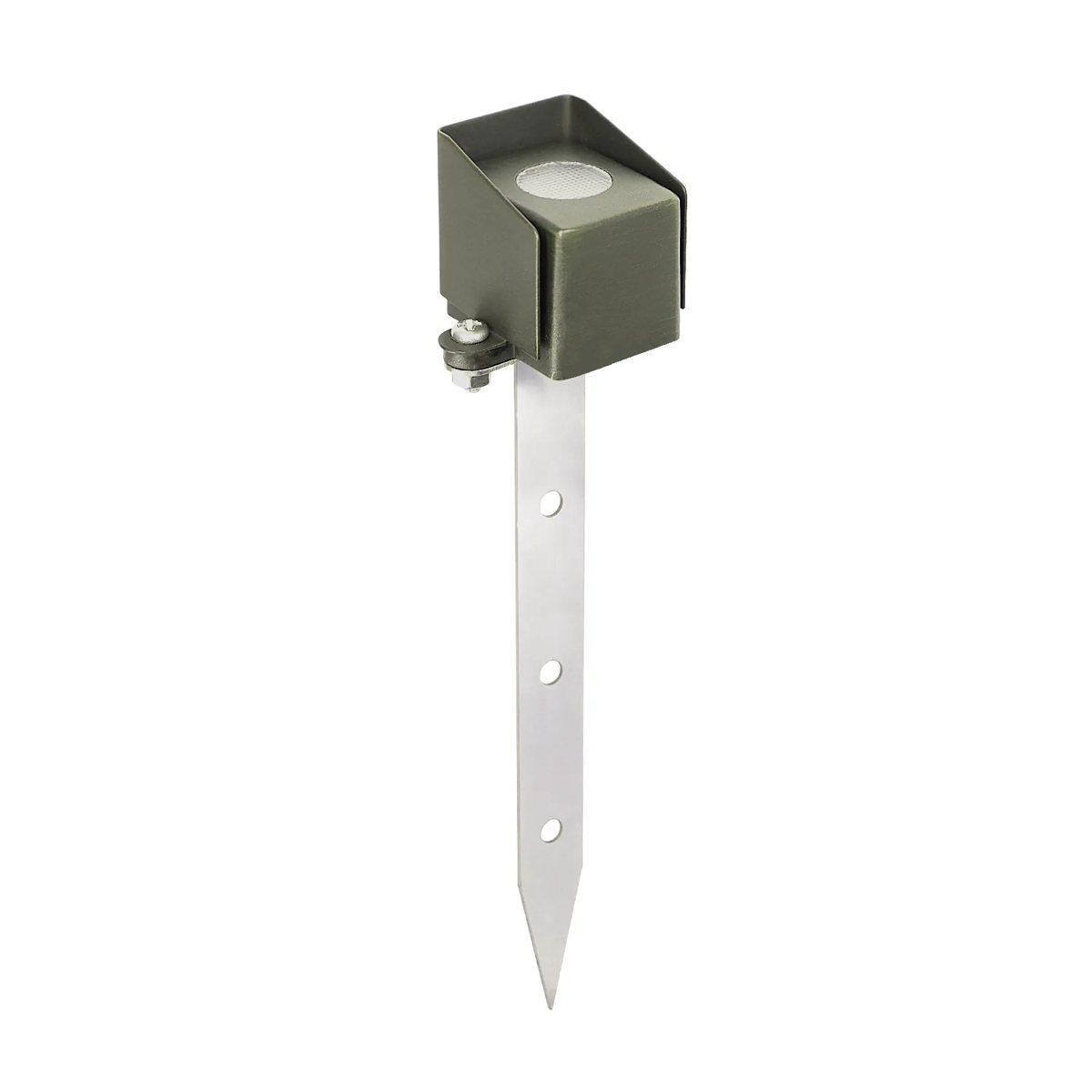

Stone walls, step faces and small garden features often need a fixture small enough to disappear while still putting a tight beam on the target. The CLS MB01B is an integrated LED mini beam light in die-cast brass with an Antique Bronze finish, supplied with a stainless steel stake.
What does a 3 watt, 45 degree beam light well?
At 240 lumens and 2700K, it suits short throws: a small statue, a boulder, a specimen shrub, a stretch of wall or the face of a step. The 45 degree beam keeps light on the feature instead of washing the whole bed.
Can the light engine be serviced?
CLS designed the connection so the light engine can be replaced without disturbing the field wiring, which saves digging up connections later.
Will it hold output at the end of a run?

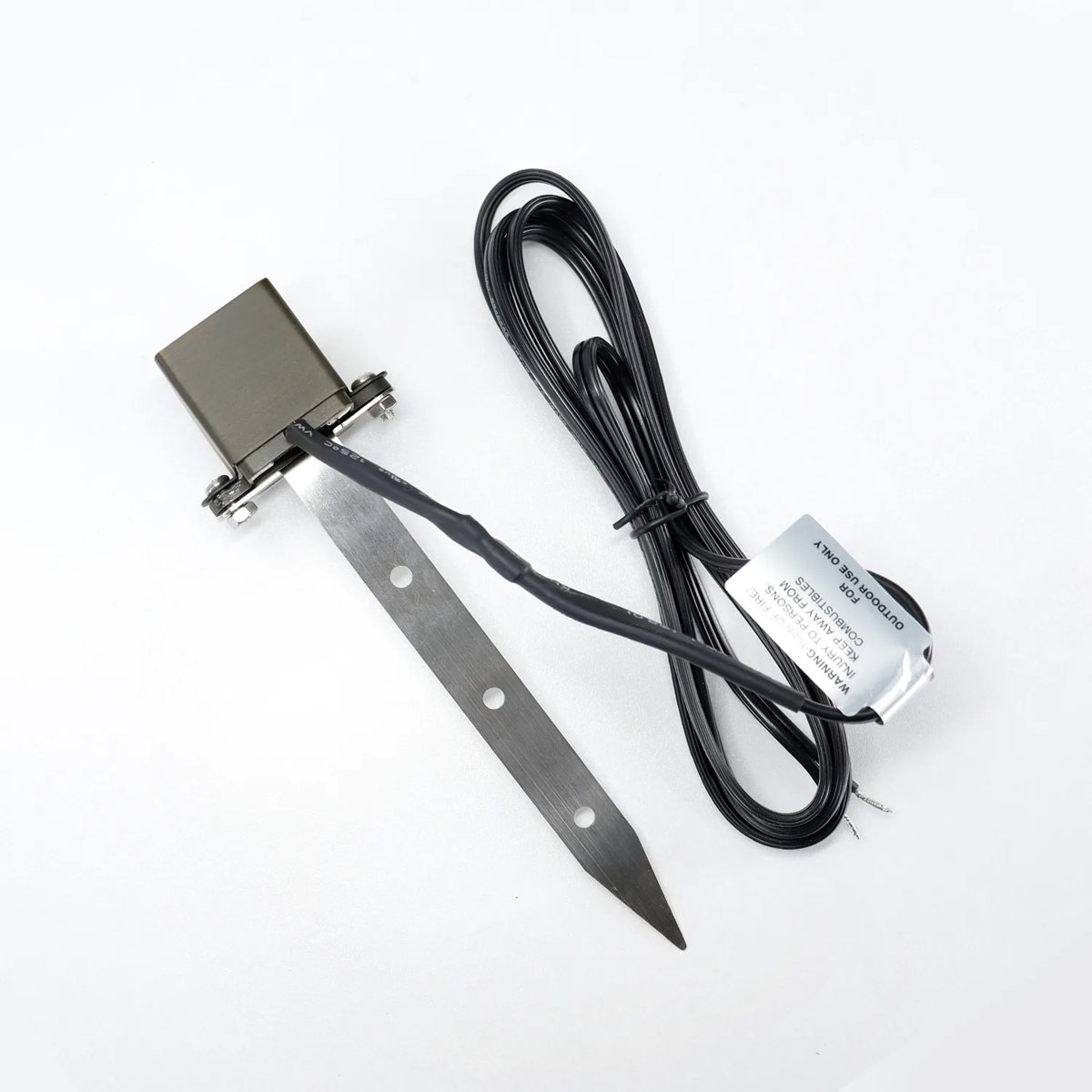

It runs on 9 to 17 volts AC or DC, which gives it tolerance for voltage drop on longer runs. The housing is IP65 rated with clear tempered glass and a 72 inch 18 gauge SPT-1W lead.
Specifications
| CLS part number | MB01B |
|---|---|
| Light source | Integrated LED |
| Wattage | 3W |
| Lumens | 240 lm |
| Color temperature | 2700K |
| Beam angle | 45 degrees |
| Input voltage | 9 to 17V AC/DC |
| Construction | Die-cast brass |
| Finish | Antique Bronze |
| Lens | Clear tempered high temperature glass |
| IP rating | IP65 |
| Lead wire | 72″ SPT-1W 18 gauge |
| Included | Stainless steel stake |
Specifications are published by CLS Outdoor Environments and are subject to change without notice. Confirm critical dimensions and ratings with LED Spot before ordering.
Browse more step and accent lighting, and use our photometric design service to place small accents along walls and steps.
